Inovance MS1 Series User Manual

4 Cable Information
- 51 -

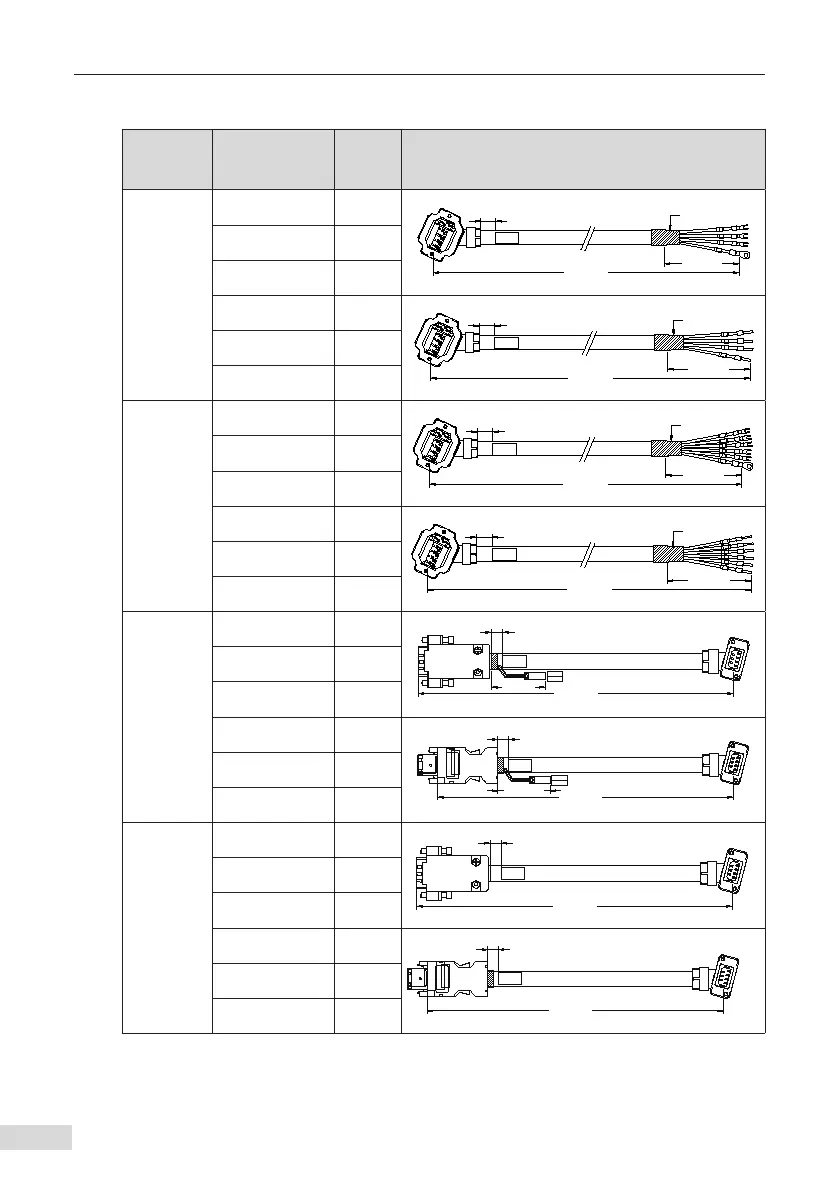

4.2 Outline Drawing of Cables with Front Outlets
Cable Type Cable Model
Cable
Length
L (m)
Appearance
Power cable
(without
brake)
S6-L-M007-3.0 3.0
L±30mm
100±10mm
V
U
W
PE
55±5mm
Φ8.0*30mm
S6-L-M007-5.0 5.0
S6-L-M007-10.0 10.0
S6-L-M107-3.0 3.0
L±30mm
100±10mm
V
U
W
PE
55±5mm
Φ8.0*30mm
S6-L-M107-5.0 5.0
S6-L-M107-10.0 10.0
Power cable
(with brake)
S6-L-B007-3.0 3.0
55±5mm
Φ8.0*30mm
L±30mm
200±10mm
V
W
PE
U
BK
-
BK
+
S6-L-B007-5.0 5.0
S6-L-B007-10.0 10.0
S6-L-B107-3.0 3.0
55±5mm
Φ8.0*30mm
L±30mm
200±10mm
V
W
PE
U
BK
-
BK
+
S6-L-B107-5.0 5.0
S6-L-B107-10.0 10.0
Absolute
encoder
cable
S6-L-P024-3.0 3.0
L±30 mm
End AEnd B
55±5 mm
90±5 mm
2-Black
1-Brown
End C
S6-L-P024-5.0 5.0
S6-L-P024-10.0 10.0
S6-L-P124-3.0 3.0
L±30 mm
End A
End B
55±5 mm
200±10 mm
2-Black
1-Brown
End C
SUNCH
U
SC-06
S6-L-P124-5.0 5.0
S6-L-P124-10.0 10.0
Incremental
encoder
cable
S6-L-P014-3.0 3.0
L±30 mm
End A End B
55±5 mm
S6-L-P014-5.0 5.0
S6-L-P014-10.0 10.0
S6-L-P114-3.0 3.0
L±30 mm
End AEnd B
55±5 mm
SUNCH
U
SC-06
S6-L-P114-5.0 5.0
S6-L-P114-10.0 10.0
