6 Assembly/Disassembly Guide
6.1 Introduction
Please take a moment and read this manual before you start assembling or
disassembling this enclosure. Often times, rushing into unit installation can result in
damage to your enclosure, motherboard, and power supply.
6.2 Required tools
 Phillips screwdriver
6.3 Board Installation Steps
1. To remove the top lid, remove the screw (encircled in red) from the back, in the right
corner, see Figure 26. Push back the top lid ½ inches and after this, gently pull it up.

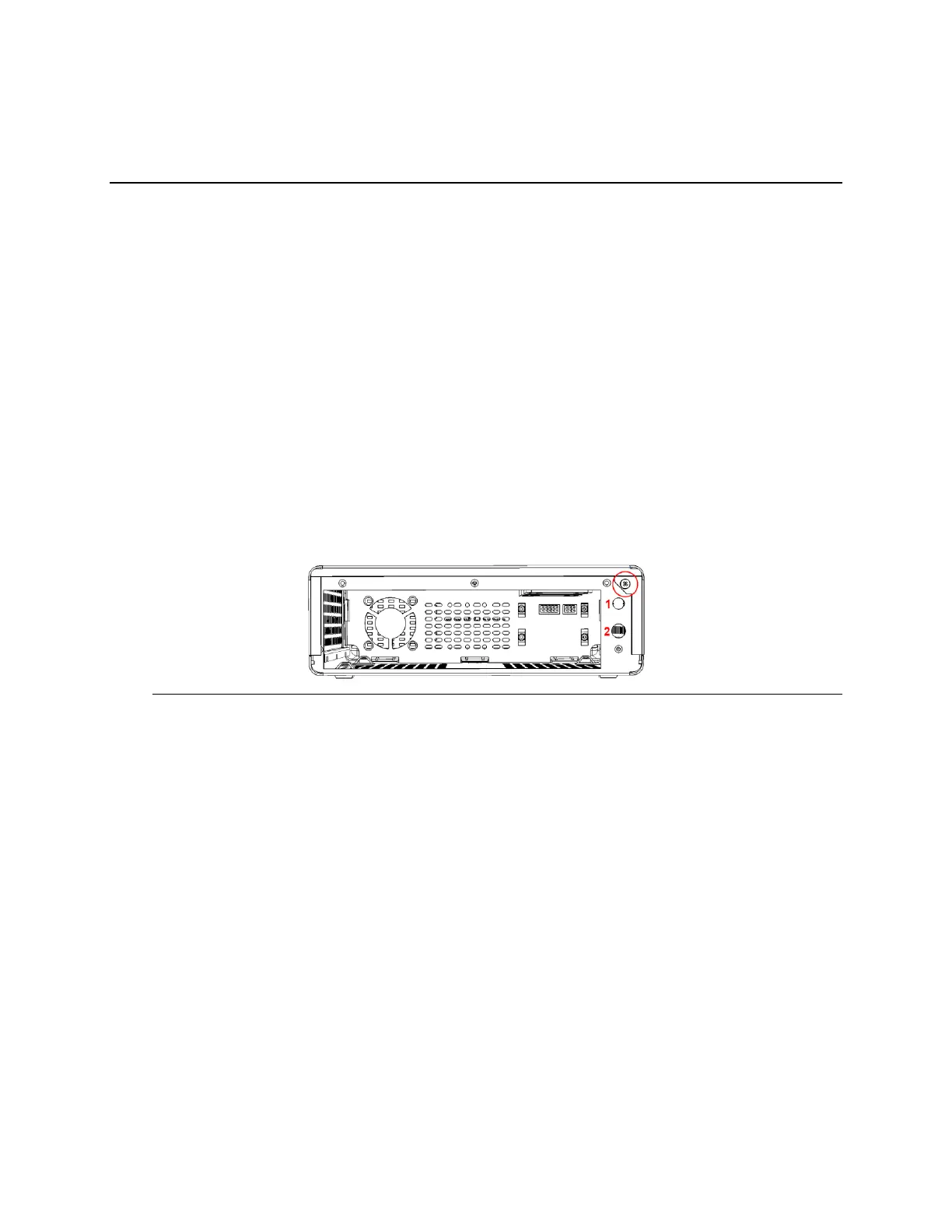

Figure 26. Removing the top lid
1 - WiFi antenna hole, 2 - DC Power jack hole
2. Install I/O motherboard shield on the back of the enclosure.
3. Install the motherboard on the base plate using four screws as shown in Figure 27.

Intel Atom N2800 Specifications

General

Processor Number	N2800
Number of Cores	2
Number of Threads	4
Base Frequency	1.86 GHz
TDP	6.5 W
Instruction Set	64-bit
Lithography	32 nm
Launch Date	Q1'12
Instruction Set Extensions	SSE2, SSE3, SSSE3
Embedded Options Available	Yes
Max Memory Size	4 GB
Number of Memory Channels	1
Processor Graphics	Intel® Graphics Media Accelerator 3650
Graphics Base Frequency	640 MHz
Graphics Max Dynamic Frequency	640 MHz
Sockets Supported	BGA559
Max CPU Configuration	1
Idle States	Yes
Intel® 64	Yes
Intel® Identity Protection Technology	No
PCI Express Revision	2.0
Cache	1 MB
Memory Types	DDR3 800
PCI Express Configurations	1x4
