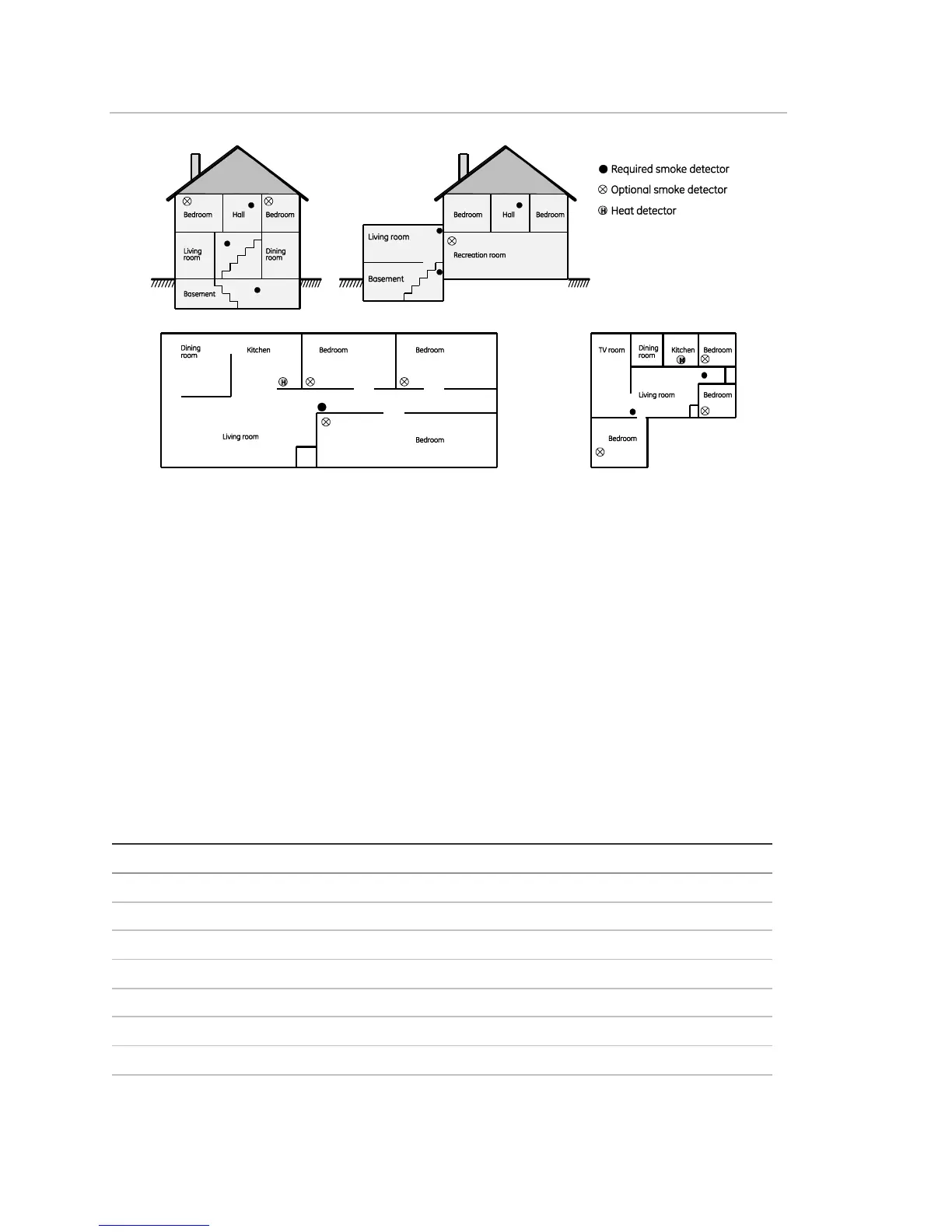

Figure 5: Smoke detector locations
Your floorplan
Use the following guidelines when drawing your floorplan:
• Show all building levels.
• Show exits from each room (two exits per room are recommended).
• Show the location of all security system components.
• Show the location of any fire extinguishers
Sensor and module locations
Use Table 14 below and Table 15 on page 42 to list your sensor and module
locations.
Table 14: Sensor locations
Sensor number
Sensor name
Sensor type
Location
Example
Front door
Door/window sensor
Front door
1.
2.
3.
4.
5.
6.
7.

Interlogix Simon XT Specifications

Power

power requirements	6V nominal
standby current	30mA (10mA in PowerSave Mode)
peak current	1.7 A

Operating Environment

operating temperature	32 to 120°F (0 to 49°C)
storage temperature	-30 to 140°F (-34 to 60°C)
max. relative humidity	90% non-condensing

Dimensions

height	4 1/16 in.
width	1 7/8 in.
