3.

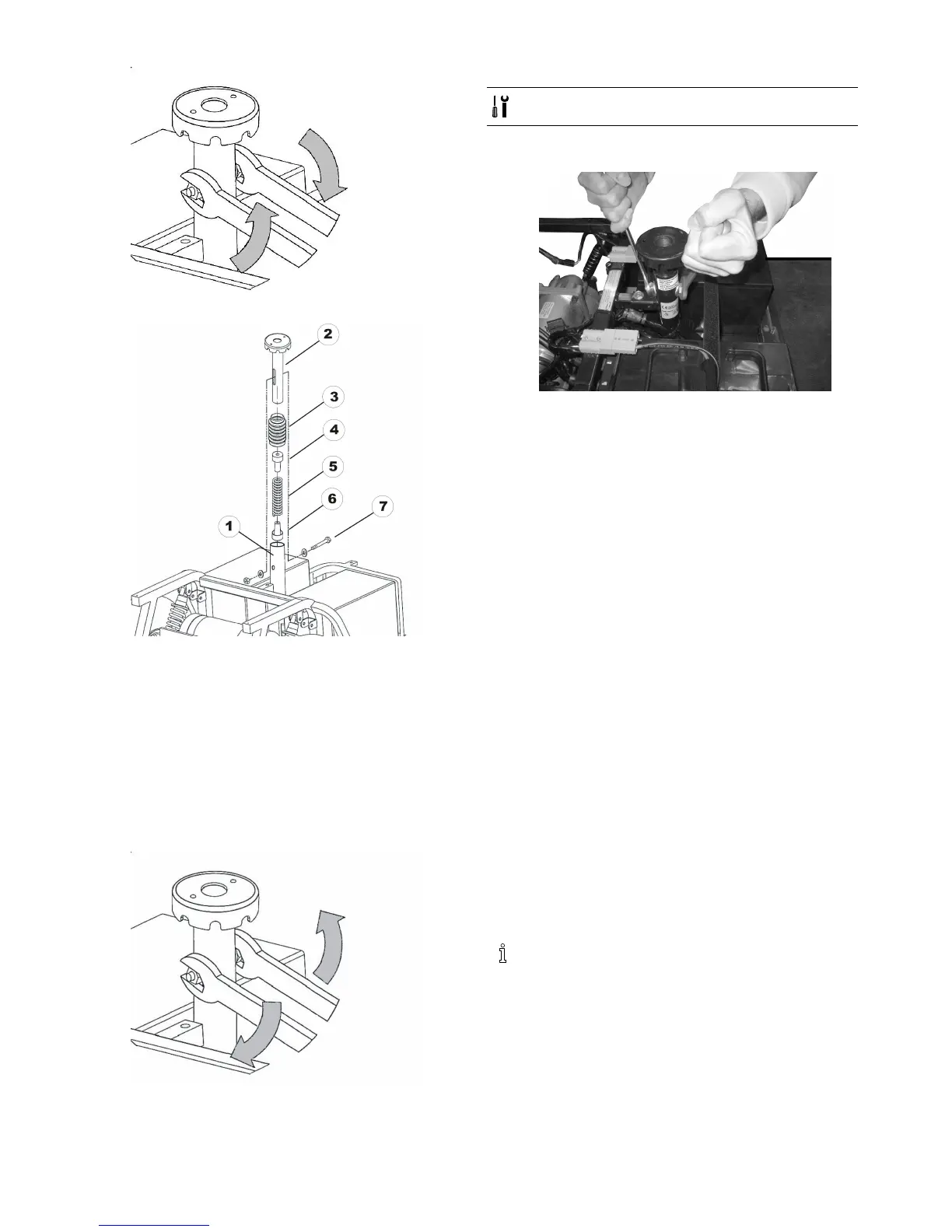

Loosensecuringboltofseatsupporttube.
4.
Removebolt(7),nutandwashers.
5.Removeseatsupporttube(2)fromreceptacletube(1).
6.Removebellows(3)includingspring(5)andplasticend
pieces(4and6).
7.Fitplasticendpieces(4and6)tonewspring.
8.Greasespringgenerously.Thespringshouldbecovered
completely.
9.Assemblebellows(3).
10.Installbellows(3)includingthespring(5)andtheplastic
endpieces(4and6).
11.Insertseatsupporttube(2)intoreceptacletube(1)and
pressdowngently.
12.Repositionbolt(7),nutandwashers.
13.
Firmlytightensecuringboltofseatsupporttube.
14.Repositionseat.
4.11.2Replacingseatsupporttube
•17mmwrench(2x)
1.Removeseat.
2.Removeshroud.See“Removingshroud” .
3.
Removesecuringbolt,nutandwashersofseatsupport
tube.
4.Replaceseatsupporttube.
5.Adjustseatheight.
6.Reinsertsecuringbolt,nutandwashersandtighten.
4.12Accessories
4.12.1Accessorieslist
•Mirror(rightorleft)
•Safetyvest
•Warningtriangle
•Solidtires(withoutrim),13inchgreyorblack
•Seatlifterkit,electrical,12cm
•Seatsuspensions
•Frontbumper
•Rearbumper
•Personalkey
•Crutch&Caneholder
•Lockablestoragebox,front
•Lockablestoragebox,rear,incl.clutchholderbracket
•Rearbasket
•Backrestbag
•Hourcounter
•Rollatorholderincl.crutchholder
•Windscreen
•Seatbelt
•Oxygenbottleholder
•Canholder
•Off-boardchargerkit
•Covers:Storagecover(Fullscootercover),SeatCover
(Rain&Dirtprotection)
Theinstallationinstructionsforadditionalaccessories
areavailableatyourInvacare®providerordirectly
fromInvacare®.
