GENSET AND BATTERY PACK
4271491-Second Edition 3-17
3
Radiator (Diesel Models)
Removal
See Figures 3-19 through 3-22.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely.
3. Raise the hood.
4. Remove cowlings. (See “Cowlings” on page 7-33.)
5. Remove starter battery. (See “Starter Battery” on
page 3-43.)
6. Drain cooling system, 3 qt (2.8 L). Open petcock
located on bottom of radiator, remove radiator cap,
and drain coolant into a clean container.
Label all hoses before removing to ensure correct
installation.

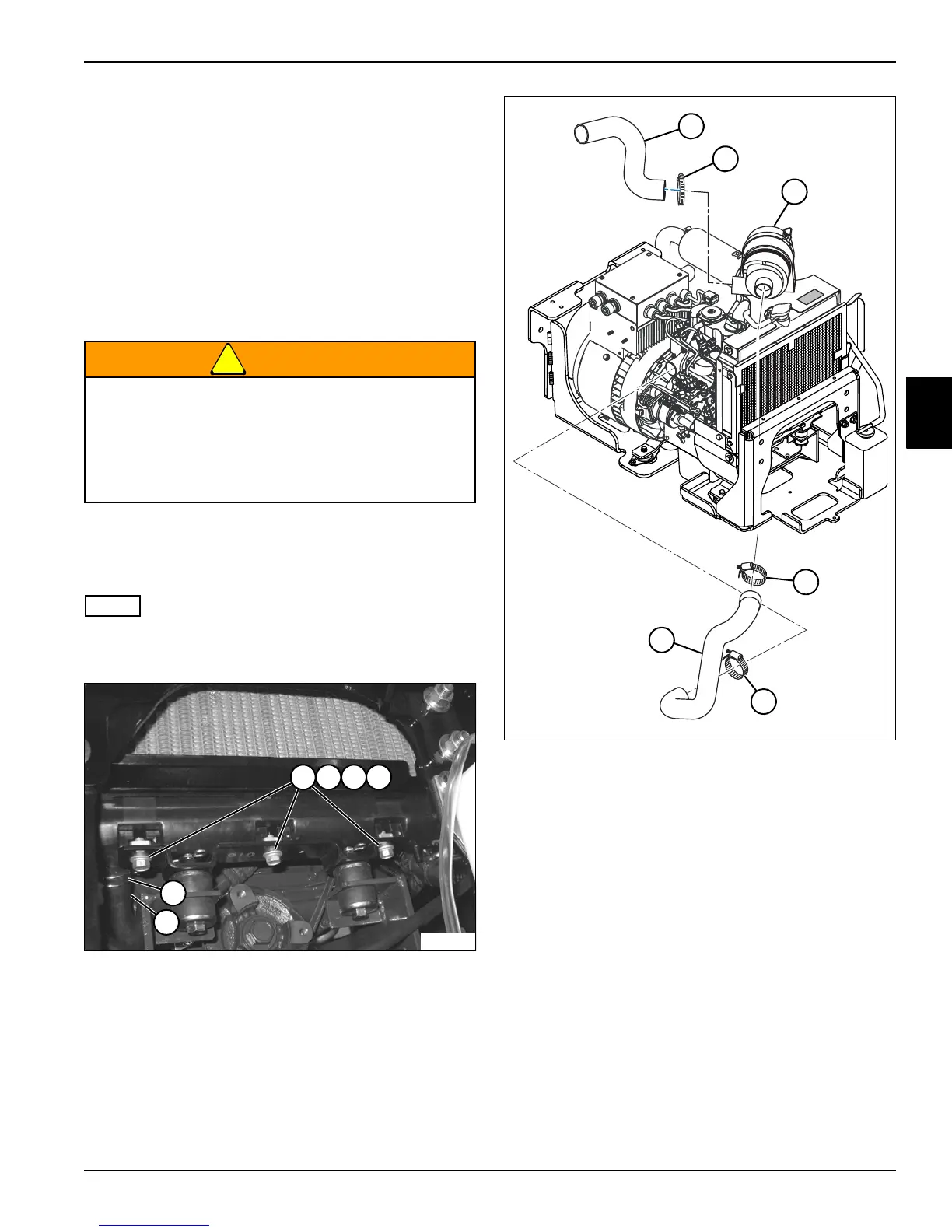

Figure 3-19
7. Loosen hose clamp (5) and remove lower radiator
hose (6) from radiator.
8. Remove screws (1), lock washers (2), flat washers
(3), and nuts (4).
Figure 3-20
9. Loosen hose clamp (8), and remove air intake hose
(7) from air cleaner (9).
10. Loosen hose clamps (10), and remove the air
cleaner-to-air intake hose (11).
Never remove the radiator cap when the coolant
is hot. The engine must be shut down and cooled
before the radiator cap is removed. Very hot
coolant will be sprayed from the radiator if the
cap is loosened before the engine has cooled.
Serious personal injury can occur.
To Next Page
