GENSET AND BATTERY PACK
4271491-Second Edition 3-29
3
Disassembly and Assembly

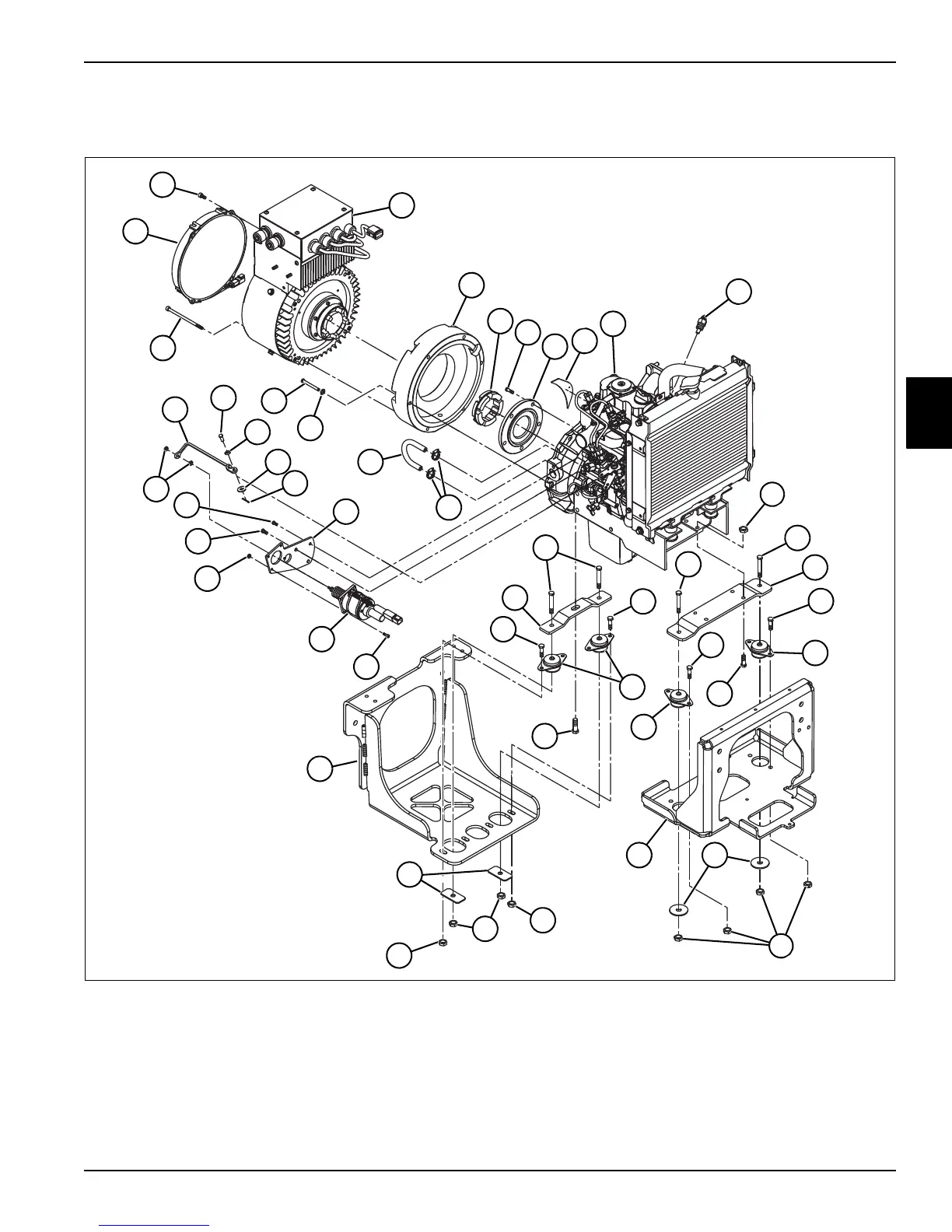

See Figure 3-45.
Figure 3-45
1 Fan 10 Temperature Sender 19 L.S. Engine Carrier 28 Diesel Throttle Actuator 37 Flat Washer
2Screw (4) 11Nut (4) 20 Screw 29 Nut (4) 38 Cotter Pin
3 Diesel Generator Assembly 12 Screw (2) 21 Isolation Mount (2) 30 Screw (2) 39 Actuator Bracket
4 Generator Flange 13 L.S. Engine Mount 22 Screw (2) 31 Screw 40 Hose Clamp (2)
5 Blind Coupling 14 Screw (8) 23 R.S. Engine Mount 32 Nut (2) 41 Hose
6 Screw (5) 15 Isolation Mount (2) 24 Nut (2) 33 Governor Linkage Arm 42 Lock Washer (4)
7Coupling Shaft 16 Screw 25 Isolation Washer (2) 34 Screw (4) 43 Screw (4)
8 Bell Housing Cover Plate 17 Isolation Washer (2) 26 R.S. Engine Carrier 35 Clevis Pin
9 Engine 18 Screw (10) 27 Screw (4) 36 Nylon Washer
TN4572
34
12
15
43
14
13
19
14
23
14
21
15
20
26
24
18
41
35
36
30
29
39
32
27
28
38
31
1
2
16
40
42
3
4
25
18
37
33
5
6
7
8
9
10
12
11
22
14
17
18
