GENSET AND BATTERY PACK
4271491-Second Edition 3-43
3
Starter Battery
Removal and Installation

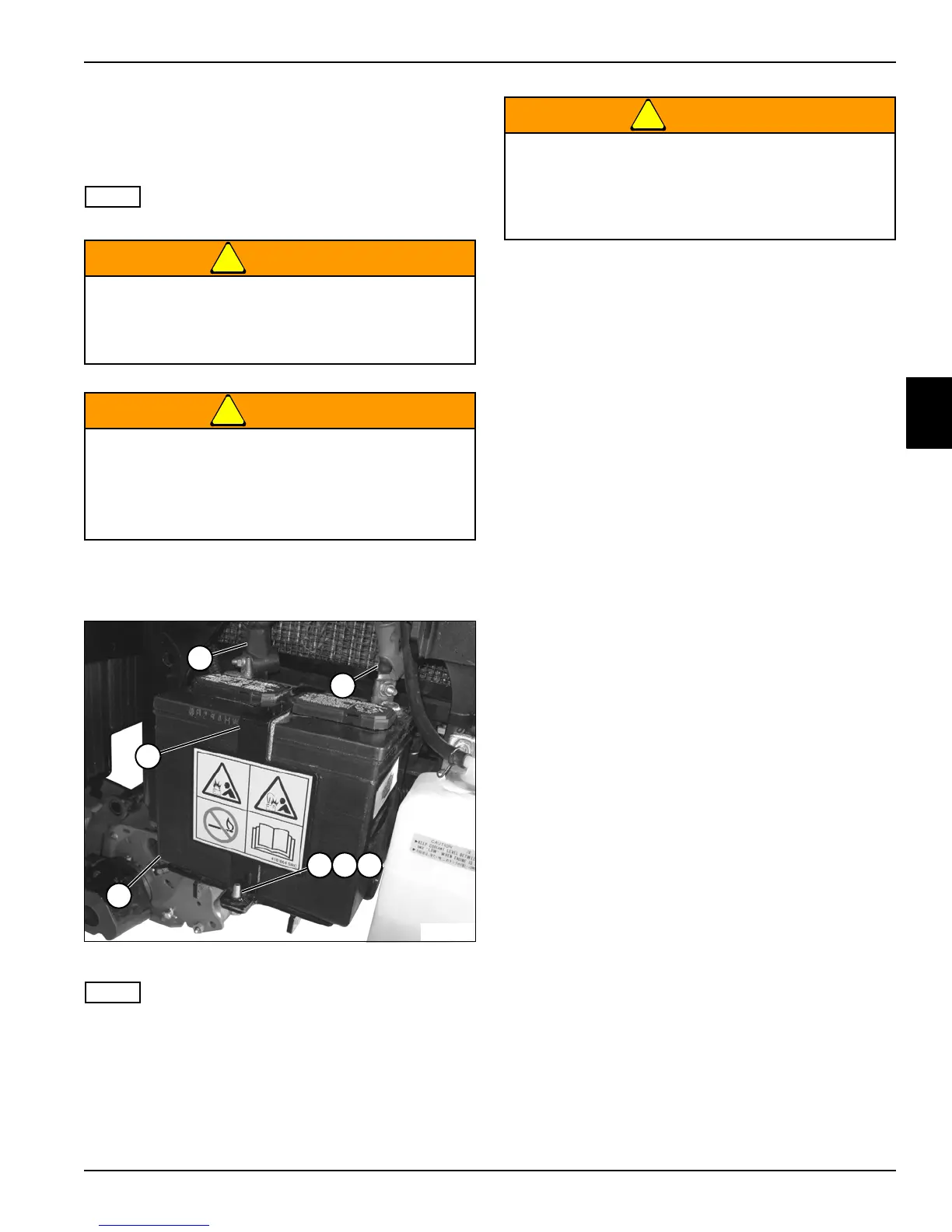

See Figure 3-72.
Diesel model is shown; gasoline model is similar.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 3-72
Label all wires before disconnecting to ensure correct
installation.
2. Disconnect the negative (–) battery cable (1).
3. Disconnect the positive (+) battery cable (2).
4. Remove two screws (3), lock washers (4), flat
washers (5), and starter battery cover (7).
5. Remove 12V starter battery (6).
Installation Notes
• Install starter battery by reversing the order of
removal.
• Route battery cables between the starter battery and
the machine, avoiding pinch points.
Be sure that the key switch is off, all electrical
accessories are turned off, and the 12-volt and
48-volt power connectors are disconnected
before starting work on vehicle.
• Battery posts, terminals, and related
accessories contain lead and lead
compounds. Wash your hands after handling.
• Always wear eye protection when servicing
battery.
Always disconnect the negative terminal first and
positive terminal last. Connect positive terminal
first and negative terminal last. Use care when
testing live circuits to prevent arcing. Arcing
could result in death or serious injury.
