GENSET AND BATTERY PACK
4271491-Second Edition 3-23
3
Fuel Pump (Diesel Models)
Removal and Installation

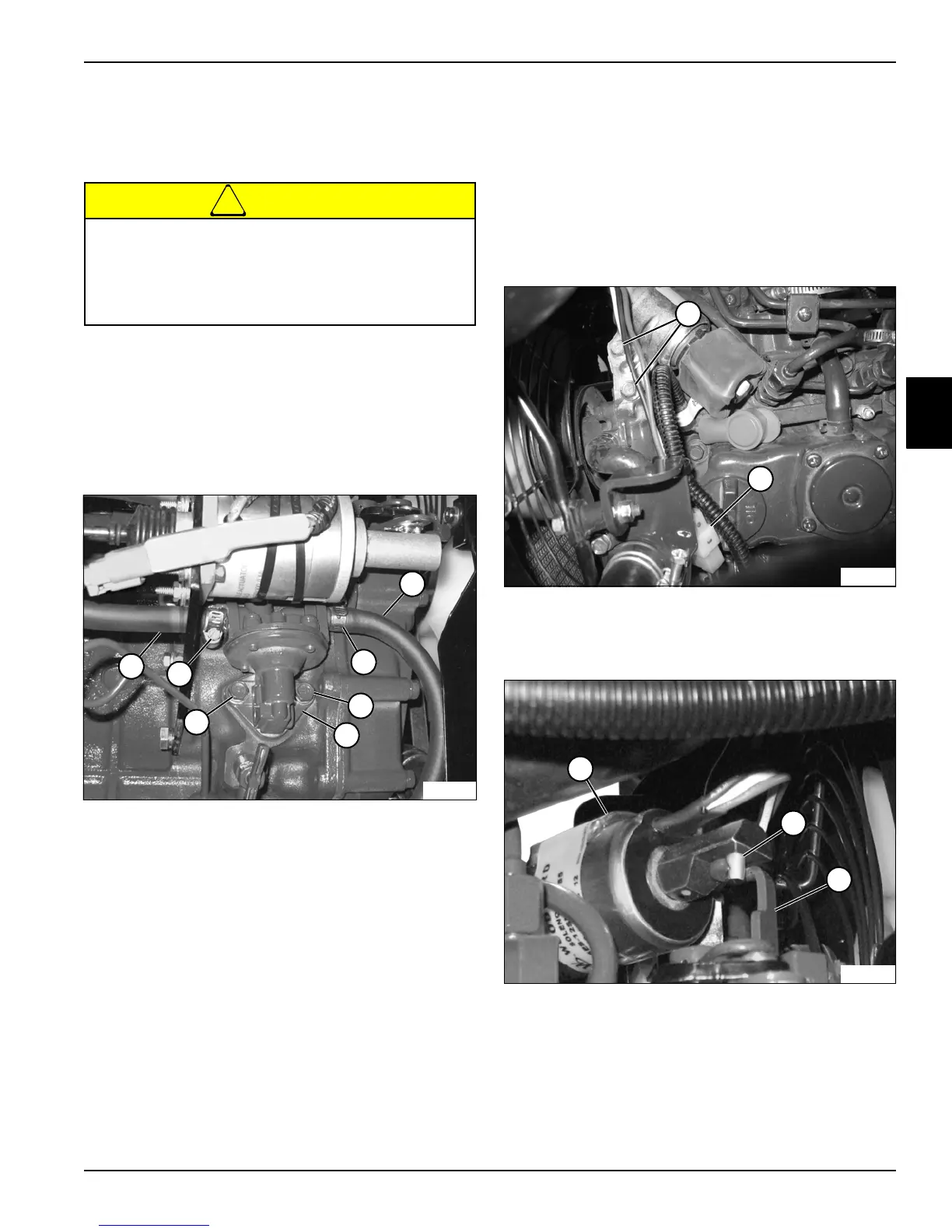

See Figure 3-30.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely.
3. Raise the hood.
4. Turn the fuel shutoff valve clockwise until valve
bottoms lightly. Valve is located on fuel filter.
Figure 3-30
5. Loosen fuel hose clamps (2 and 4).
6. Disconnect fuel hoses (1 and 3) from fuel pump (6).
Use a suitable container to catch the fuel that will
flow from the fuel hoses. Cap the hoses.
7. Remove screws (5).
8.Remove fuel pump (6).
Installation Notes
• Install fuel pump by reversing the order of removal.
• Inspect the fuel pump gasket for any damage and
replace if necessary.
Fuel Shutoff Solenoid (Diesel Models)
Removal and Installation
See Figures 3-31 and 3-32.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely.
3. Raise the hood.
Figure 3-31
4. Tag and disconnect wire connector (2).
5. Remove screws (1).
Figure 3-32
6. Disengage fuel shutoff solenoid pin (4) from throttle
lever (5) and remove fuel shutoff solenoid (3).
Installation Note
Install fuel shutoff solenoid by reversing the order of
removal.
Diesel fuel is highly flammable. Handle with care.
Use an approved container with a spout that will
fit inside the fuel filler neck. Avoid using
unapproved containers to transport fuel. Keep all
fuel containers clean and closed when not in use.
