8 MAINTENANCE AND LUBRICATION
8.17 WHEEL ALIGNMENT PROCEDURE _______________________________________

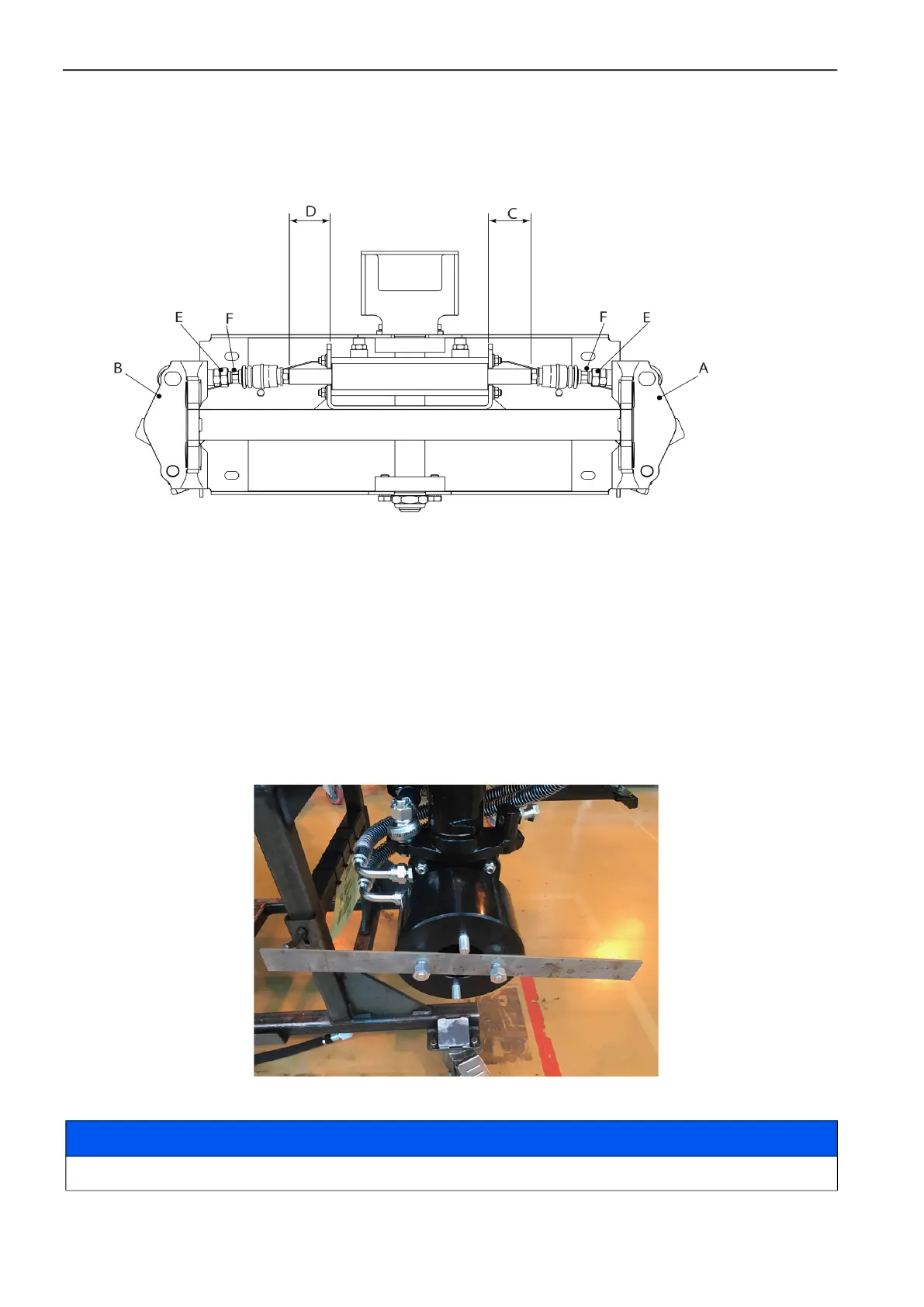

1. Park machine on a flat and level surface, turn the steering wheel so that the steering ram shafts are equal
on both sides of the ram (Dimensions ‘C’ and ‘D’ below).
2. Fully lower the cutting units/decks to the ground, engage the parking brake, reduce engine speed to idle
and stop engine then remove key from the ignition switch.
3. Loosen the four-wheel nuts on both rear wheels.
4. Lift the rear of the machine at the rear axle, and support it close as possible to the wheel motors with the
appropriately rated axle stands.
5. Remove both rear wheels.
6. Using two wheel nuts (With flat sides towards plate) fasten each alignment tool (Part Number 4390586)
plate to each rear wheel hub (See below)
NOTICE
Alignment tool in illustration may vary to tool provided under part number 4390586.
To Next Page
