CONTROLS 5
5.4.3 I/O DIAGNOSTICS_____________________________________________________

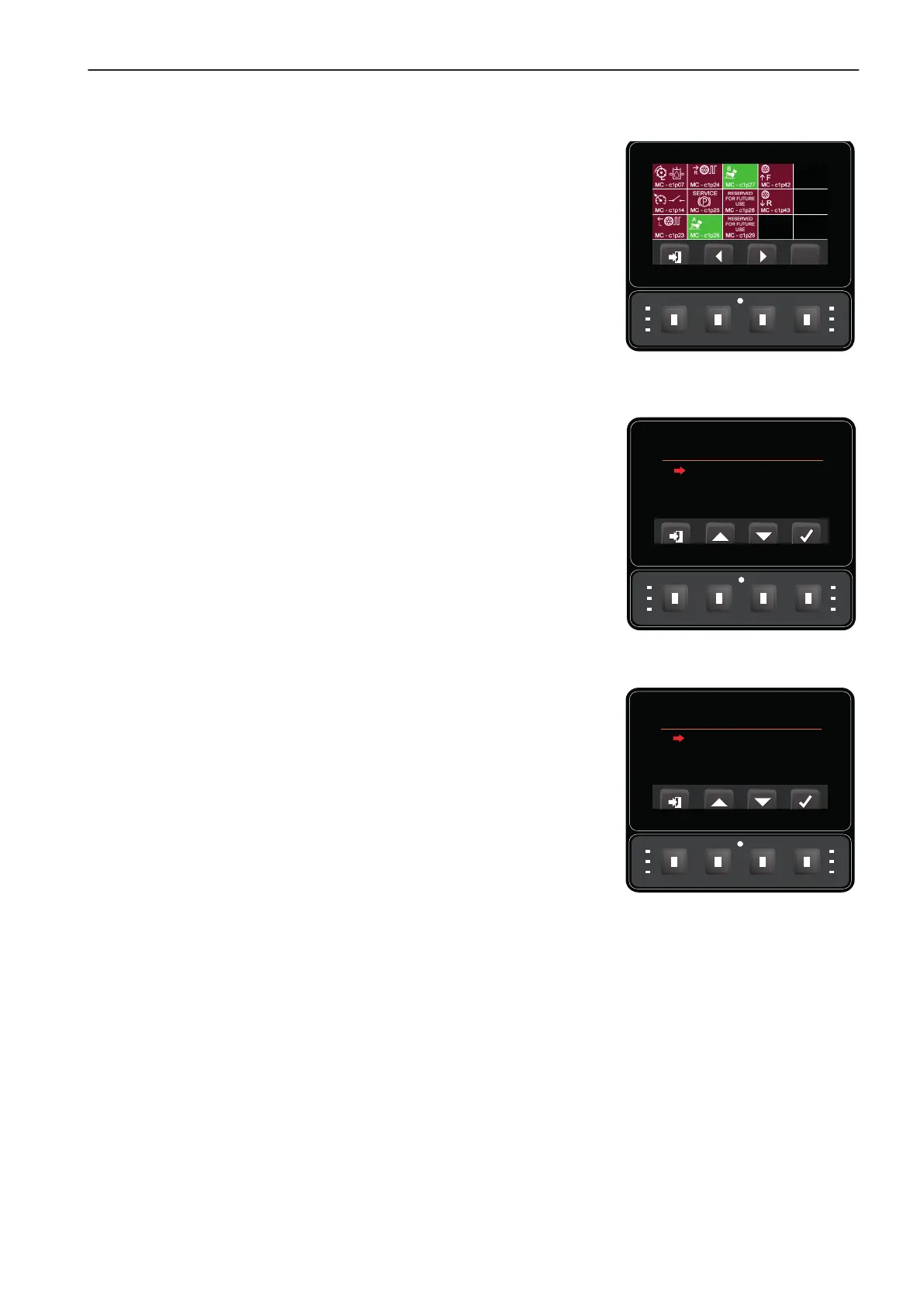

These screens give access to various controller input and output Pin func-
tions and their state to be used for diagnostic trouble shooting. Buttons 2
& 3 can be used to scroll between the pages, Button 1 returns to the Ser-
vice Menu. (See Following Pages for I/0 screens).
5.5 SETTINGS_____________________________________________________________
Within the settings Menu you will find the three options:
• Measurement Units
• Pin
• Brightness
5.5.1 MEASUREMENT UNITS ________________________________________________
Buttons 2 & 3 move the arrow up and down the list, Button 4 selects pa-
rameter to be altered, then Button 2 & 3 scroll between the unit types.
When amended as necessary Button 1 then saves the setting.
Settings Menu
Measurement Units
PIN
Brightness
Measurement Units
Speed Km/h
Pressure kPa
Volume Litre
Temperature °C
Fuel Rate L/h
