6 OPERATION
6.4 TO FIT THE CUTTER DECKS TO THE MACHINE ____________________________

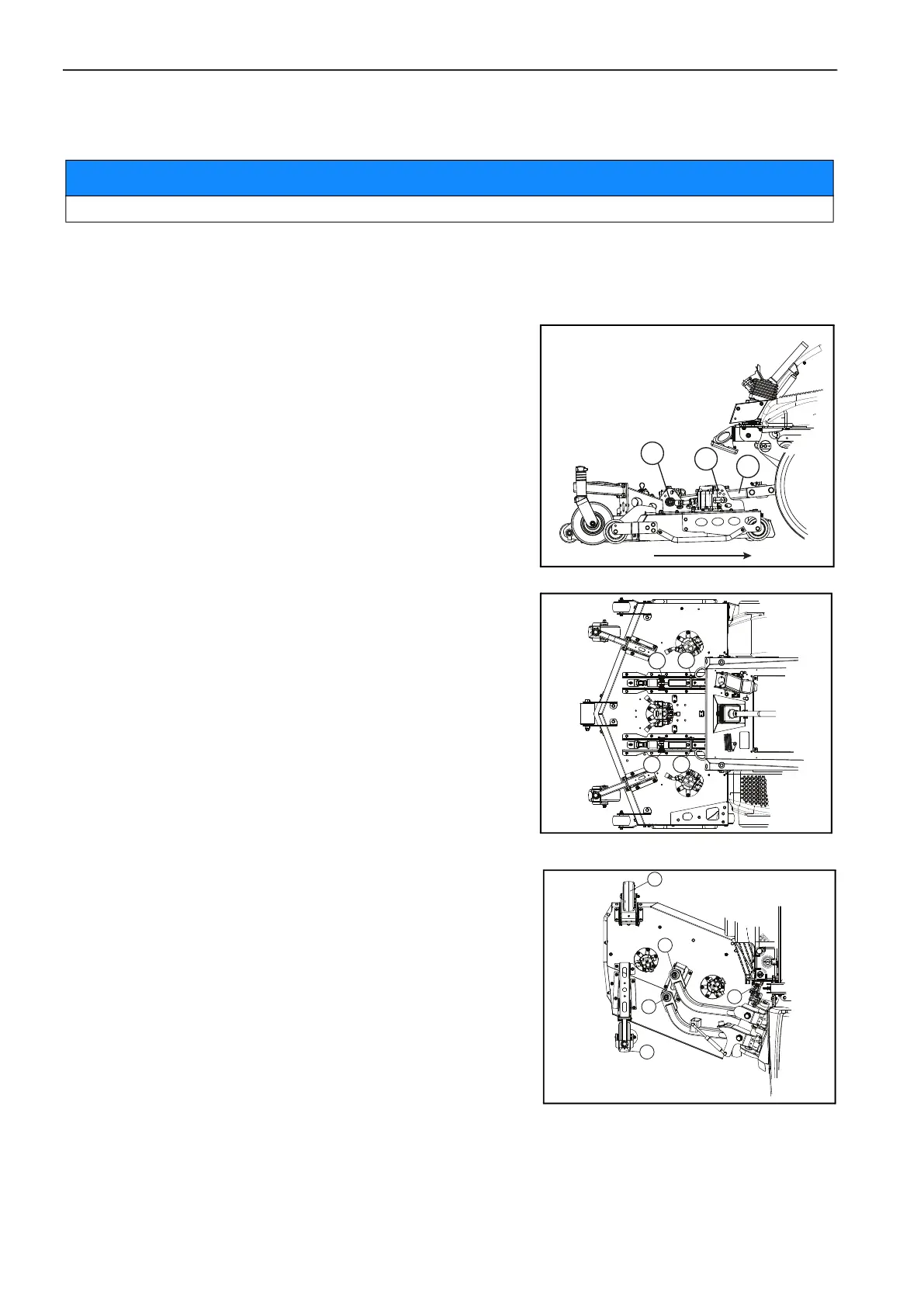

Front Deck Mounting
1. Make sure the hydraulic hoses are plugged. Start the
engine and lower the lift arms (A), stop the engine and
remove the ignition key.
2 Position cutter deck and align the lift arms (A) with
mounting brackets.
3 Fit the pin to the front position (B) of the arm and bracket.
4. Fasten with R clips.
5. Start the engine and lift the deck into the cross cut position,
stop the engine and remove the ignition key.
6. Fit the rear pins and R clips in the holes (C) for the height
of cut needed.
7. Start the engine and lower the deck to the ground.
Wing Deck Caster Wheel Initial Setting.
1. Make sure the hydraulic hoses are plugged. Start the
engine and lower the lift arms (A), stop the engine and
remove the ignition key.
2. Set the 2 outer caster wheels (B) to the lowest height of cut
(use decals on the decks).
NOTE
For height of cut adjustments see section 7.2 and 7.3
B
C
A
C
C
B
B
B
B
A
A
C
