en-26
5 CONTROLS

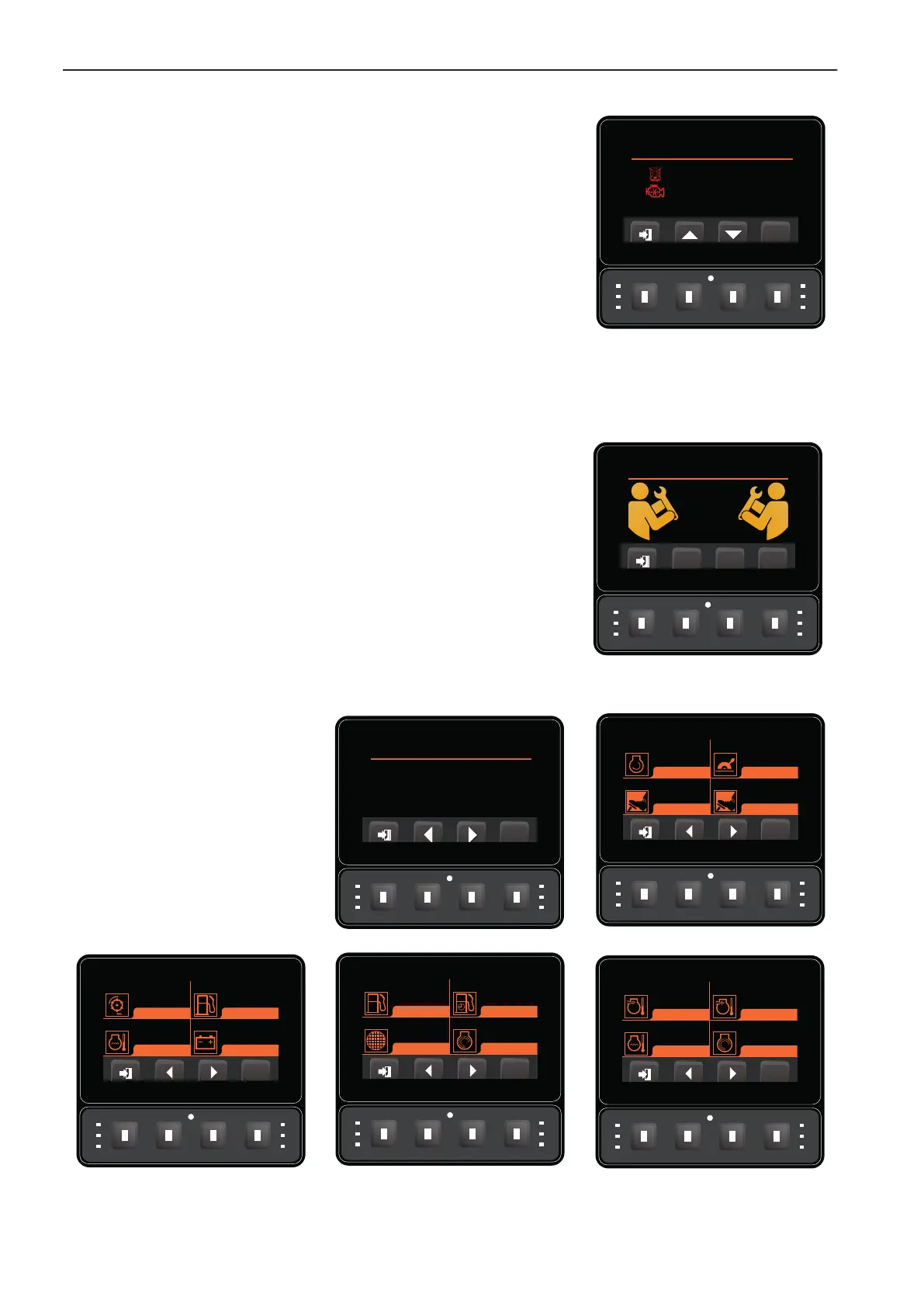

Button 4 takes the screen to the second Fault Log page which displays a
list of the last 100 faults along with the Time, Date and Engine Hours that
the fault occurred.The number in the top right hand corner shows the total
number of faults recorded, and Button 1 can be used to exit to the Service
Menu.
Note: The fault displayed is an example and the actual popup seen by the
operator may be different
.
5.4.1 TIME UNTIL SERVICE__________________________________________________
This screen gives the number of engine hours until the next service
inspection is required.
To reset the service interval press & hold Button 2, 3 & 4 until the figure
changes. Note: this should only be done once the required service has
been completed.
5.4.2 VEHICLE DIAGNOSTICS _______________________________________________
These screens give access to vari-
ous machine parameters. Buttons
2 & 3 can be used to scroll between
the pages, Button 1 returns to the
Service Menu.
1 00:44:27 04/01/21 0000.0
2 00:40:32
04/01/21 0000.0
3 00:31:12 04/01/21 0000.0
Time Date Hours
DPF
SENSOR
Fault Log = 3
Time Until Service
50
Hours
Software Versions
Controller Software Version:
00000000.00.00
HMI Software Version:
00000000.00.00
Engine Speed Engine Throttle Postion
Pedal B PositionPedal A Position
0 0.0V 0%
0.0V 0%0.0V 0%
R.P.M.
Volt - % Volt - %
Volt - %
Cutter Hours Fuel Level
Battery VoltageEngine Coolant Temperature
00
12.0
-40
R.P.M.
°C Volt
%
Engine Total Fuel Used Engine Fuel Rate
Engine TorqueDPF Soot
0 0.0
-125
0
Litre
% %
I/h
{}
Engine Air Inlet T Intake Man T
Driver Engine TorqueOil Presssure
-40 -40
-125
0.0
°C
°C %
°C
To Next Page
