Jacobsen MR1 Series User Manual

en-58
6 OPERATION

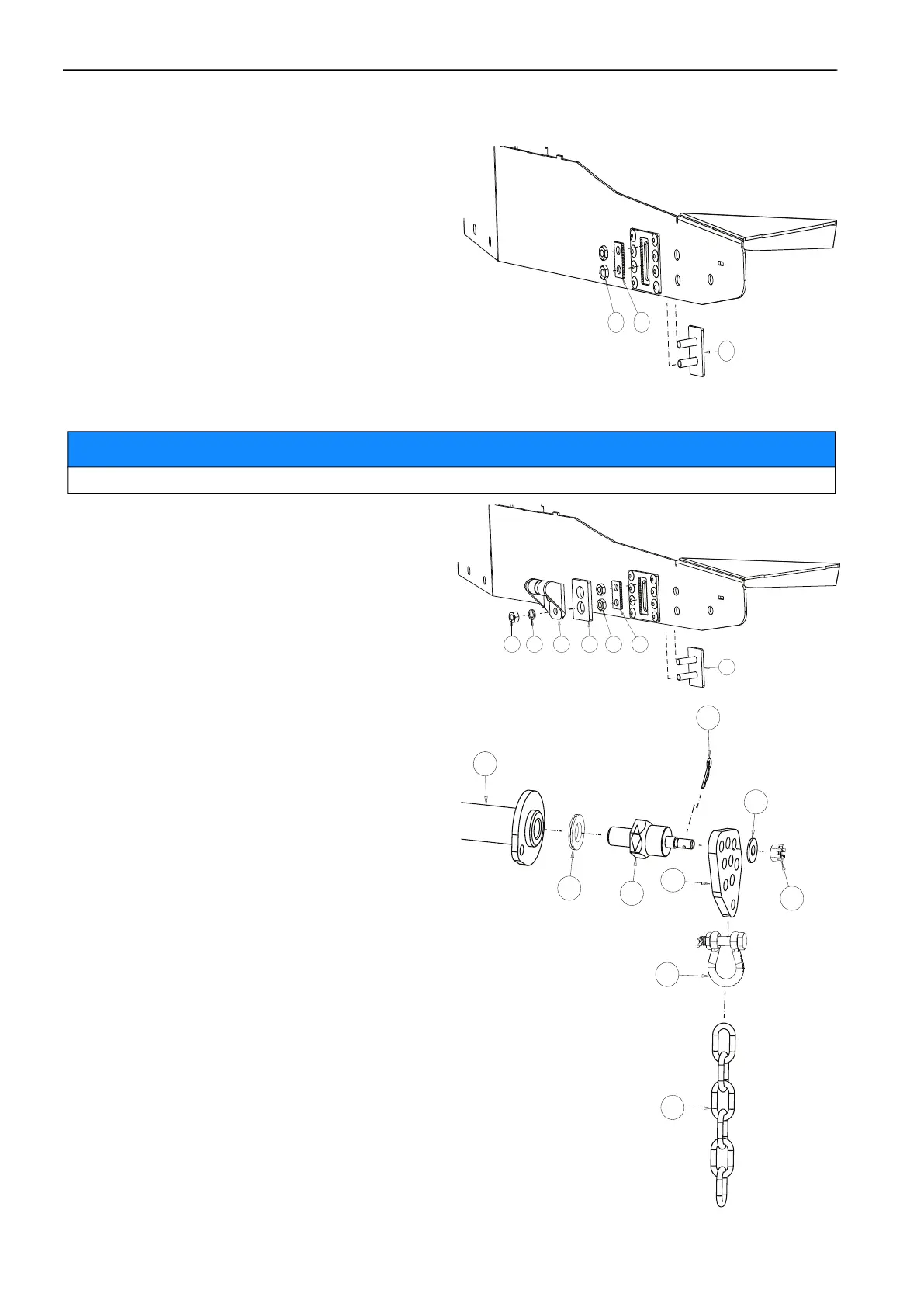

Height Of Cut chain Set Up MP653 only
Chain Bracket to Deck
1. Fit the Rear height of cut Locking Plate (9)
through the
elongated slot from the inside the deck shell.
Make sure the deck is lifted and support as
required.
2. Install the serrated plate (7) on the weld bolts,
engage in the upper end of the serrated slot.
Fasten in position with two M8 nuts (15).
3. Fit the Rear-height of cut Cover Plate (14) on
to the Rear height of cut Locking Plate (9).
4. Fit the Rear-height of cut Bracket (6) install
M8 Lockwashers (13) and fasten in position
with M8 Nuts (12).
Chain To Mounting Frame
1. Fit the Anti-vibration Washer (18) on the M16
end of height of cut Chain - Stand Off (8).
2. Assemble the height of cut Chain - Stand Off
(8) and Anti-vibration Washer (18) together.
Apply “thread lock” to the M16 threads and
screw into the Pivot Pin (A), tighten to 27Nm.
3. Fit the Rear-height of cut Plate (17) on to
height of cut Chain - Stand Off (8) fit the
Washer (3). Fasten with the M8 castellated nut
(4), make sure that the hole in item (8) is
visible for the ‘R’ Clip (1).
4. Fit the shackle (5) through the first link of the
height of cut Chain (19). Installing into the first
hole of the Rear-height of cut Plate (17).
7
NOTE
For high-height of cut range It will be necessary to rotate the Rear-height of cut Bracket (6) 180 degrees.
7
9
15
6
7
9
12
13 14 15
1
3
4
5
8
17
18
19
A
