32

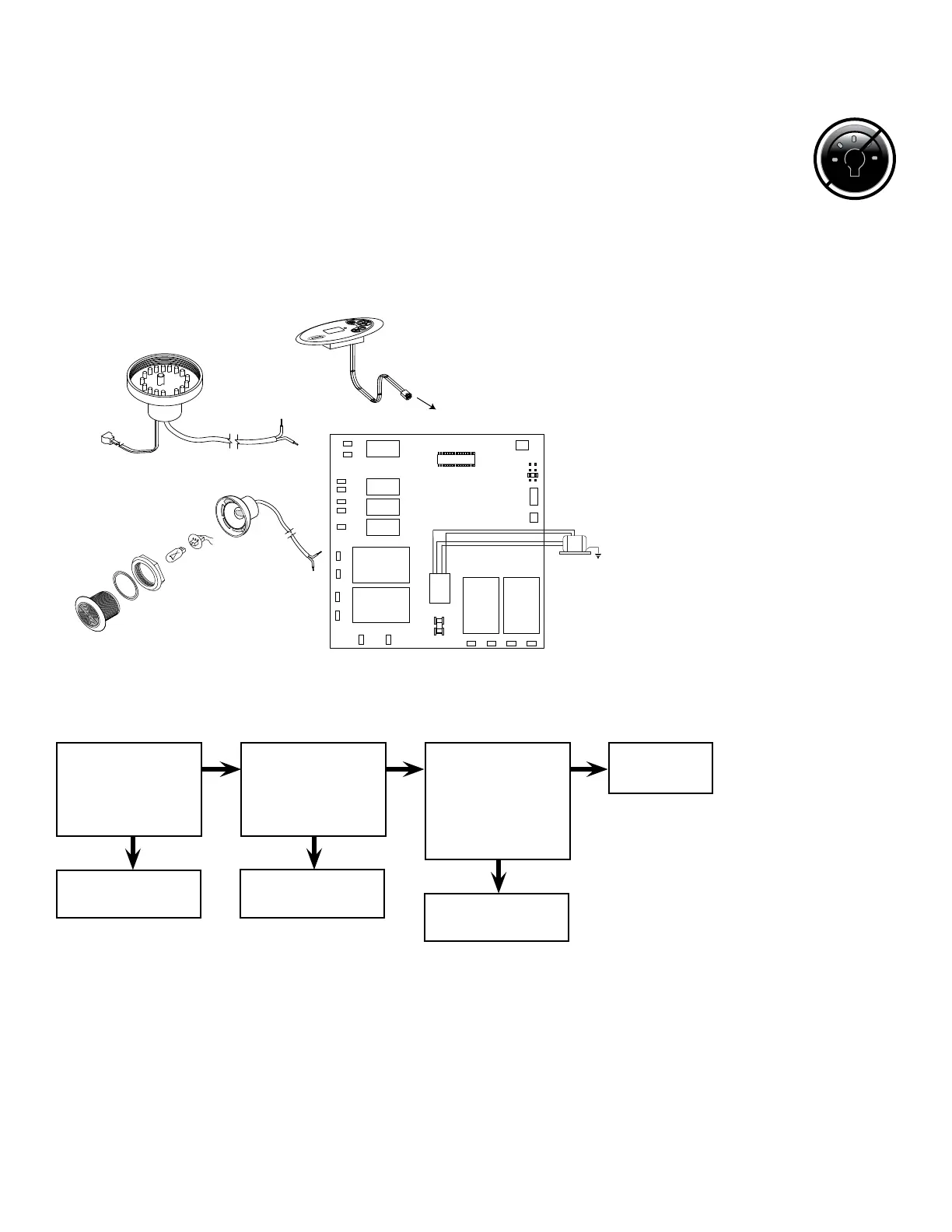

8.6D Light does not come on (J200 Collection Standard light)
A. 2011+ J210 Models
B. 2011-2012 J-230, J-270 and J-280
Diagnostic Tools: Voltmeter
Suggested Spare Parts: Circuit board, Transformer, Lights
Standard Troubleshooting Approach (Light has a one hour time out)
Refer to pages 50-53 for testing points.
To location J1
on the Board
RED
J6
BLK
J5
J1
J2
J3
J4
F1
JP1
4
2
3
1
6 5
8 7
J20
K1
K2
K3
K4
K5
K6 K7 K8
J21
J11
J12
J13
J14
J15
J16
J17
J18
J19
J8
J9
J10J7
TRANSFORMER
T1
J210 Models
2011-2012: J230, J270
2011+ J280 Models
Yes
Yes
Replace control
panel.
Replace light.
Plug in spare con-
trol panel. Does
the light work now?
Check for voltage
at points 18 and
19. Is voltage pres-
ent?
No No
Yes
Replace circuit
board.
Is there correct
voltage at the
transformer? Refer
Section A24 page
58 for voltage
readings.
No
Replace
transformer.
To Next Page
