58
A18 Transformer Test
To Test Transformer:
1. Leave transformer connector J4 plugged into the circuit board.
2. Set your Voltmeter to the 500 VAC range.
3. Place Voltmeter probes directly into backside (wire side) of J4 connector and test as follows:
North American 60 Hz
2011-2013 J-315/J-325 (120 VAC or 240 VAC Powered*)
Connector J4 Voltage
Black to White 120 VAC*
Yellow to Yellow 12-14 VAC*
North American 60 Hz
J-210 (120 VAC or 240 VAC Powered*)
Connector J4 Voltage
Black to White 120 VAC*
Yellow to Yellow 12-14 VAC*
*Special instructions for all 120 VAC/240 VAC convertible power models.
120 VAC Power Conguration: Convertible models include a factory installed 10 foot GFCI cord
rated at 15A/120 VAC. To use cord the hot tub must be installed within 10 feet of a dedicated,
grounded type electrical outlet. Do not use an extension cord of any type! If the hot tub is more than
10 feet from an outlet, it must be hard wired to a single pole 15 amp GFCI breaker. Refer to pages
50-53 for specic circuit board congurations.
240 VAC Power Conguration: Convertible models can be hard wired for 4-wire 120 VAC/240
VAC power. This conguration powers the heater with 240 VAC while powering both pumps and
ozone with 120 VAC. An external 30 or 40 amp dual pole GFCI breaker is required. Refer to pages
50-53 for specic circuit board congurations.
North American 60 Hz
J-LX, J-LXL, (240 VAC Powered)
2011-2013 J-335, J-345, J-355, J-365, J375 (240 VAC Powered)
Connector J4 Voltage
Black to Red 240 VAC
Yellow to Yellow 12-14 VAC
North American 60 Hz
J-230, J-235, J-245, J-270, J-275, J-280 (240 VAC Powered)
Connector J4 Voltage
Black to Red 240 VAC
Yellow to Yellow 12-14 VAC
230 VAC Powered
Connector J4 Voltage
Black to Black 230 VAC
Yellow to Yellow 12-14 VAC
All Export 50 Hz Models

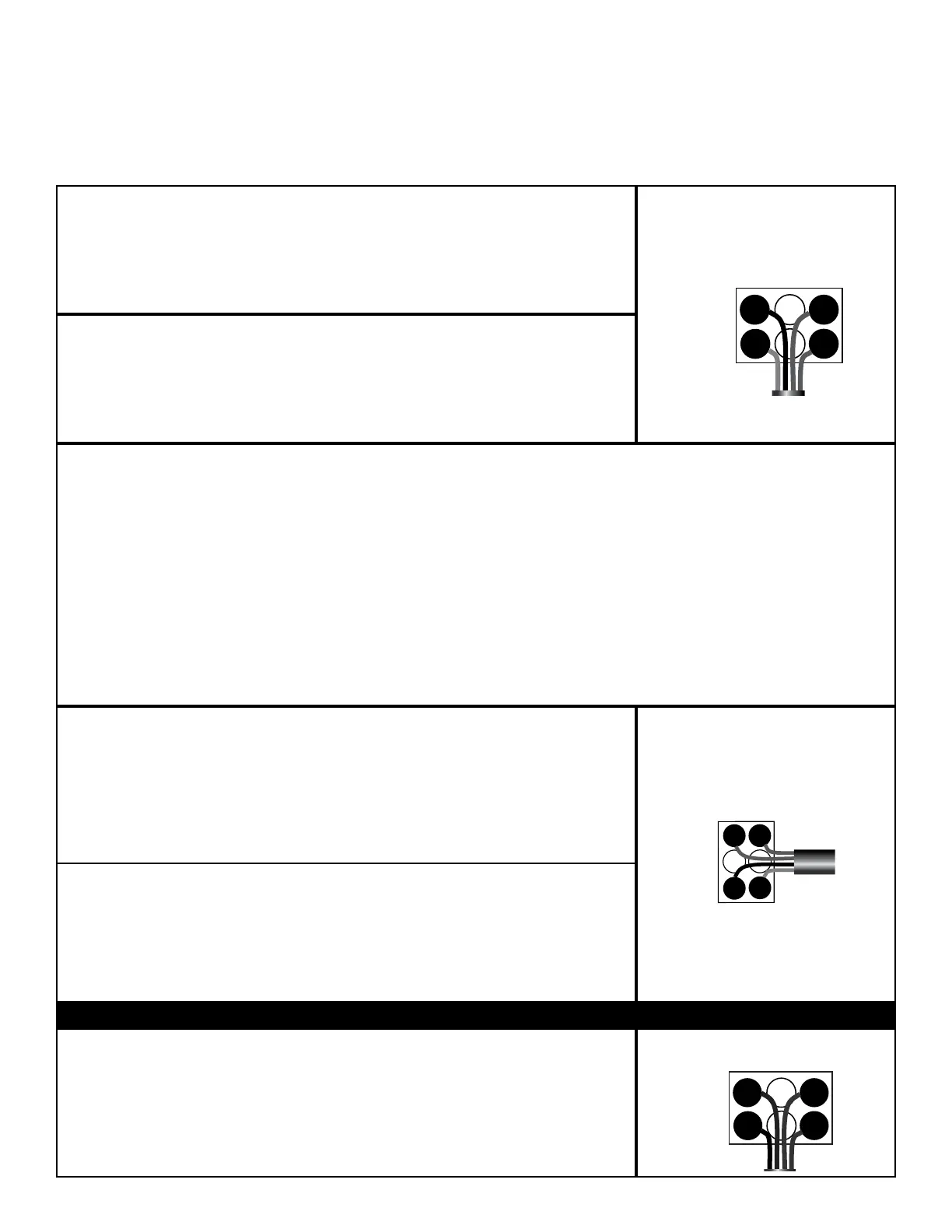

W
BK Y
Y
120 VAC/240 VAC
Convertible Models*
(Wire End View)
Red
BK
Y
Y
240 VAC Models
(Wire End View)
Blk
Blk
Y
Y
Export 50 Hz Models
(Wire Side View)
To Next Page
