Jandy AquaLink RS series User Manual

Page 34
Yes
No
Check Controller
operation.
Are multiple
Controllers
installed?

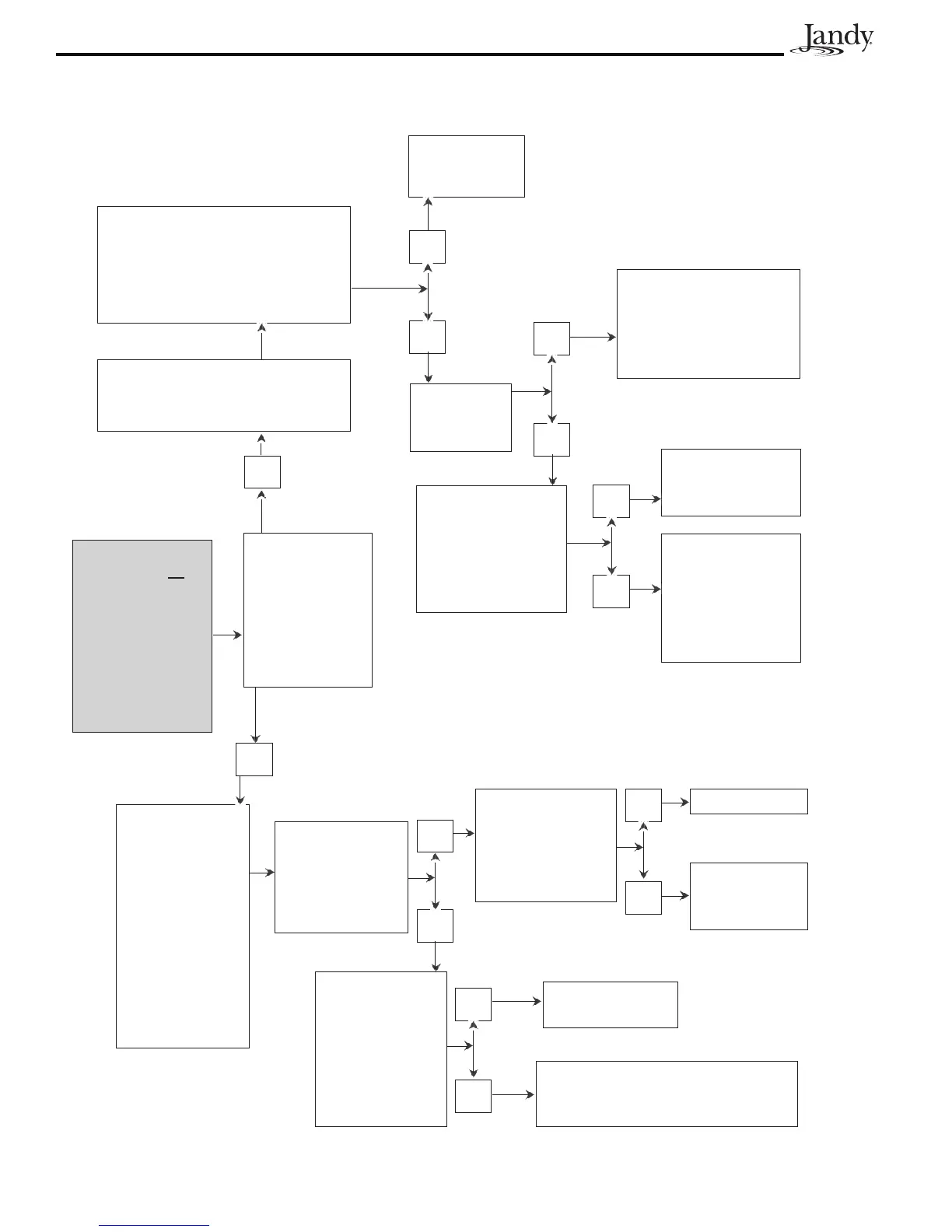

7.3 All Lights Lit on Controller
Go to the Power
Center. Switch
from Auto to Ser-
vice. Do Power
Center override
switches operate?
Go to the in house Controller.
Check Reset button on the left side
of the Controller for damage.
Carefully recheck all four (4)
conductor wires for breaks or poor
connections. Especially the black
and yellow wires. Are these wires
broken or wired wrong?
Correct the
wiring prob-
lem.
Yes
No
Recheck the jumpers on
the Controllers. Each
Controller jumper must
be set differently so each
has a different address.
Turn off power,
remove the battery
at the Power Center
and turn on the
power again. Does
Controller operate?
Yes
No
Replace the battery
and recheck the
system.
Replace fi rmware chip and try sys-
tem. If system still does not operate,
replace the Power Center PCB.
No
Turn off power.
Remove Power
Center Bezel/
PCB. Remove
fi rmware chip
from PCB.
Inspect legs for
damage and
carefully align
and reinstall the
fi rmware chip.
Turn on power.
Change from
Auto to Service.
Do the override
switches operate?
Yes
No
Problem may be in
the Controller PCB
or Power Center
PCB. Replace the
Power Center PCB
fi rst.
Yes
Go to the Control-
ler and check its
operation. Does
Controller oper-
ate?
Turn off power
again and discon-
nect the battery.
Turn power on
again. Do the
override switches
operate?
Yes
No
Yes
No
Operate system.
Return to the
beginning of
this page.
All Button LEDs
are all on or
OneTouch shows
"Firmware Rev
code" and rest of
screen is all dots,
but the Con-
troller does not
operate.
