Janome MC400E User Manual

30
MC450e

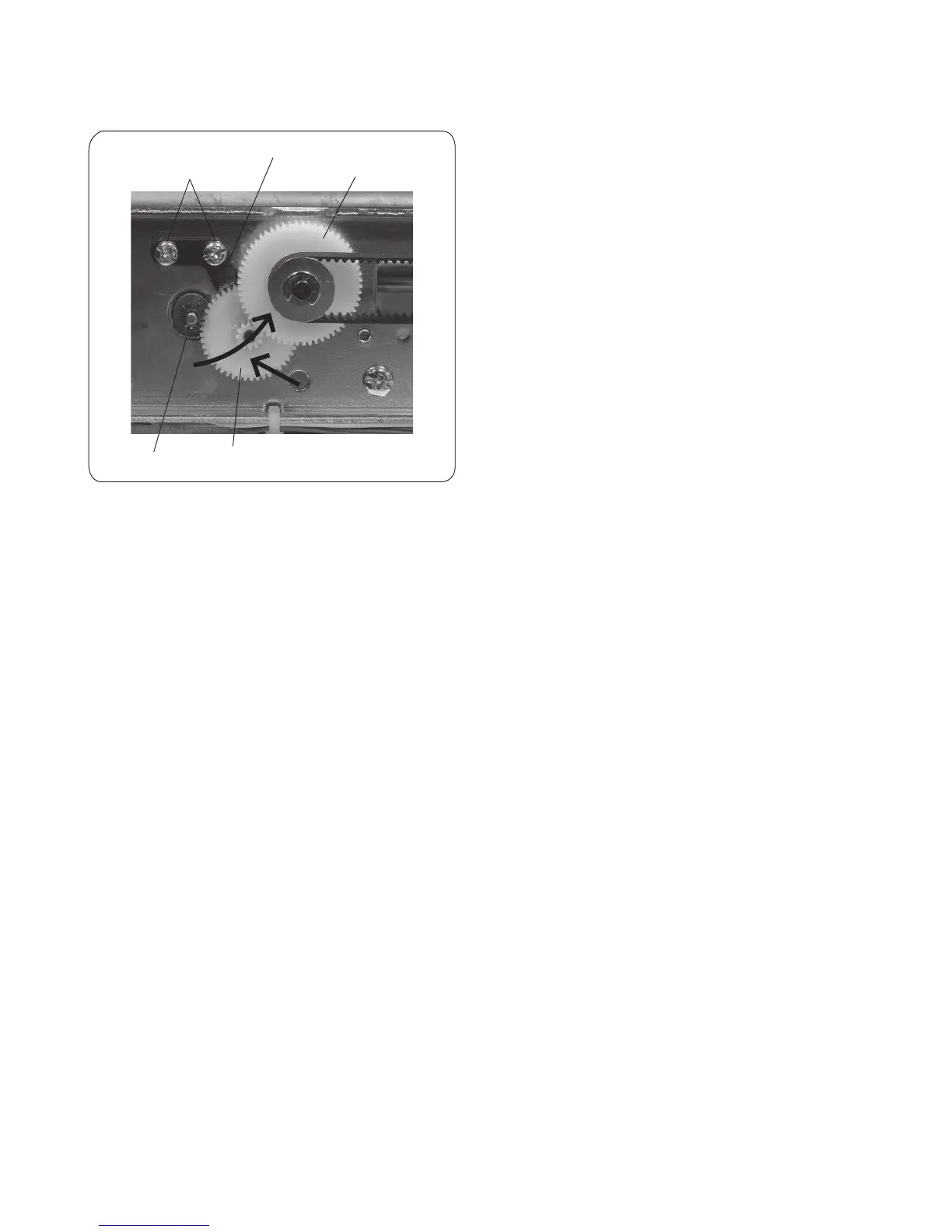

Remove the setscrews (A).
Pulling down the gear set plate and the gear (A), remove
them.
Set a new gear (A) on the gear set plate.
Attach the gear set plate with the new gear (A) on the
X-carriage and temporarily tighten the setscrews (A).
Move the gear (B) so that the gear (B) comes in contact
with the gear (A).
Move the gear (B) in the direction of the arrow so that
the gear (B) comes in contact with the gear (C).
Tighten the setscrews (A) rmly.
Be sure that there is no play between the gears (A) and
(B), nor between the gears (B) and (C).
Slide the Y-carriage by hand and check if Y-carriage
moves smoothly.
Setscrews (A)
Gear (B)
Gear (A)
Gear (C)
Gear set plate
Attach the covers
Attach the bed cover, base plate and thread cutter cover
follow the above procedure in reverse (refer to pages 1,
2, 3).
Replacing the Gear of the X-carriage
