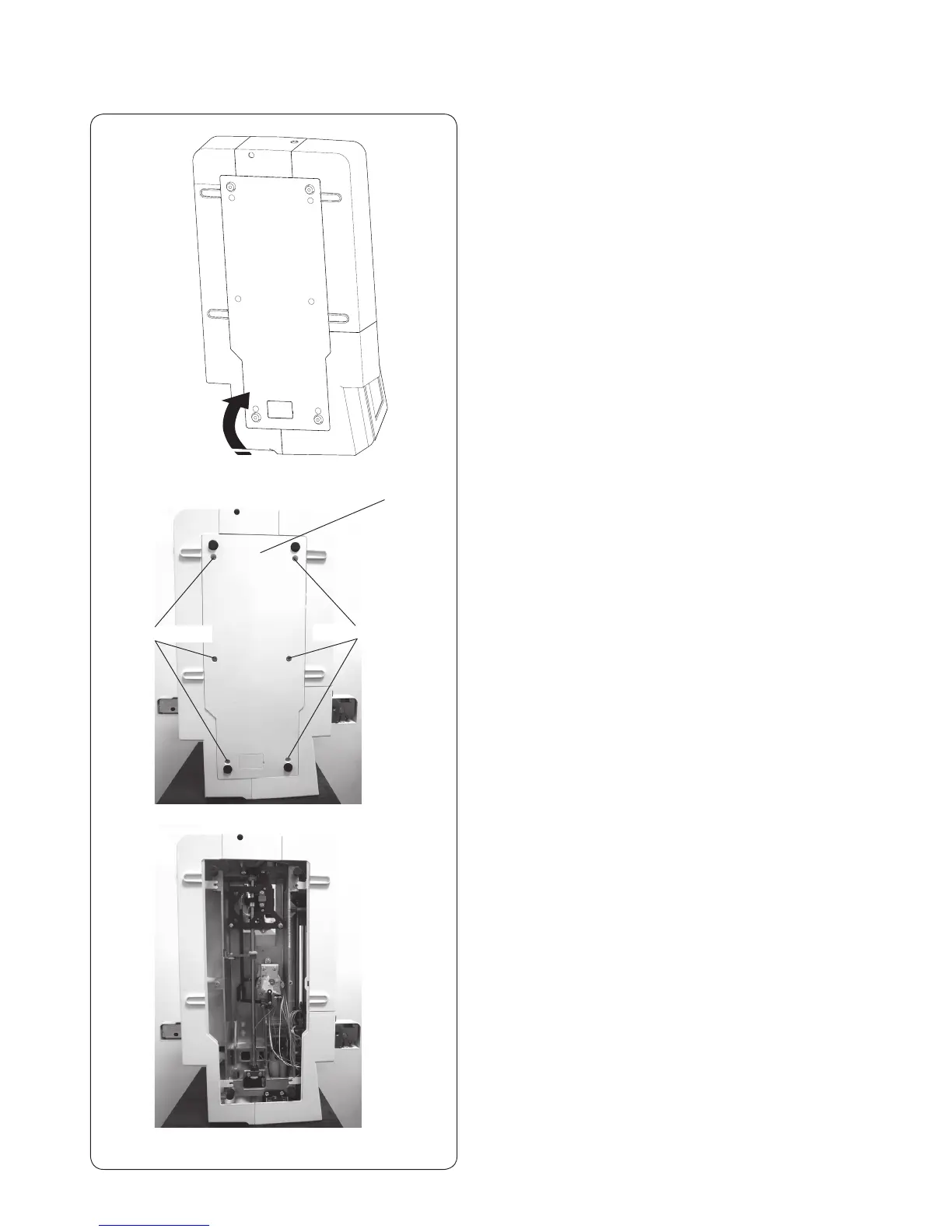

Replacing External Parts (2) Base Plate
Replacing the base plate
To
r
e
m
o
v
e
:
1
.
Stand th
e machine so t
hat the handwheel s
ide
comes to t
he undersi
de of the machin
e.
2.
Rem
ove the 6 setscrews (A
) and re
move the bottom
plate.
Setscrews (A
Setscrews (A)
Bottom plate
T
o at
tach:
3.
Foll
ow the above proce
dure in reverse.
3
5
Table of Contents
Table of Contents
2
Replacing External Parts
3
Face Cover
3
Thread Cutter Cover
3
Base Plate
4
Bed Cover
5
Front Cover
6
Rear Cover
7
Carriage Cover
8
Belt Cover
8
Adjusting the Needle Drop Position
9
Hook Timing
10
Needle Bar Height
11
Clearance between the Needle and Hook
12
Backlash between the Rotary Hook Gear and Lower Shaft Gear
13
Upper Shaft Shield Position
14
Needle Thread Tension
16
Tension Release Mechanism
17
Replacement Needle Threader
18
Height of the Embroidery Foot
19
Printed Circuit Board a
20
Printed Circuit Board F
21
Presser Foot Lifter Detecting Switch
22
Automatic Thread Cutter
23
Remaining Bobbin Thread Sensor
24
Hoop Position
25
Carriage Unit
26
X-Sensor Position
27
Y-Sensor Position
28
Y-Carriage Supporter
29
Switching Power Supply
30
DC Motor Belt Deflection
31
Driving Motor
31
Replacing the Gear of the X-Carriage
32
Needle Bar, Presser Bar and Thread Take-Up Lever
33
Oil Wick
34
Lower Shaft Supporter (Front and Rear)
34
Y-Carriage
35
X-Carriage
35
5
