JBL GT-X333 User Manual

4
www.jbl.com
BOX CONTENTS
Your GT-X555/GT-X333 box should contain the following items:
(1) GT-X555 or GT-X333 player
(1) Removable faceplate and case
(1) Remote control and CR 2025 battery (installed in remote)
(1) Mounting trim plate
(1) M4 x 42 support rod
(1) Support rod rubber cap
(4) M5x6mm machine screws
(1) Wiring harness
(1) Mounting sleeve (attached to the player)
(2) L-keys
INSTALLING yOUR GT-X555/GT-X333
INSTALLATION WARNINGS AND TIPS
BEFORE BEGINNING INSTALLATION, DISCONNECT THE
VEHICLE BATTERY’S NEGATIVE (–) TERMINAL. This will prevent
accidental short circuits during installation.
Always wear protective eyewear when using tools.•
Check clearances on both sides of the surface where you plan to •
mount the player before drilling any holes or installing any screws.
Remember that the screws can extend behind the surface.
At the installation site, locate and make a note of any fuel lines, •
hydraulic brake lines, vacuum lines or electrical wiring. Use extreme
caution when cutting or drilling in and around these areas.
Before drilling or cutting holes, use a utility knife to remove •
unwanted fabric or vinyl to keep material from snagging in a drill bit.
CONNECTIONS

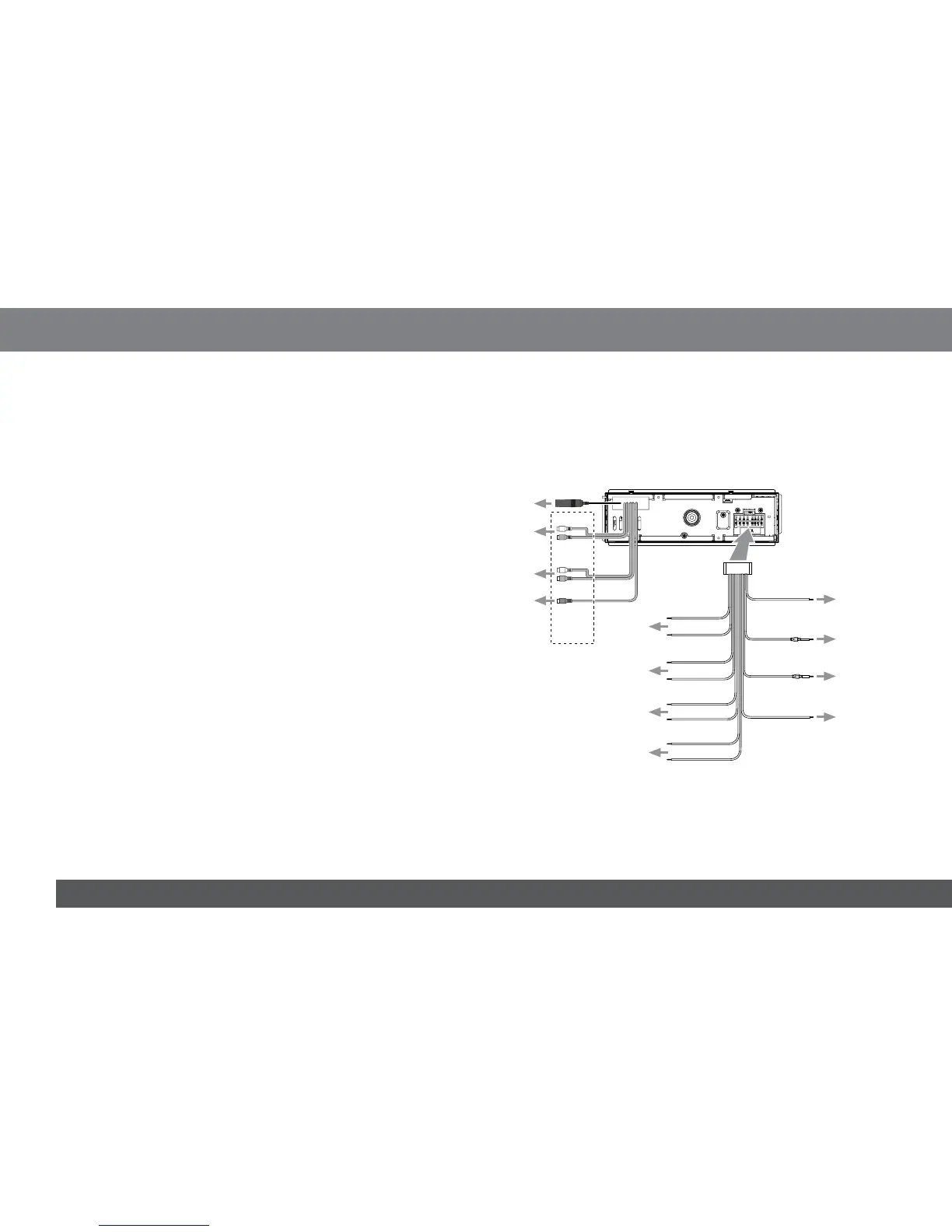

Before installing the GT-X555/GT-X333 into the vehicle, make all the
wiring harness connections according to the illustration below. When
making connections, make certain that they are all secure and properly
insulated.
To Vehicle
Antenna
+12 Volts
(Yellow)
Ground (–)
(Black)
+ (Purple)
– (Purple/Black)
+ (Green)
– (Green/Black)
+ (Gray)
– (Gray/Black)
+ (White)
– (White/Black)
Accessory +
(Red)
Remote Tu rn-On
(Blue)
Antenna
Connector
Blue (Lt)
Gray (Rt)
Purple
PREAMP
OUTPUTS
White (Lt)
Red (Rt)
To
Left Front
Speaker
To
Right Front
Speaker
To
Left Rear
Speaker
To
Right Rear
Speaker
Wiring
Harness
GT-X555/GT-X333 Rear Panel
To
Subwoofer
Amp or
Powered
Subwoofer
To External
Amp (Rear
Channels)
To External
Amp (Front
Channels)
To Vehicle
Antenna
Control
Circuit and
External
Amplifier
Remote
Tu rn-On Circuit
To Vehicle
Accessory
(ACC)
Circuit
To Vehicle
Chassis
To Vehicle
Battery
Positive (+12V)
Te rminal
NOTE: If you connect a subwoofer amp or powered subwoofer to the
purple preamp output, you must activate the subwoofer output in the
Audio adjustment menu. See Audio Adjustments, on page 16.
