JBL PSW-D110 User Manual

17
Amplifier/Subwoofer PSW-D110/DPS-10

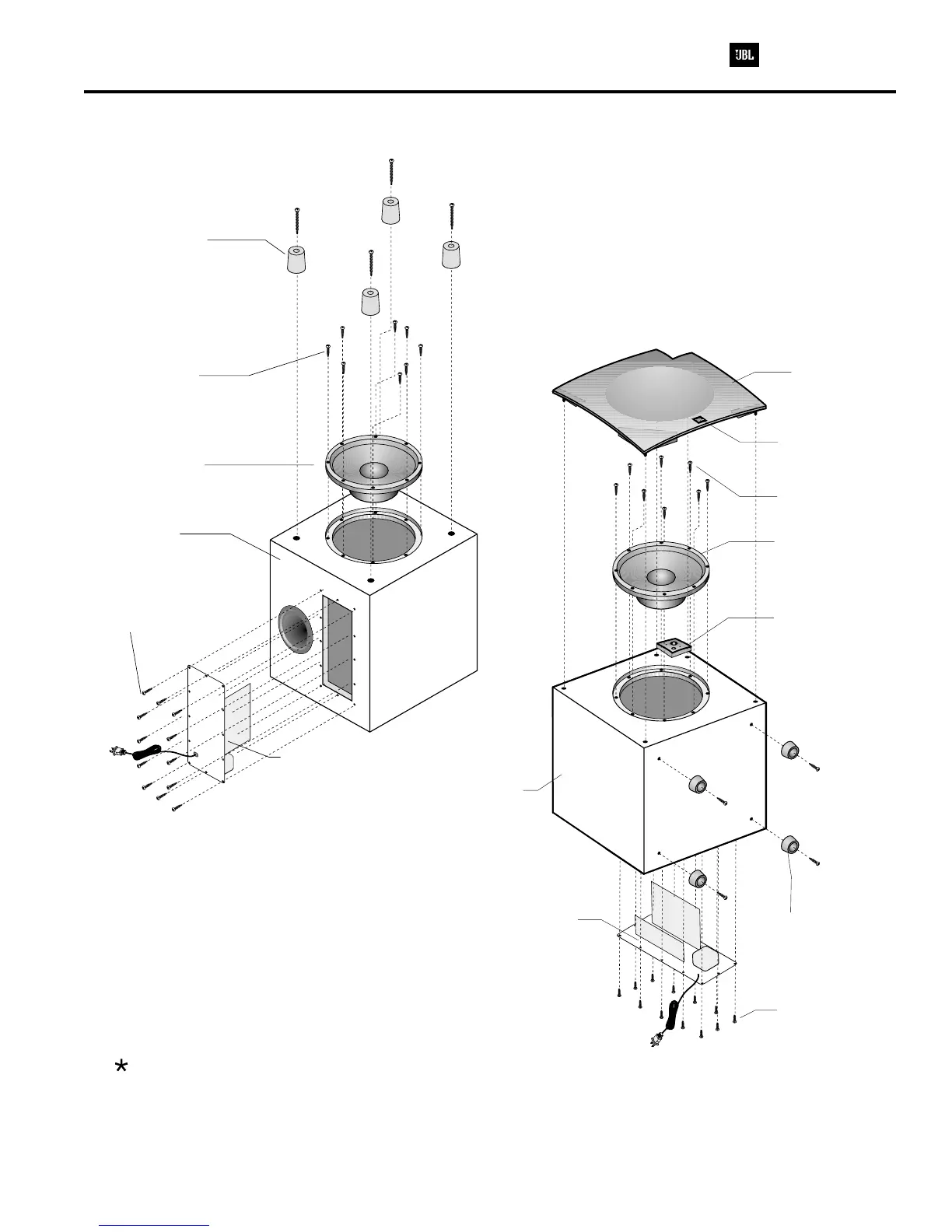

CABINET EXPLODED VIEWS
SCREWS (12)
SCREWS (8)
JBL Logo
#200512
FEET
#200582
CABINET
NOT FOR
SALE
10" WOOFER
#200500
AMPLIFIER
ASSEMBLY
SCREWS (12)
SCREWS (8)
FOOT PART 1
#200670
FOOT PART 2
#200870
CABINET
NOT FOR
SALE
10" WOOFER
#200500
AMPLIFIER
ASSEMBLY
DPS-10
CABINET ASSEMBLY
PSW-D110
CABINET ASSEMBLY
GRILLE
#200510*
#200511*
CONTROL
PANEL
#200560
For grille replacement, there are two versions of the grille. Earlier verison has a .220" (5.6mm)
grille pin diameter. JBL Part# 200510. Later version has a .410" (10.4mm) grille pin diameter.
JBL Part# 200511. In the case of a missing grille, where pin diameter cannot be measured: take
approximate diameter from the rubber grille cups in the subwoofer cabinet.

JBL PSW-D110 Specifications

Power

power output (RMS)	150 watts

Driver

driver size	10"
driver material	High-Polymer Laminate

Inputs and Outputs

inputs	Line Level and Speaker Level
outputs	Line Level and Speaker Level

Frequency

frequency range	60Hz – 180Hz
frequency response	30Hz – low-pass crossover setting

Weight and Dimensions

dimensions	15-3/8 x 15-3/8 x 17" / 391 x 391 x 432mm
weight	33 lbs / 15 kg
