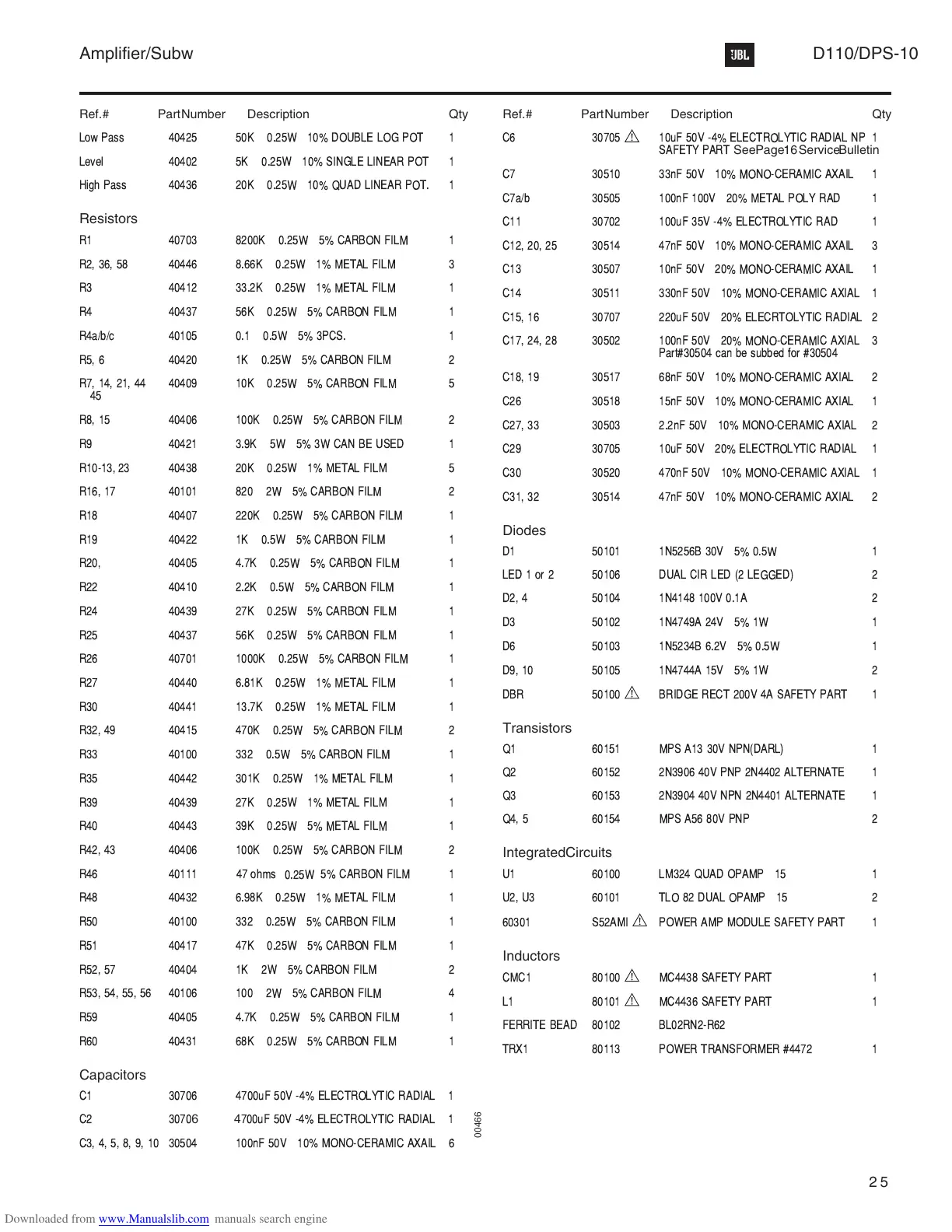

PSW-D110/DPS10 PARTS LIST
Low Pass 40425 50K 0.25W  10% DOUBLE LOG POT 1
Level 40402 5K 0.25W  10% SINGLE LINEAR POT 1
High Pass 40436 20K 0.25W  10% QUAD LINEAR POT. 1
Resistors
R1 40703 8200K 0.25W  5% CARBON FILM 1
R2, 36, 58 40446 8.66K 0.25W  1% METAL FILM 3
R3 40412 33.2K 0.25W  1% METAL FILM 1
R4 40437 56K 0.25W  5% CARBON FILM 1
R4a/b/c 40105 0.1 0.5W  5% 3PCS. 1
R5, 6 40420 1K 0.25W  5% CARBON FILM 2
R7, 14, 21, 44 40409 10K 0.25W  5% CARBON FILM 5
45
R8, 15 40406 100K 0.25W  5% CARBON FILM 2
R9 40421 3.9K 5W  5% 3W CAN BE USED 1
R10-13, 23 40438 20K 0.25W  1% METAL FILM 5
R16, 17 40101 820 2W  5% CARBON FILM 2
R18 40407 220K 0.25W  5% CARBON FILM 1
R19 40422 1K 0.5W  5% CARBON FILM 1
R20, 40405 4.7K 0.25W  5% CARBON FILM 1
R22 40410 2.2K 0.5W  5% CARBON FILM 1
R24 40439 27K 0.25W  5% CARBON FILM 1
R25 40437 56K 0.25W  5% CARBON FILM 1
R26 40701 1000K 0.25W  5% CARBON FILM 1
R27 40440 6.81K 0.25W  1% METAL FILM 1
R30 40441 13.7K 0.25W  1% METAL FILM 1
R32, 49 40415 470K 0.25W  5% CARBON FILM 2
R33 40100 332 0.5W  5% CARBON FILM 1
R35 40442 301K 0.25W  1% METAL FILM 1
R39 40439 27K 0.25W  1% METAL FILM 1
R40 40443 39K 0.25W  5% METAL FILM 1
R42, 43 40406 100K 0.25W
0.25W
 5% CARBON FILM 2
R46 40111 47 ohms  5% CARBON FILM 1
R48 40432 6.98K 0.25W  1% METAL FILM 1
R50 40100 332 0.25W  5% CARBON FILM 1
R51 40417 47K 0.25W  5% CARBON FILM 1
R52, 57 40404 1K 2W  5% CARBON FILM 2
R53, 54, 55, 56 40106 100 2W  5% CARBON FILM 4
R59 40405 4.7K 0.25W  5% CARBON FILM 1
R60 40431 68K 0.25W  5% CARBON FILM 1
Capacitors
C1 30706 4700uF 50V -4% ELECTROLYTIC RADIAL 1
C23070 6 4 700uF50V-4%ELECTROLYTICRADIAL1
C3, 4, 5, 8, 9, 10 30504 100nF 50V  10% MONO-CERAMIC AXAIL 6
C6 30705 10uF 50V -4% ELECTROLYTIC RADIAL NP 1
SAFETY PART SeePage16ServiceBulletin
C7 30510 33nF 50V  10% MONO-CERAMIC AXAIL 1
C7a/b 30505 100nF 100V  20% METAL POLY RAD 1
C11 30702 100uF 35V -4% ELECTROLYTIC RAD 1
C12, 20, 25 30514 47nF 50V  10% MONO-CERAMIC AXAIL 3
C13 30507 10nF 50V  20% MONO-CERAMIC AXAIL 1
C14 30511 330nF 50V  10% MONO-CERAMIC AXIAL 1
C15, 16 30707 220uF 50V  20% ELECRTOLYTIC RADIAL 2
C17, 24, 28 30502 100nF 50V  20% MONO-CERAMIC AXIAL 3
Part#30504 can be subbed for #30504
C18, 19 30517 68nF 50V  10% MONO-CERAMIC AXIAL 2
C26 30518 15nF 50V  10% MONO-CERAMIC AXIAL 1
C27, 33 30503 2.2nF 50V  10% MONO-CERAMIC AXIAL 2
C29 30705 10uF 50V  20% ELECTROLYTIC RADIAL 1
C30 30520 470nF 50V  10% MONO-CERAMIC AXIAL 1
C31, 32 30514 47nF 50V  10% MONO-CERAMIC AXIAL 2
Diodes
D1 50101 1N5256B 30V  5% 0.5W 1
LED 1 or 2 50106 DUAL CIR LED (2 LEGGED) 2
D2, 4 50104 1N4148 100V 0.1A 2
D3 50102 1N4749A 24V  5% 1W 1
D6 50103 1N5234B 6.2V  5% 0.5W 1
D9, 10 50105 1N4744A 15V  5% 1W 2
DBR 50100 BRIDGE RECT 200V 4A SAFETY PART 1
Transistors
Q1 60151 MPS A13 30V NPN(DARL) 1
Q2 60152 2N3906 40V PNP 2N4402 ALTERNATE 1
Q3 60153 2N3904 40V NPN 2N4401 ALTERNATE 1
Q4, 5 60154 MPS A56 80V PNP 2
IntegratedCircuits
U1 60100 LM324 QUAD OPAMP  15 1
U2, U3 60101 TLO 82 DUAL OPAMP  15 2
60301 S52AMI POWER AMP MODULE SAFETY PART 1
Inductors
CMC1 80100 MC4438 SAFETY PART 1
L1 80101 MC4436 SAFETY PART 1
FERRITE BEAD 80102 BL02RN2-R62
TRX1 80113 POWER TRANSFORMER #4472 1
25
Amplifier/Subwoofer PSW-D110/DPS-10
Ref.# PartNumber Description Qty Ref.# PartNumber Description Qty
00466

JBL PSW-D110 Specifications

Power

power output (RMS)	150 watts

Driver

driver size	10"
driver material	High-Polymer Laminate

Inputs and Outputs

inputs	Line Level and Speaker Level
outputs	Line Level and Speaker Level

Frequency

frequency range	60Hz – 180Hz
frequency response	30Hz – low-pass crossover setting

Weight and Dimensions

dimensions	15-3/8 x 15-3/8 x 17" / 391 x 391 x 432mm
weight	33 lbs / 15 kg
