jcb Hydradig 110W User Manual

6
Please see operator manual for full details.

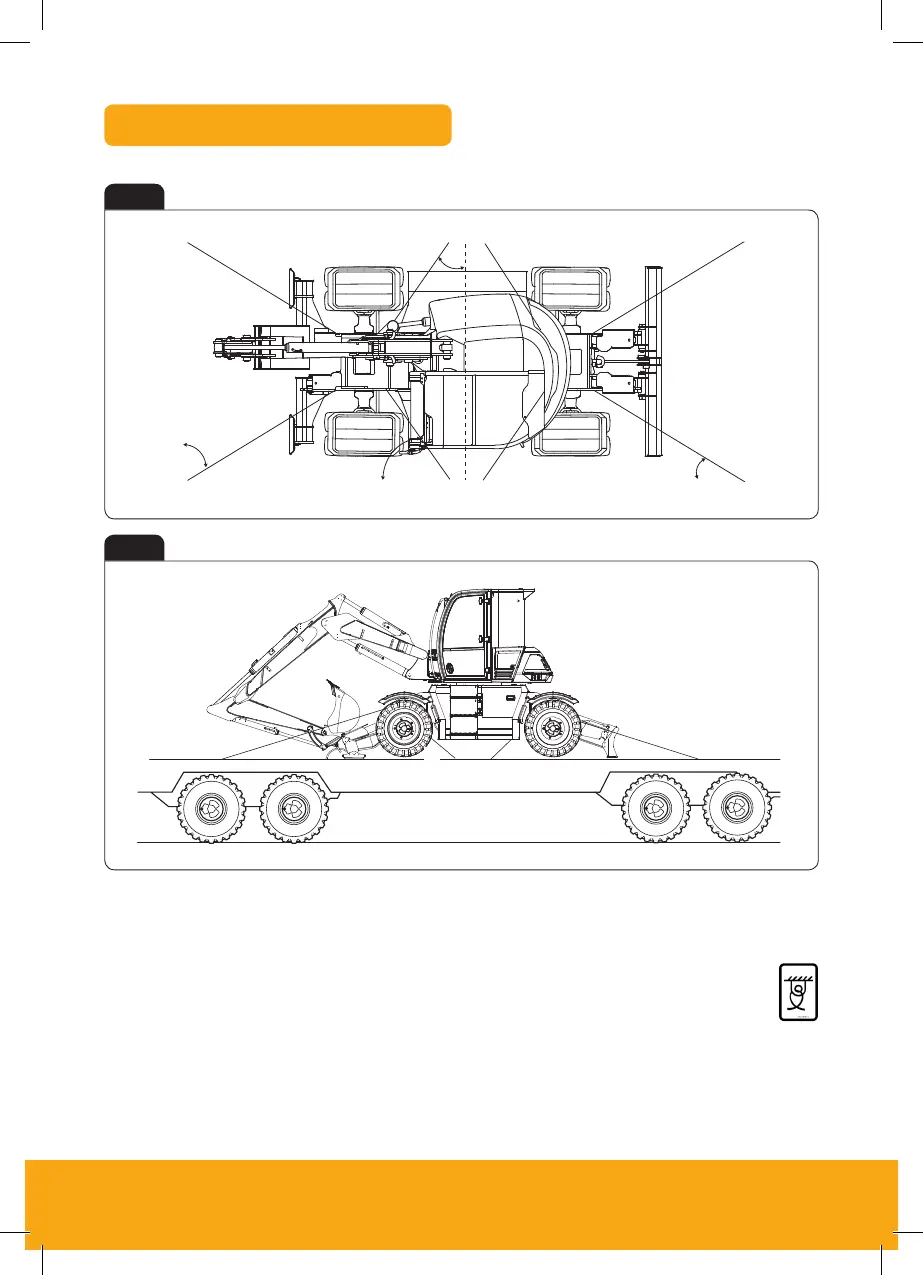

Tie Down Points
Fig 2
Fig 3
C
B
F
E
A
D
C
B
F
E
A
D
Note: These measurements are based on a 2500mm wide trailer bed. The correct tie down positions
are identified on the machine by their labels. Measurements ± 100mm.
A Angle = 29 ± 1º
B Angle = 45 – 47º
C Angle = 43 – 45º
D Angle = 26 ± 1º
E Angle = 34 – 36º
F Angle = 54 – 56º
Tie Down Position Decal
