HYDRADIG 110 W
7
Operation
Lifting the Machine
105 9831/3350-2 105
Lifting the Machine
General
The chassis is equipped with 4 lifting points, 2 at the front and 2 at the rear. These points are also used as
tie down points.
The centre of gravity position is approximately 76mm forward of the slew centre, 1,320mm from the ground
and on the machine centre line. It will vary slightly according the position of the upper structure, machine
specification and condition (tyres, fuel level, options, attachment etc)

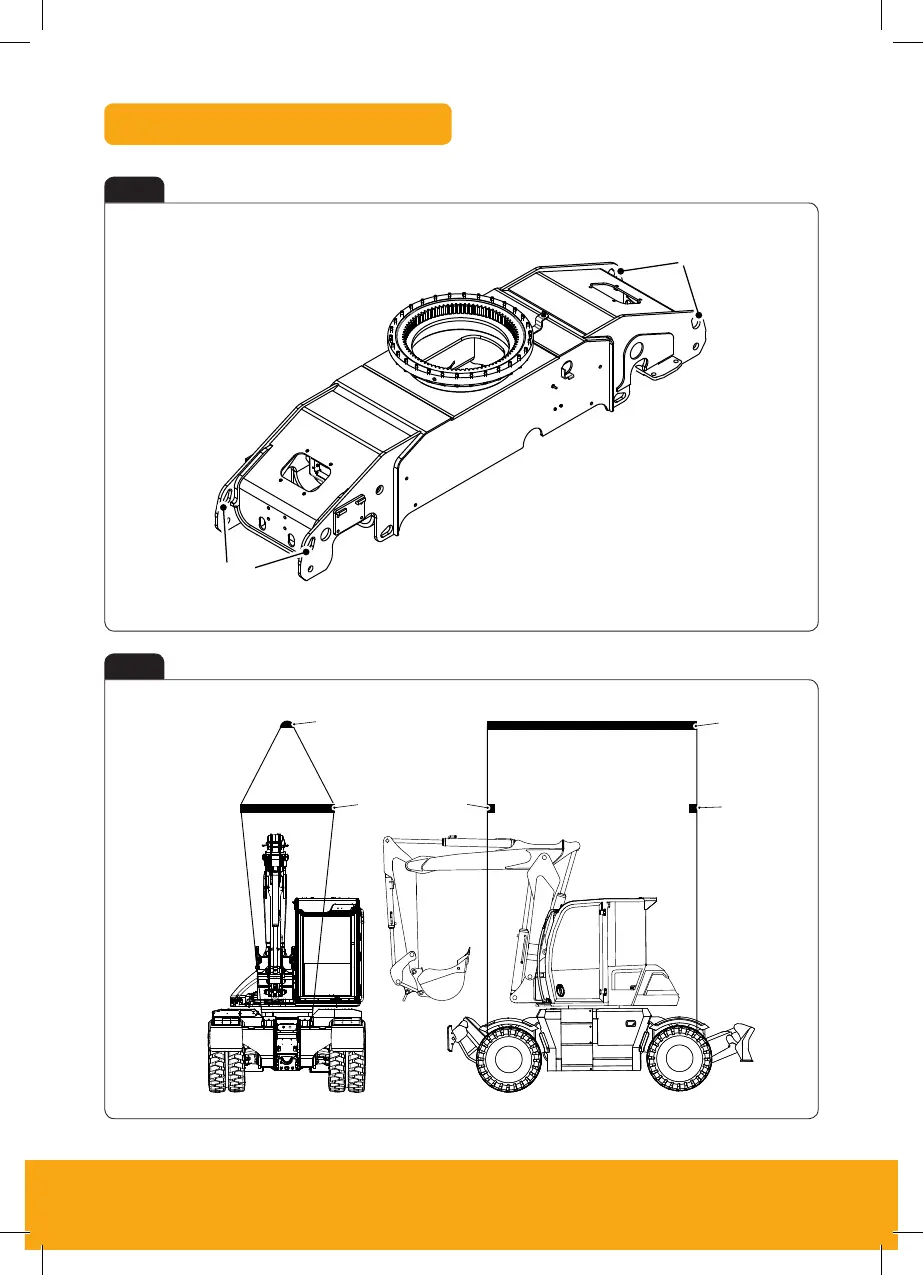

Figure 82.
A
A
A Lift points
Figure 83. Typical Lifting Arrangement
A
A
A
A
A
A Spacer bars
Fig 4
Fig 5
Lifting Points
Operation
Moving a Disabled Machine
103 9831/3350-2 103
6. Disconnect the booster cables:
6.1. Disconnect the negative booster cable from the machine frame earth. Then disconnect if from the
booster supply.
6.2. Disconnect the positive booster cable from the positive (+) terminal on the battery. Then disconnect
it from the booster supply.
Retrieval
Notice: Towing a machine too far or too fast can damage the transmission. Do not tow the machine further
than 1.6km (1mi). Use a trailer for greater distances. When towing do not travel faster than 10km/h (6mph).
Use a rigid draw-bar. If a towing chain must be used, then use two towing vehicles. One towing vehicle
should be coupled to the front of the disabled machine. The other towing vehicle should be coupled to the
rear of the disabled machine, to provide braking power. The towing vehicle(s) must have enough pulling
and braking power to move and stop the machine.
If the machine becomes disabled, the machine should be made safe, lifted onto a transporter and moved to
a location where is can be repaired.
Do not tow a machine unless there is no alternative. Remember that further damage might be caused to the
machine by towing it. If at all possible repair the machine where it stands.
The chassis is equipped with two pairs of retrieval points, one pair at the front and
one pair at the rear. These
points are also used as lifting and tie down points. The maximum force allowable on any retrieval point is 150kN
in a longitudinal direction. Higher retrieval forces may damage the chassis.
In the event that towing the machine to a safe location is unavoidable use the procedure below. Failure to
adhere to the procedure will result in damage to the transmission.
Figure 80.
A
A
A Retrieval points
1. If the engine and hydraulic systems are not damaged, prepare the machine for travel.
Refer to: Preparing for Travel (Page 52).
2. If the engine cannot be run, the boom/dipper must be hoisted into position and secured. The procedure for
doing this will depend on the condition of the machine and its hydraulic circuits. For this reason you should
contact your JCB dealer for help and advice before attempting this work.
3. Disengage the park brake.
4. Retrieve the machine. Make sure you understand what the towing driver will be doing. Obey his instructions
and all relevant regulations. Remember if the engine or hydraulics are inoperative, steering will require
much greater effort. Also, once the brake accumulators have been exhausted, there will be no brake
pressure available.
A
A Lifting points
B Spacer bars
B
B
B
B
B
A
