10.7 Move Axis by Forceteq®
The Force Calibration function compensates the
magnetic cogging forces, the load force and the
friction forces of the LINAX®/ELAX® iron-core linear
motors and rotary motor axes ROTAX® from Jenny
Science.
Refer to chapter 13 Force Process Forceteq®

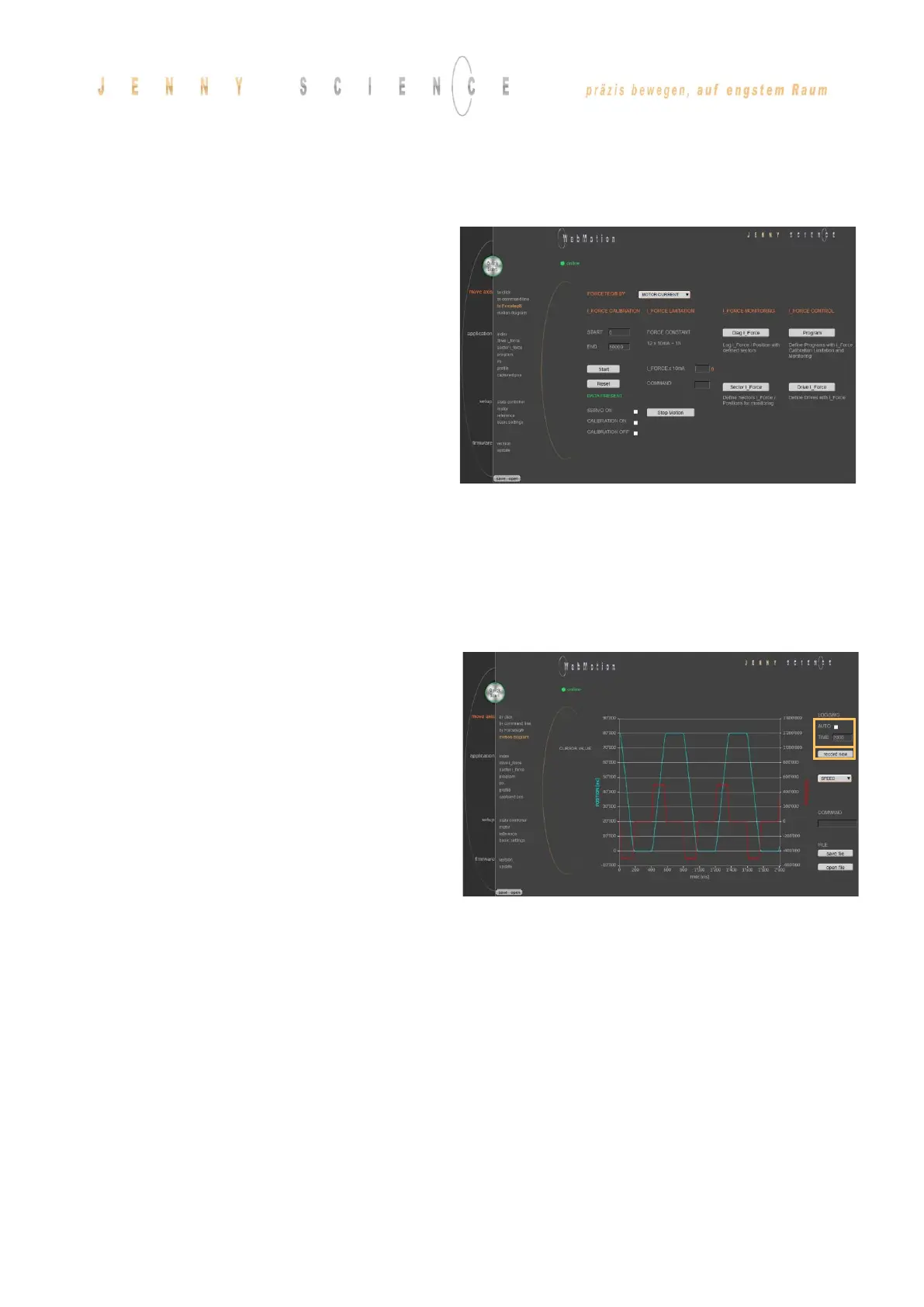

10.8 Move Axis Motion Diagram
Recording position, acceleration, IForce and
position deviation
LOGGING AUTO
Recording starts, as soon as the drive has started. The
record lasts until the drive and a possible program
have ended.
LOGGING TIME
Recording starts, as soon as the drive has started. The
record lasts as long as the time indicated (2-8000ms).
record new
Initialization for new recording sequence. Wait for
message “ready for recording next motion”. Start
motion in command panel (move axis / by click or by
command line) e.g. G44000.
