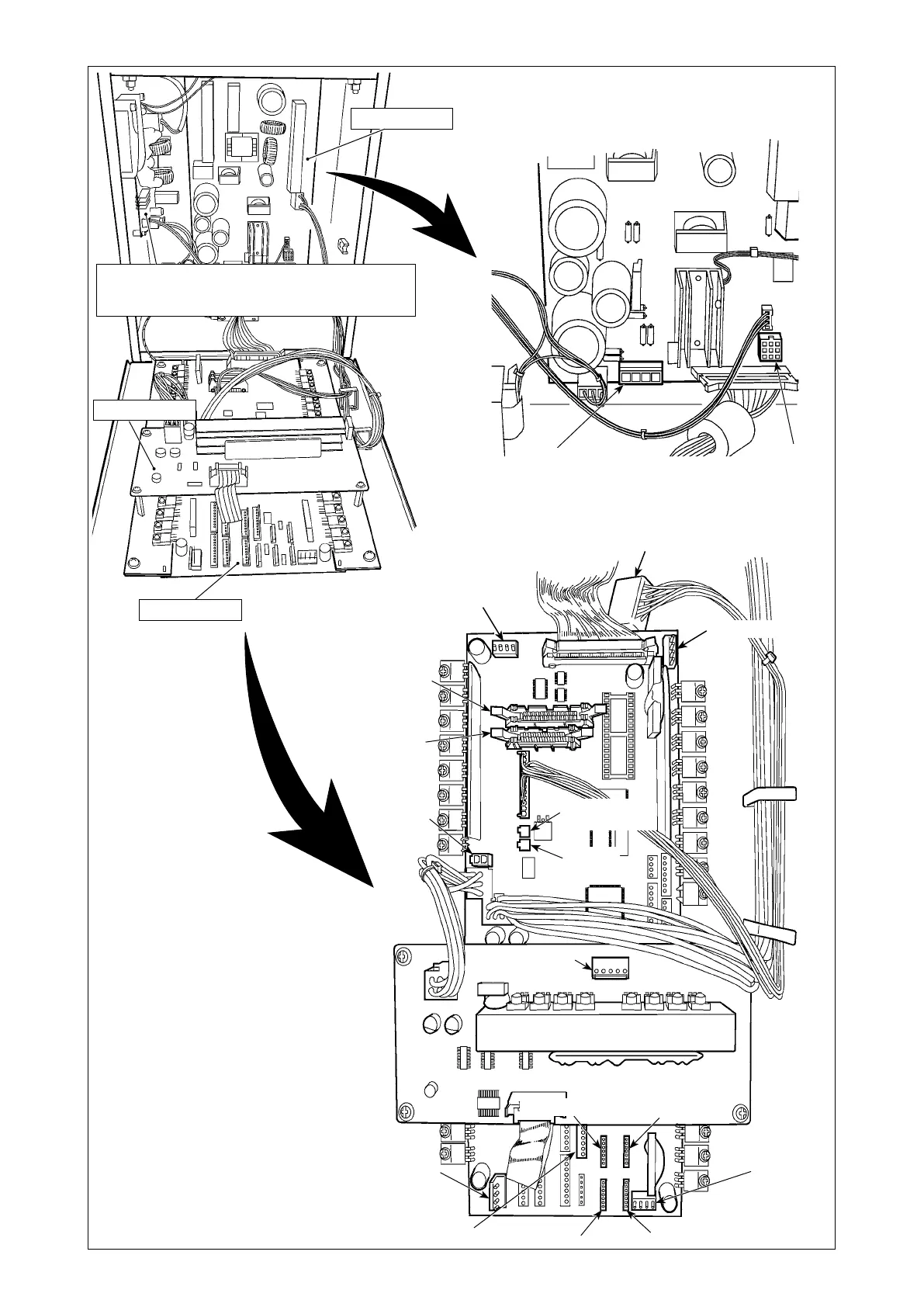

– 12 –
SDC p.c.b.
SUB p.c.b.
CN16 4P
CN14 9P
CN40 4P Red
CN88 10P
CN34 26P
CN38 20P
CN47 2P
CN39 2P
Y
ellow
CN52 2P
White
(Air-drive
n type)
CN22 5P
White
CN85 12P Black
(Air-driven type)
CN54 7P White
CN43 4P Blue
FL
T p.c.b.
FL
T
-T p.c.b (single phase 100 to 200V
、
three phase 200 to 240V)
FL
T
-S
p.c.b
(single
phase
200
to
240V)
p.c.b (single
phase
200
to
240V)
(single
phase
200
to
240V)
single phase
200
to
240V)
200
to
240V)
to 240V)
240V)
MAIN p.c.b.
CN42 4P Black
CN55 7P Black
CN56 7P
Y
ellow
CN41 4P White
CN53 7P Red
15
17
Table of Contents
Default Chapter
1
Instruction Manual
1
Table of Contents
2
Mechanical Section (with Regard to the Sewing Machine)
5
Specifications
5
Configuration
6
Installation
7
Installing the Electrical Box
7
Installing and Connecting the Power Switch
7
Installation of the Sewing Machine Head
9
Installing the Drain Receiver and the Head Support Rubber
9
Safety Switch
10
Installing the Throat Plate Auxiliary Cover
10
Installing the Panel
12
Attaching the Pedal Chain (for S Specification Only)
12
Installing the Thread Stand
12
Raising the Machine Head
13
Connecting the Cord
14
Installing the Motor Cover
17
Managing the Cord
17
Connecting the Pneumatic Components (Pneumatic Type Only)
18
Installing the Air Hose (Pneumatic Type Only)
20
Cautions for the Compressed Air Supply (Source of Supply Air) Facility
21
Installing the Eye Protection Cover
22
Preparation of the Sewing Machine
22
Lubrication
22
Attaching the Needle
22
Needle Size and Gauge
23
Adjustment
23
Gauge
23
Threading the Machine Head
24
Installing and Removing the Bobbin Case
24
Installing the Bobbin
25
Adjusting the Thread Tension
25
Intermediate Presser Height
26
Adjusting the Thread Take-Up Spring
26
Operation of the Sewing Machine
27
Sewing
27
Needle Thread Clamp Device
28
Operation Section (with Regard to the Panel)
30
Preface
30
When Using Ip-420
34
Name of each Section of IP-420
34
Buttons to be Used in Common
35
Basic Operation of IP-420
36
Start Sewing
37
LCD Display Section at the Time of Sewing Shape Selection
38
Sewing Shape Data Input Screen
38
Sewing Screen
40
Performing Sewing Shape Selection
42
Changing Item Data
44
Checking Pattern Shape
46
Performing Modification of Needle Entry Point
47
Editing the Thread Tension
47
Editing the Intermediate Presser Height
48
How to Use Temporary Stop
49
To Continue Performing Sewing from some Point in Sewing
49
To Perform Re-Sewing from the Start
50
When Setting of Sewing Product Is Difficult Because of Interruption of Needle Tip
51
Winding Bobbin Thread
52
When Performing Winding Bobbin Thread While Performing Sewing
52
When Performing Winding Bobbin Thread Only
52
Using Counter
53
Setting Procedure of the Counter
53
Count-Up Releasing Procedure
55
How to Change the Counter Value During Sewing
55
Performing New Register of Users' Pattern
56
Naming Users' Pattern
57
Performing New Register of Pattern Button
58
LCD Display Section at the Time of Pattern Button Selection
59
Pattern Button Data Input Screen
59
Sewing Screen
61
Performing Pattern Button No. Selection
63
Selection from the Data Input Screen
63
Selection by Means of the Shortcut Button
64
Changing Contents of Pattern Button
65
Copying Pattern Button
66
Changing Sewing Mode
67
LCD Display Section at the Time of Combination Sewing
68
Pattern Input Screen
68
Sewing Screen
70
Performing Combination Sewing
72
Selection of Combination Data
72
Creating Procedure of the Combination Data
73
Deleting Procedure of the Combination Data
74
Deleting Procedure of the Step of the Combination Data
74
Using the Simple Operation Mode
75
LCD Display When the Simple Operation Is Selected
76
Data Input Screen (Individual Sewing)
76
Sewing Screen (Individual Sewing)
79
Data Input Screen (Combination Sewing)
82
Sewing Screen (Combination Sewing)
84
Changing Memory Switch Data
86
Using Information
87
Observing the Maintenance and Inspection Information
87
Releasing Procedure of the Warning
88
Using Communication Function
89
Handling Possible Data
89
Performing Communication by Using the Media
89
Performing Communication by Using USB
89
Take-In of the Data
90
Taking in Plural Data Together
91
Performing Formatting of the Media
93
Using 2-Step Stroke Function
94
Setting of 2-Step Stroke Function
94
Setting of 2-Step Stroke Position
94
Motion of 2-Step Stroke Function
96
Operation at the Time of X/Y Motor Position Slip
98
When the Error Is Displayed During Sewing
98
When the Error Is Displayed after End of Sewing
99
When the Rest Switch Is Not Displayed
99
Memory Switch Data List
100
Data List
100
Initial Value List
106
Error Code List
108
Message List
115
Maintenance of Sawing Machine
118
Maintenance
118
Adjusting the Height of the Needle Bar (Changing the Length of the Needle)
118
Adjusting the Needle-To-Shuttle Relation
118
Height and Angle of the Work Clamp
120
Height of the Work Clamp (S Type)
120
Height of the Work Clamp (L Type)
121
Angle of the Work Clamp (All Models Excluding 1306L Type)
121
Adjusting the Vertical Stroke of the Intermediate Presser
122
The Moving Knife and Counter Knife
122
Needle Thread Clamp Device
123
Thread Breakage Detector Plate
123
Draining Waste Oil
123
Amount of Oil Supplied to the Hook
124
Replacing the Fuse
124
Changing the Voltage of 100,/200V
125
Replenishing the Designated Places with Grease
126
Location Where Exclusive Grease Is Provided
127
Points to be Applied with JUKI Grease a
127
Points to be Applied with JUKI Grease B
129
Applying Grease to Other Sections
130
Troubles and Corrective Measures (Sewing Conditions)
131
Optional
133
Table of Needle Hole Guide
133
Silicon Oil Tank
133
