2. Attachment
Application
It is effective to sew buttons at an equal interval between the buttons. (Including
two wood screws)
Prepare the spacer for Q124 and tting screws (2 pcs.) below or a spacer of
approximately 25 to 27 mm for adjusting height.
Name of part
Button spacer asm. (Q124)
Part No.
MAQ124000A0
3.2 1.2 165-58009 B
2.0 1.0 165-87305 E
2.2 1.0 165-87404 F
2.4 1.0 165-87503 G
2.4 1.2 165-87909 L
2.6 1.0 165-87602 H
2.6 1.2 165-88006 M
2.8 1.0 165-87701 J
2.8 1.2 165-88105 N
3.0 1.0 165-87800 K
3.0 1.2 165-88204 P
3.8 1.2 165-87107 C
For 2-holed button
Shape of button carrier
Standard type
Special order type
CodeDimension A (mm)
Distance between the
holes in a button
Dimension B (mm)
Diameter of set pin
Part No.

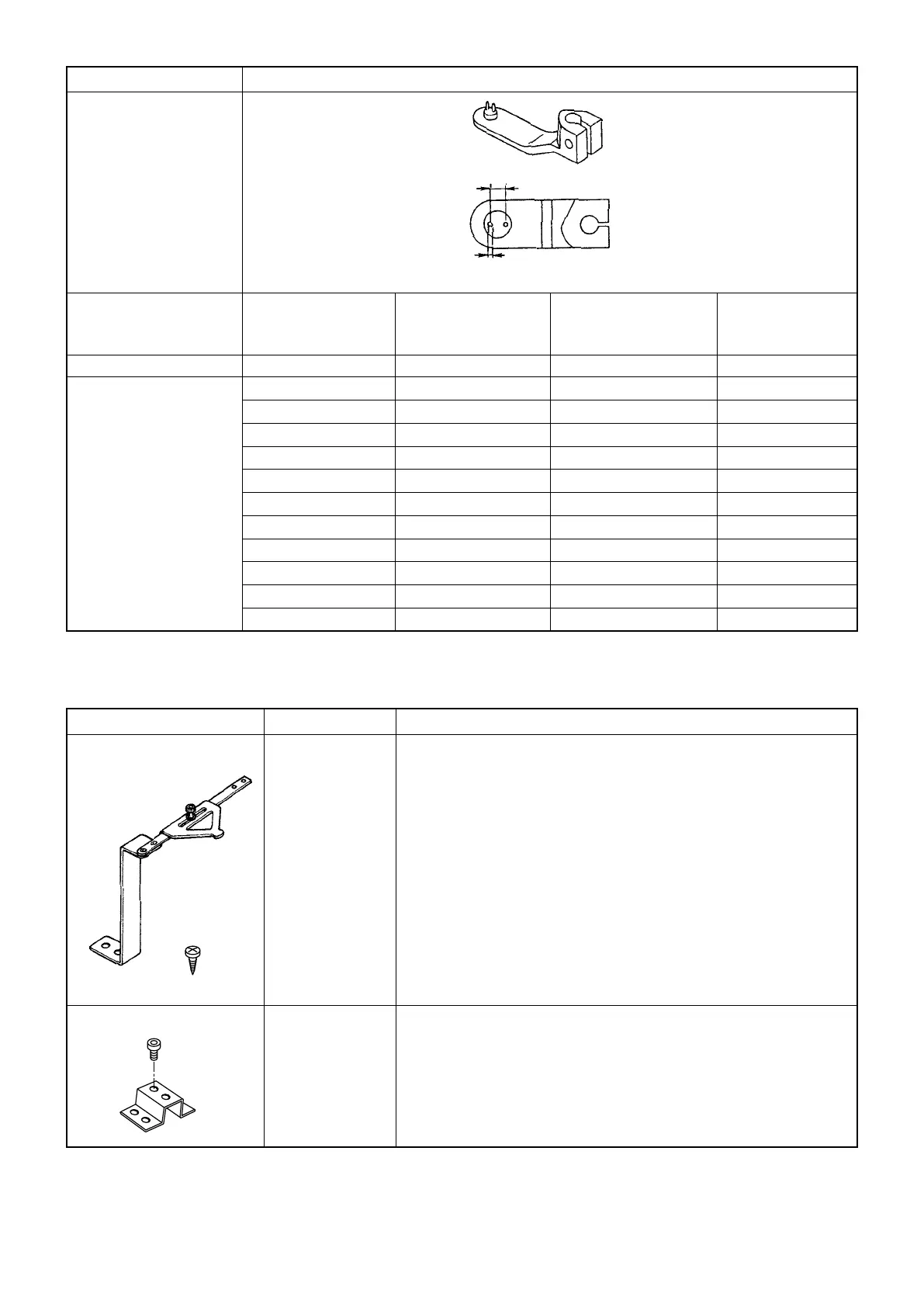

This is the spacer to install the button spacer (asm.) (Q124) to LK-1903AN/
BR35. Fix it on the sewing machine table with wood screws supplied with Q124
as accessories.
Screws are used to install button spacer (asm.) (Q124) to Q124 spacer.
Spacer for Q124
40018337
SL6041092TN x 2
×
2
×
2
B
A
