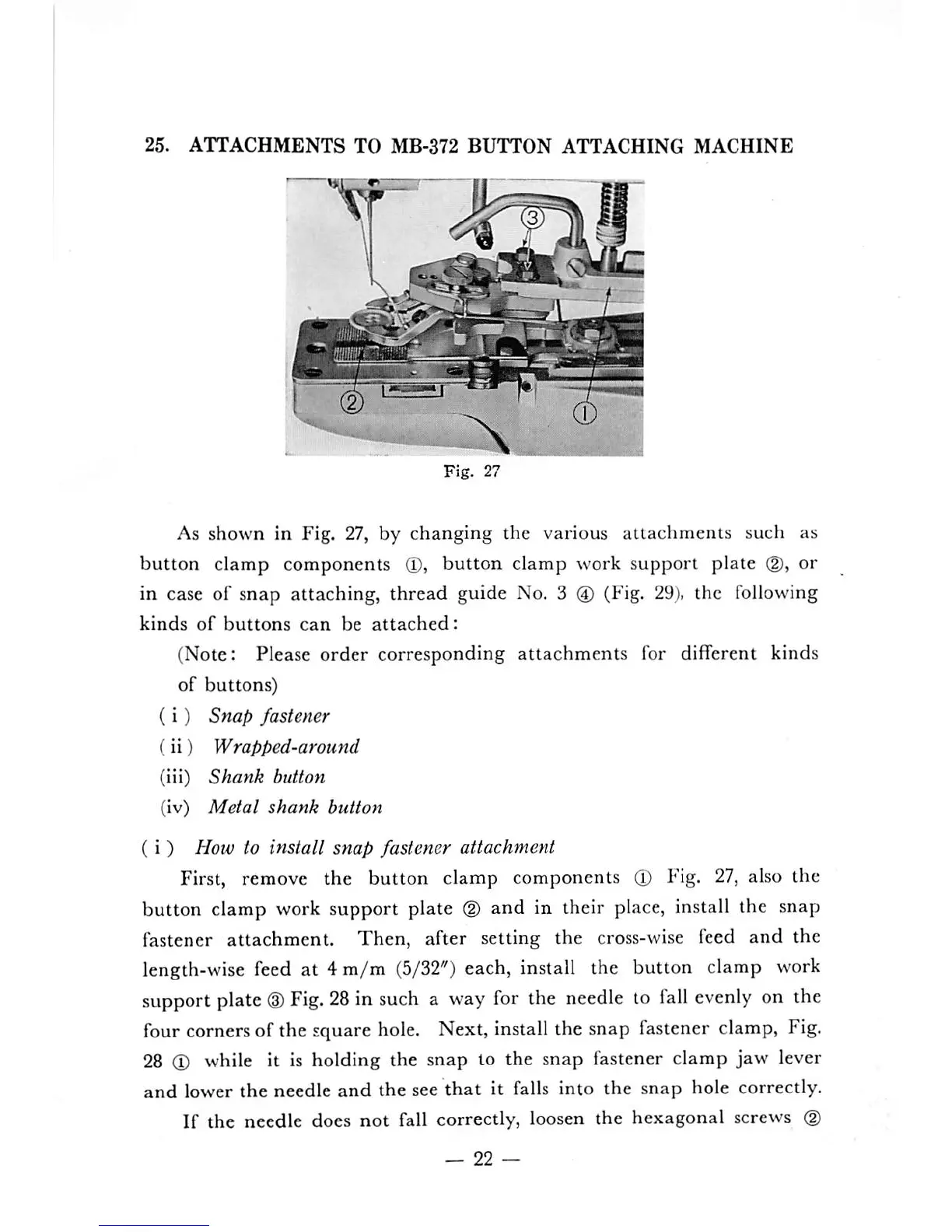

25.
ATTACHMENTS
TO
MB-372
BUTTON
ATTACHING
MACHINE
As shown In Fig. 27, by
changing
the various
attachments
such as
button
clamp
components
(T),
button
clamp
work support plate or
in case of snap attaching, thread guide No. 3 ® (Fig.
29).
the following
kinds
of
buttons
can
be
attached:
(Note: Please order corresponding attachments for different kinds
of
buttons)
(i)
Snap
fastener
(ii)
Wrapped-around
(iii)
Shank
button
(iv)
Metal
shank
button
(i)
How to
install
snap
fastener
attachment
First, remove the button clamp components
(1)
Fig. 27, also the
button clamp work support plate
(g)
and in their place, install the snap
fastener attachment. Then, after setting the cross-wise feed
and
the
length-wise feed at 4 m/m
(5/32")
each, install the button clamp work
supportplate®
Fig.
28
in
such
a
way
for
the
needle
to
fall
evenly
on the
four cornersof the square hole. Next, install the snap fastener clamp. Fig.
28
(D
while it is holding the snap to the snap fastener clamp jaw lever
and
lower the needle
and
the see
that
it falls into the
snap
hole correctly.
If
the needle does not fall correctly, loosen the hexagonal screws ©
—
22
—
