– 16 –
4
3
5
12
2
#
. FOR THE OPERATOR

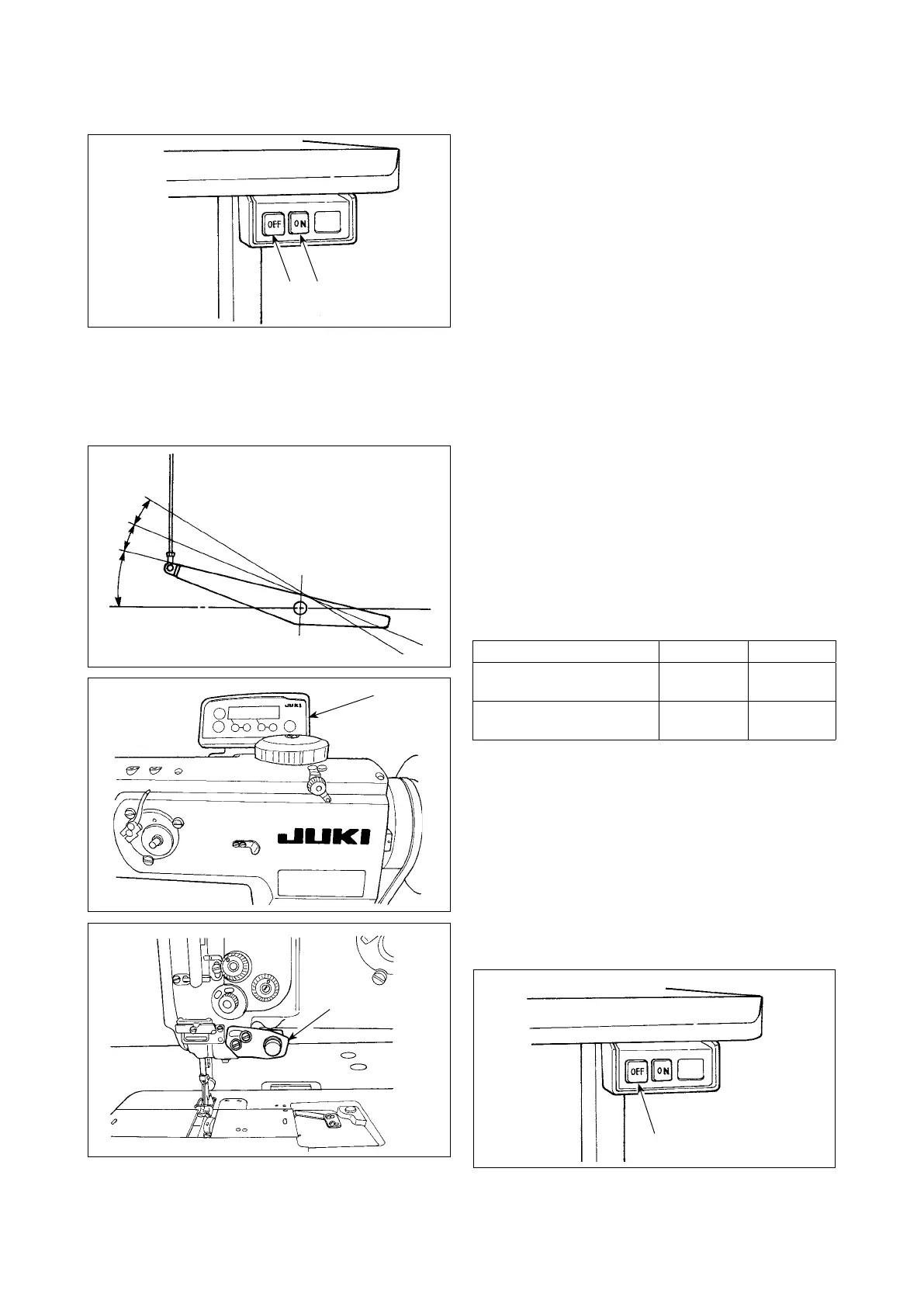

1. Operating procedure of the sewing machine
1) Press ON button
1
of the power switch to turn
ON the power.
(Caution) If the power indication LED does not
light up even when turning ON the power
switch, immediately turn OFF the power
switch and check the voltage.
In addition, in such a case as this, re-turn
ON the power switch when 2 to 3 min-
utes or more have passed after turning
OFF the power switch.
2) For some machine head installed, the needle bar automatically rotates to its upper position if the needle
bar is not there.
(Caution) WhenthepowertothesewingmachineisturnedONforthersttimeafterinstallation,itmay
require a longer time to get ready for operation since it carries out initialization procedure. In
addition, be sure not to place hands or any other article under the needle since the needle bar
may move when the power is turned ON.
3) When depressing front part
3
of the pedal, the
sewing machine rotates at the number of revolu-
tions in accordance with the depressing amount.
When the pedal is returned to the neutral posi-
tion, the sewing machine stops.
4) When lightly depressing back part
4
of the
pedal, the presser goes up. (PFL type only)
5) When strongly depressing back part
5
of the
pedal, thread trimming is performed.
8) When sewing is completed, press OFF button
2
of
the power switch to turn OFF the power switch after
conrming that the sewing machine has stopped.
7) For some types of the sewing machine heads, re-
verse feed is performed by pressing touch-back
switch
7
. (The gure given illustrates the case of
the LU-1510N-7.)
PFL KFL
Presser foot operation
by pedal
Enabled Disabled
Pedal depressing depth
for thread trimming
Deep Shallow
6) For some types of the sewing machine heads, it
is possible to program various sewing patterns,
using the operation panel, such as the reverse
feed stitching at sewing start and that at sewing
end. When you use CP-18
6
with your sewing
machine, refer to
"
#
-3. Operating procedure of
the sewing pattern"
p.18
for details. When you
use any other operation panel with your sewing
machine, refer to the Instruction Manual for the
respective operation panel. (The gure given il-
lustrates the case of the LU-1510N-7.)
7
6
