JUKI SC-922 User Manual

– 50 –

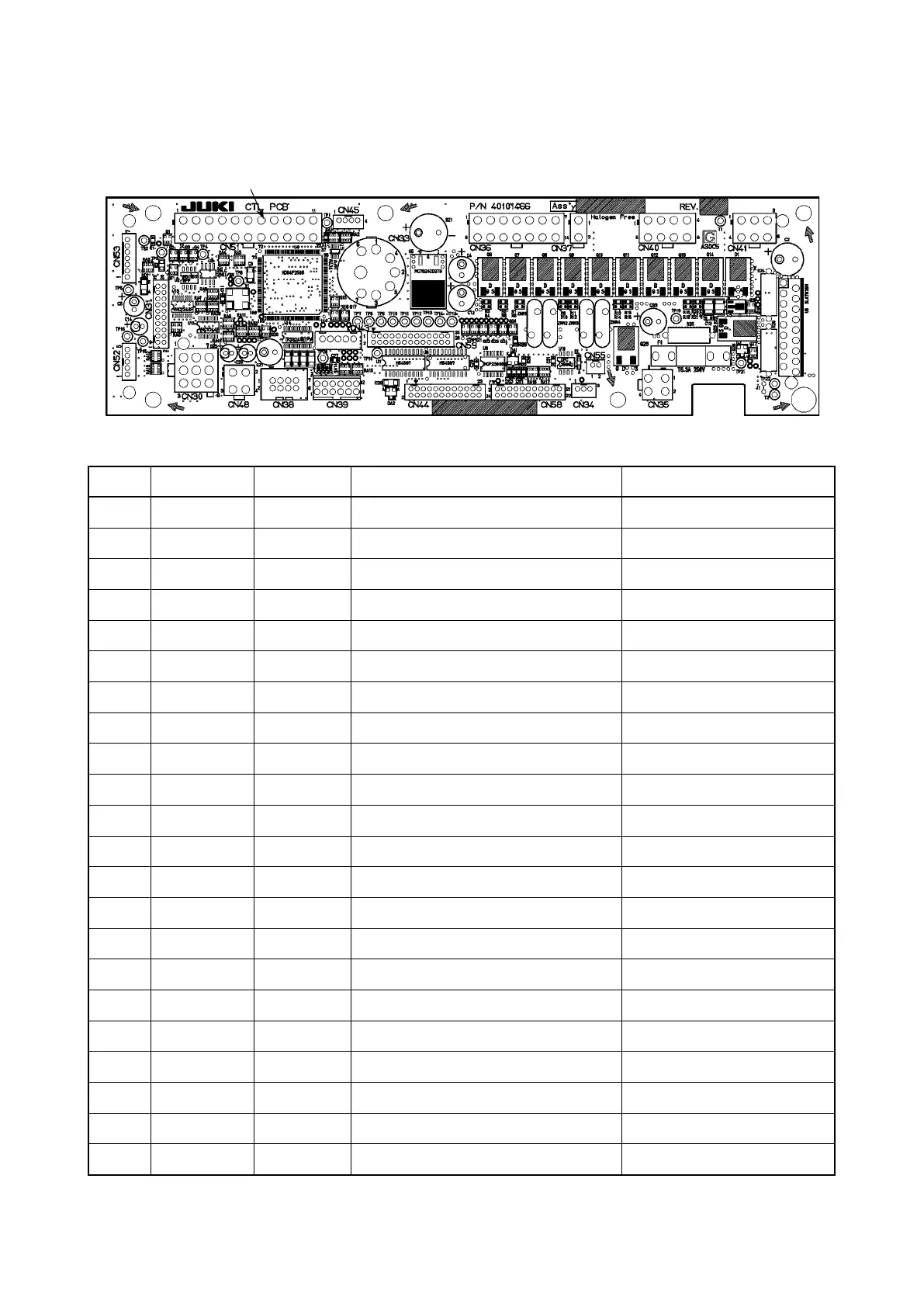

14. External input / output connector
A switchable general-purpose input/output is provided at function setting No. 12 for an external output
connector
1
(CN51).
(Caution) When using the connector, note that the engineer who has the electrical knowledge has to work.
CN51 Signal name Input/output Description Electric spec.
1 GND GND
2
GND
GND
3 MA Output Rotation signal 360 pulses/rotation DC5V
4 OPI9 Input Option 9 input
DC5V
,-
5mA
5 OPI10 Input Option 10 input
DC5V
,-
5mA
6 OPI11 Input Option 11 input
DC5V
,-
5mA
7
OPI12
Input Option 12 input
DC5V
,-
5mA
8 OPI13
Input Option 13 input
DC5V
,-
5mA
9 OPI14 Input Option 14 input
DC5V
,-
5mA
10 OPI15 Input Option 15 input
DC5V
,-
5mA
11 OPI16 Input Option 16 input
DC5V
,-
5mA
12 +24V Power source
13 +24V Power source
14 +5V Power source
15 OPO17 Output Option 17 output NPN open collector
16 OPO18 Output Option 18 output NPN open collector
17 OPO19 Output Option 19 output NPN open collector
18 OPO20 Output Option 20 output NPN open collector
19 OPO21 Output Option 21 output NPN open collector
20 OPO22 Output Option 22 output NPN open collector
21 OPO23 Output Option 23 output NPN open collector
22 OPO24 Output Option 24 output NPN open collector
Table of assignment of connector and signal
JUKI genuine part No. Connector : Part No. HK034610220
Pin contact : Part No. HK03464000A
