Juniper J-Series Getting Started Guide

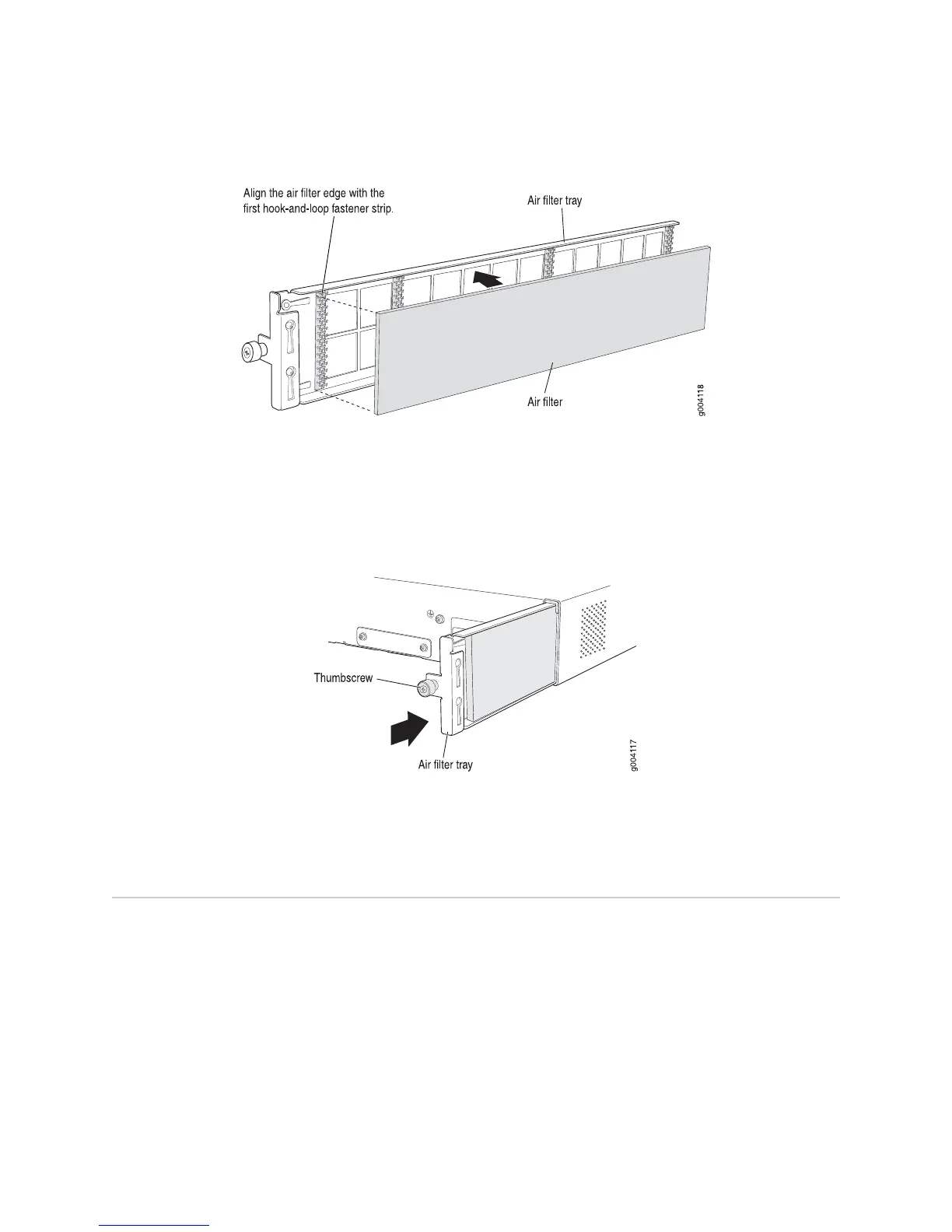

Figure 100: Placing the Air Filter on the Air Filter Tray
6. Press down on the filter until it is firmly seated against the bottom of the tray.
7. Hold the filter tray with the thumbscrew so that its sheet metal side faces the
power supply fan exhaust. The air filter tray is designed to prevent it from being
inserted incorrectly (see Figure 101 on page 208).
Figure 101: Inserting the Air Filter Tray on J2350 Routers
8. Slide the tray fully into the air filter opening.
9. Tighten the thumbscrew to the chassis.
Replacing Air Filters on J4350 and J6350 Routers
The front panel of J4350 and J6350 Services Routers contains an air intake grid with
a protective cover and a filter, as shown in Figure 102 on page 209.
208 ■ Replacing Air Filters on J4350 and J6350 Routers
J2320, J2350, J4350, and J6350 Services Router Getting Started Guide
