J4350 and J6350 Front Panel
The front panel of the Services Router (see Figure 19 on page 32) allows you to install
or remove PIMs, view router status LEDs, access the console port, and perform simple
control functions.

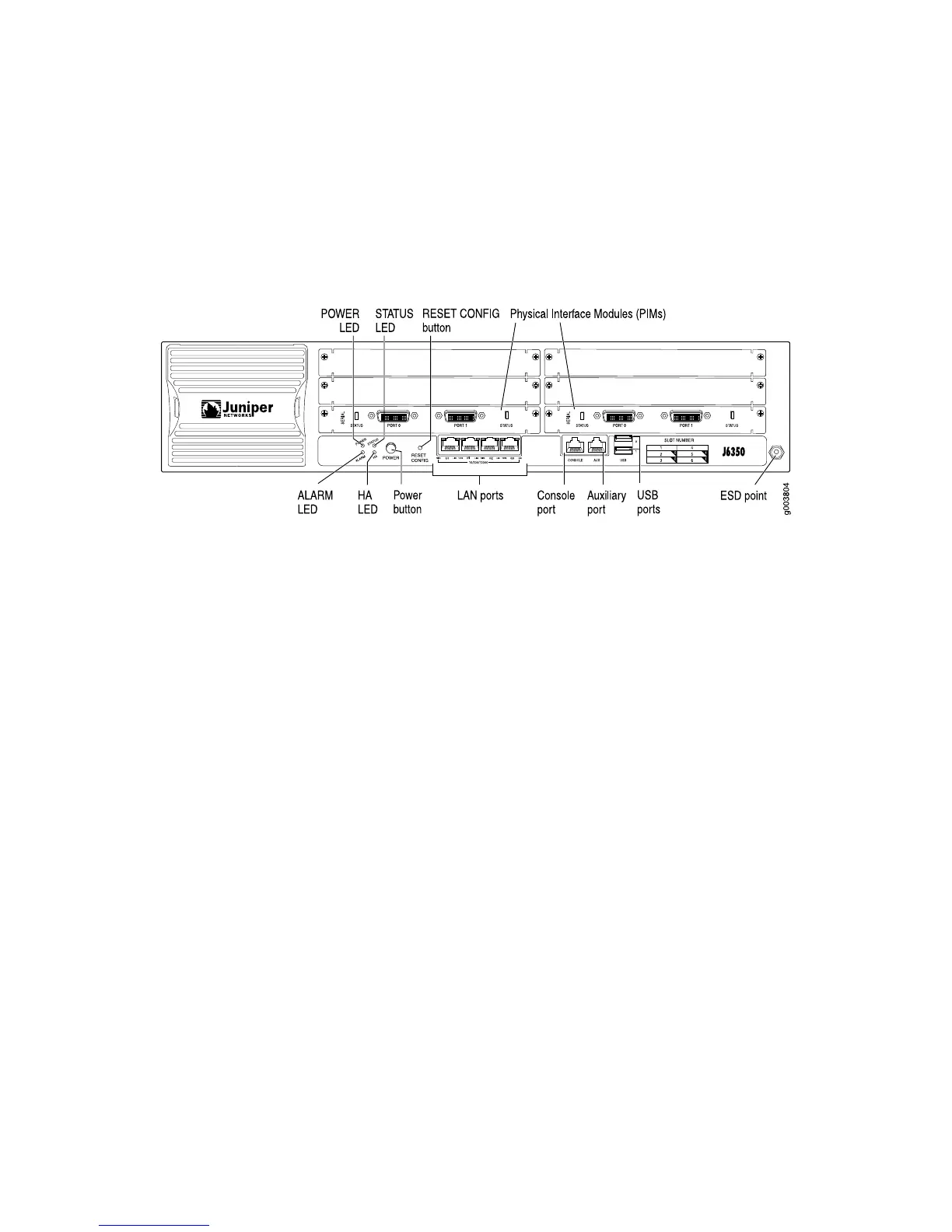

Figure 19: Front of J4350 and J6350 Chassis
The components of the front panel, from left to right, are described in the following
sections:
Physical Interface Modules (PIMs) on page 32
Power Button and POWER LED on page 33
STATUS LED on page 34
ALARM LED on page 34
HA LED on page 35
RESET CONFIG Button on page 35
Built-In Gigabit Ethernet Ports on page 35
Console Port on page 36
AUX Port on page 36
USB Port on page 36
Physical Interface Modules (PIMs)
Physical Interface Modules (PIMs) provide the physical connection to various network
media types. For information about individual PIMs, see Field-Replaceable
PIMs on page 46.
For pinouts of PIM cable connectors, see Network Cable Specifications and Connector
Pinouts on page 225. For PIM replacement instructions, see Replacing a
PIM on page 174.
32 J4350 and J6350 Services Router Hardware Features
J2320, J2350, J4350, and J6350 Services Router Getting Started Guide
