Jupiter J100 User Manual

Chapter 1
1
INTRODUCTION
Jupiter Systems J-Series Video Wall Controllers (referred to as JVWC hereafter) are highly stable video wall
processors which fully support 4K UHD inputs and outputs. Jupiter offers the J400 and J600 chassis based
models as well as compact, fixed interface J100 models to provide affordable support for a variety of video wall
applications.

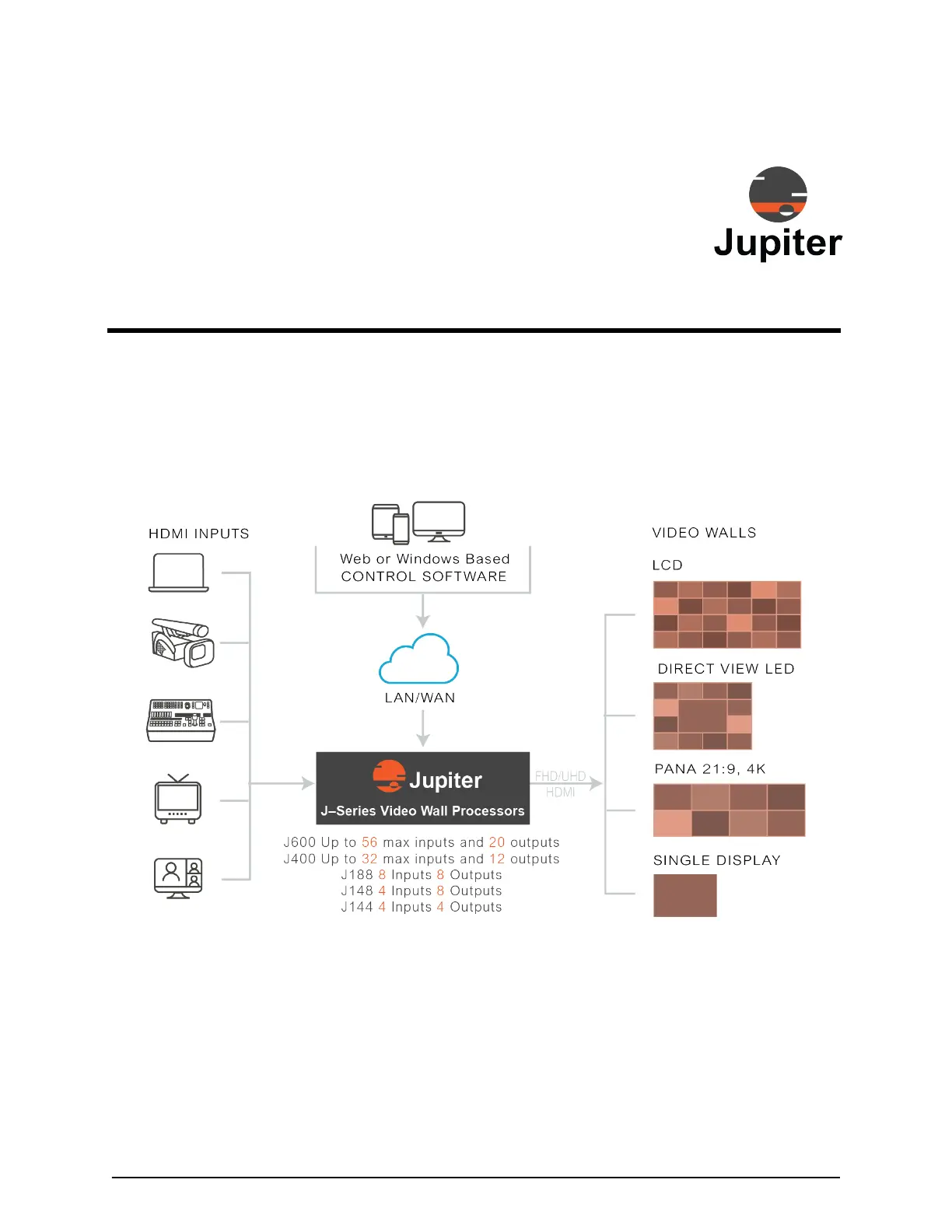

Figure 1.1: J-Series architecture including the modular chassis and J100
The J-Series family has models which support from four inputs and four outputs with the compact J144 model,
to 56 inputs and 20 outputs with the J600 chassis.
LightSpeed technology powers J-Series video wall controllers providing ultra-fast capture, zoom, transmission,
and framing of signals. With this powerful LightSpeed technology, signal transfers from a signal source to
display is under 16ms.
With their own hardware based LightSpeed operating system, all J-Series models are reliable and
straightforward and able to quickly display information source in multi-window mode.

Jupiter J100 Specifications

General

Brand	Jupiter
Model	J100
Category	Controller
Language	English
