Jupiter J100 User Manual

J400/600 Chassis Based Video Wall Controllers
J100 Hardware Manual 3

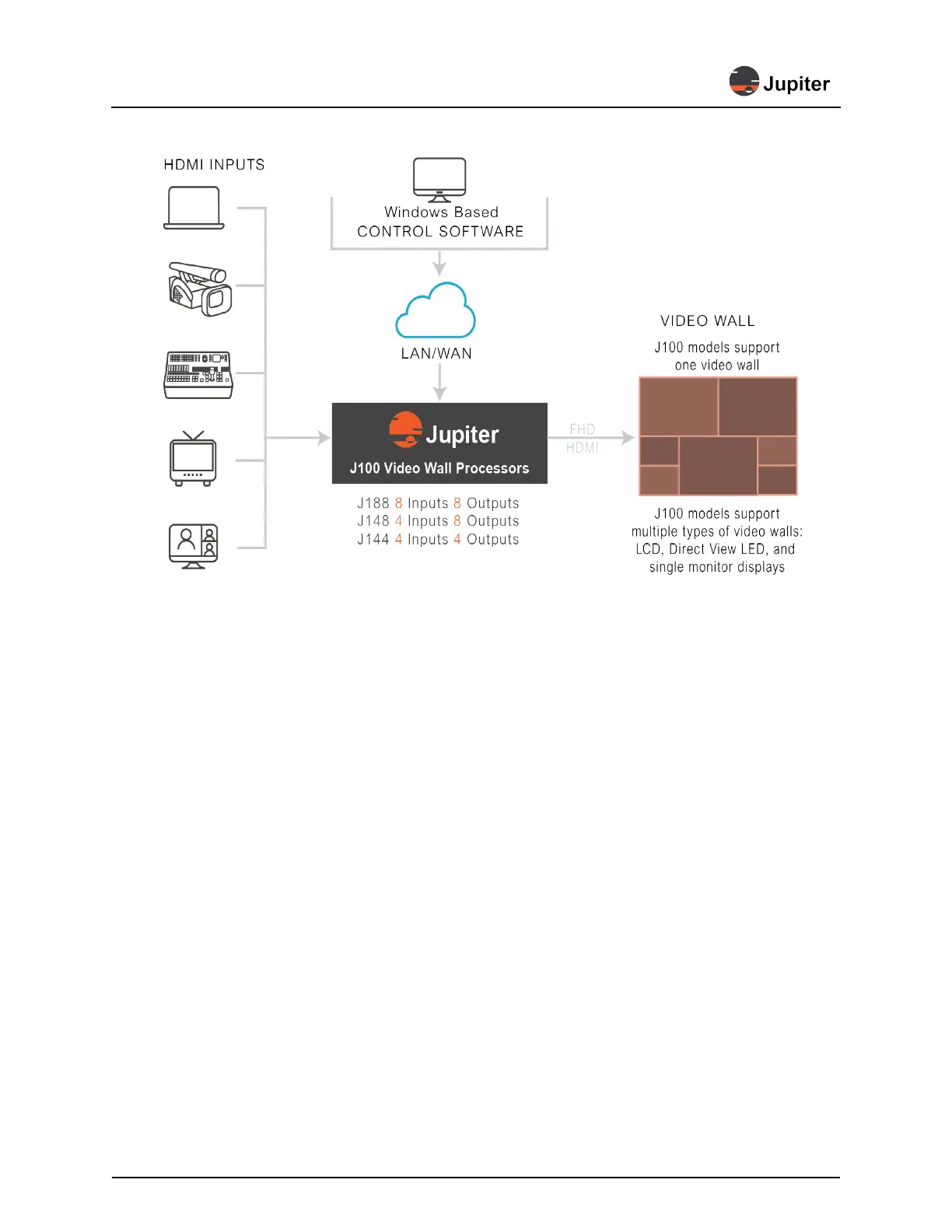

Figure 1.4: J100 architecture
1.2 J400/600 Chassis Based Video Wall Controllers
All J400/J600 and J100 models are 19" units designed to fit into standard 19" mounting racks. The J600 is
6RU (rack units), the J400 is 4RU, and the J100 models are 1RU. Each J-Series model supports a different
amount of inputs and outputs. The modular chassis (J400/J600) provide a flexible number of input and output
boards while the J100 are fixed port 1RU models. The J144 supports four inputs and four outputs, while the
J600 supports up to 56 inputs and 20 outputs.
The J400/J600 models which support up to four video walls are described in the J400/J600 Video Wall
Controller Hardware Manual. These J400/J600 chassis models are managed from the J400/J600 Client
software, a Web based client.

Jupiter J100 Specifications

General

Brand	Jupiter
Model	J100
Category	Controller
Language	English
