33

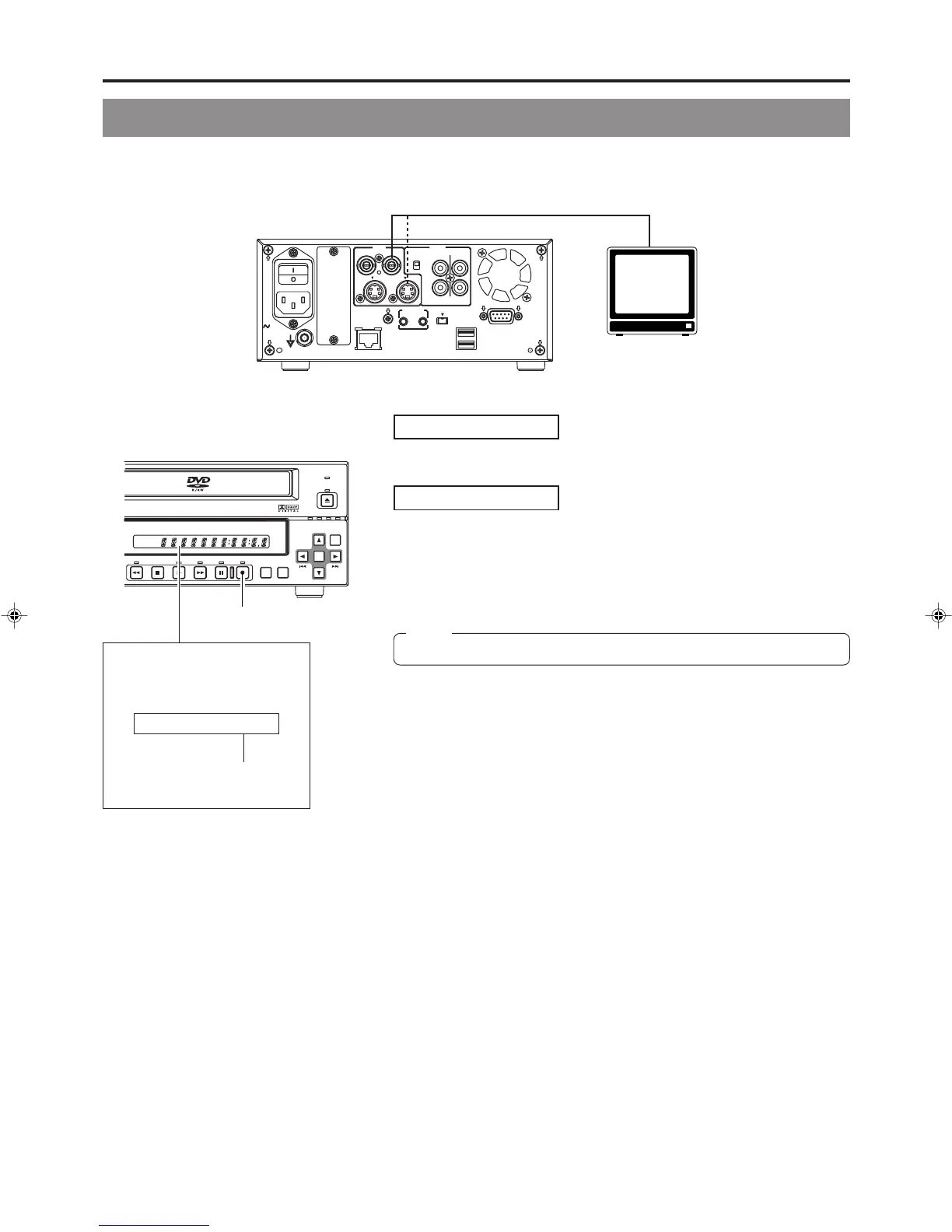

Checking the Video Input
Use the monitor connected to the VIDEO LINE OUT or Y/C OUT terminal to confirm that the input video signal is as required.
The following procedure will allow you to monitor the quality at which the video will be recorded to a DVD.
VIDEO
POWER
MAIN
FOR SERVICE
FOOT SW
AUDIO
REMOTE
IN
IN
OUT
USB
1
2
+
4dB
-
8dB
OUT
DV IN/OUT
LINE
CH1
CH2
INPUT
LEVEL
Y/C
AC IN
Y/C
VIDEO LINE OUT terminal
Monitor screen
Signal Connections
REV
STOP PLAY FWD PAUSE REC
BUSY
OPEN/CLOSE
TOP
MENU MENU
OPTION DV Y/C LINE
SET UP
TITLE
DOLBY DIGITAL
LPCM MPEG
CHAPTER
SET
Connect the VIDEO LINE OUT or Y/C OUT terminal to the monitor.
Procedure
 Press and hold the REC button for at least 2 seconds while the DVD
recorder is stopped or inserted with no disc. While this button is being
held, input signal encoded/decoded in MPEG will be output via the VIDEO
OUT or Y/C OUT terminal on the rear panel.
● This function allows the quality of the video to be confirmed before recording
to a DVD.
REC button
Note
Audio will be muted at this time.
The setting value of the
ENCODER QUALITY is
indicated on the LCD display.
ENCODE XX
UXP, XP, SP, LP,
EP, DLP, DEP
