Specifications
Recording format : DVD Video Version 1.1
Disc format : ISO9660-compatible UDF
Recordable media : DVD-R For General Version 2.0
DVD-RW Version 1.1
Recording signals : Must conform to DVD Video Format
䡵 Video Signals
Line input : 1.0 V(p-p), 75 Ω unbalanced
Y/C input :
Y signal = 1.0 V(p-p), 75 Ω unbalanced
C signal = 0.286 V(p-p), 75 Ω unbalanced (NTSC)
C signal =0.3 V (p-p), 75 Ω unbalanced (PAL)
Line output : 1.0 V(p-p), 75 Ω unbalanced
Y/C output :
Y signal = 1.0 V(p-p), 75 Ω unbalanced
C signal = 0.286 V(p-p), 75 Ω unbalanced (NTSC)
C signal = 0.3 V(p-p), 75 Ω unbalanced (PAL)
Encoding format : ISO/IEC13818-2 (MPEG-2 video)
Quantization : 8 bit
Sampling rate : 13.5 MHz
䡵 Audio Signals
Line input : –8 dBs, 10 kΩ minimum, unbalanced
+4 dBs, high impedance, unbalanced
Line output : –8 dBs, 1 kΩ minimum, unbalanced
Standard level : –20 dBFS
Dynamic range : 85 dB
Recording format :
LPCM / DOLBY DIGITAL / MPEG (PAL only)
Quantization : 16 bit
Sampling rate : 48 kHz
Number of channels :2
䡵 DV Interface
I/O : IEEE1394
䡵 General
FOOT SWITCH terminal : 3.5 mm Monaural mini jack
(OPEN/SHORT control
Operation follows menu settings.)
Network terminal : RJ-45 (Category5),
100 BASE-Tx
USB terminal : USB 1.1 × 2
Power supply : AC 100V to 240 V
`
, 50 Hz / 60 Hz
Power consumption : 1.0 A to 0.45 A
Weight : 4.8 kg (device only)
Dimensions : 212 mm (w) × 352 mm (d) × 88 mm (h)
(not including feet and other protrusions)
Permissible operating temperature : 5 °C to 35 °C
Permissible operating humidity : 20 % to 80 % RH
Permissible storage temperature : –20 °C to 60 °C
Permissible storage humidity : 5 % to 80 % RH
䡵 Accessories
Instruction manual ................................................................ ×1
Power cord ........................................................................... ×2
Ferrite core (for USB cable) ................................................. ×1
(☞ Page 23)
* Design and specifications are subject to change without notice.

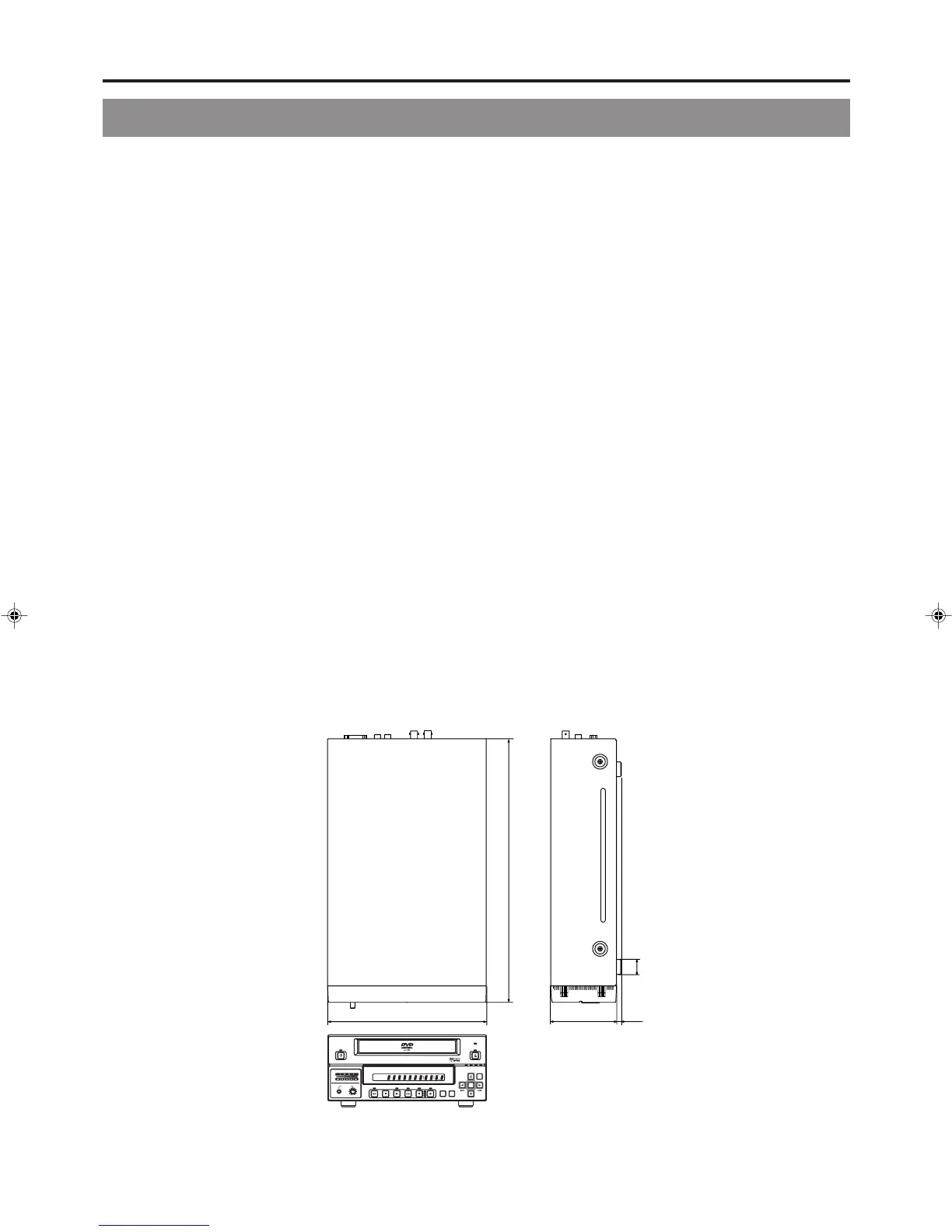

䡵 External Dimensions (Unit: mm)
SDSP3
SDSP3
212
88 6.5
20
352
OPERATE
PHONES REV
STOP PLAY
DVD RECORDER BD-X201M
FWD PAUSE REC
BUSY
OPEN/CLOSE
TOP
MENU MENU
OPTION DV Y/C LINE
SET UP
AUDIO
CH1
CH2
TITLE
DOLBY DIGITAL
LPCMMPEG
CHAPTER
SET
