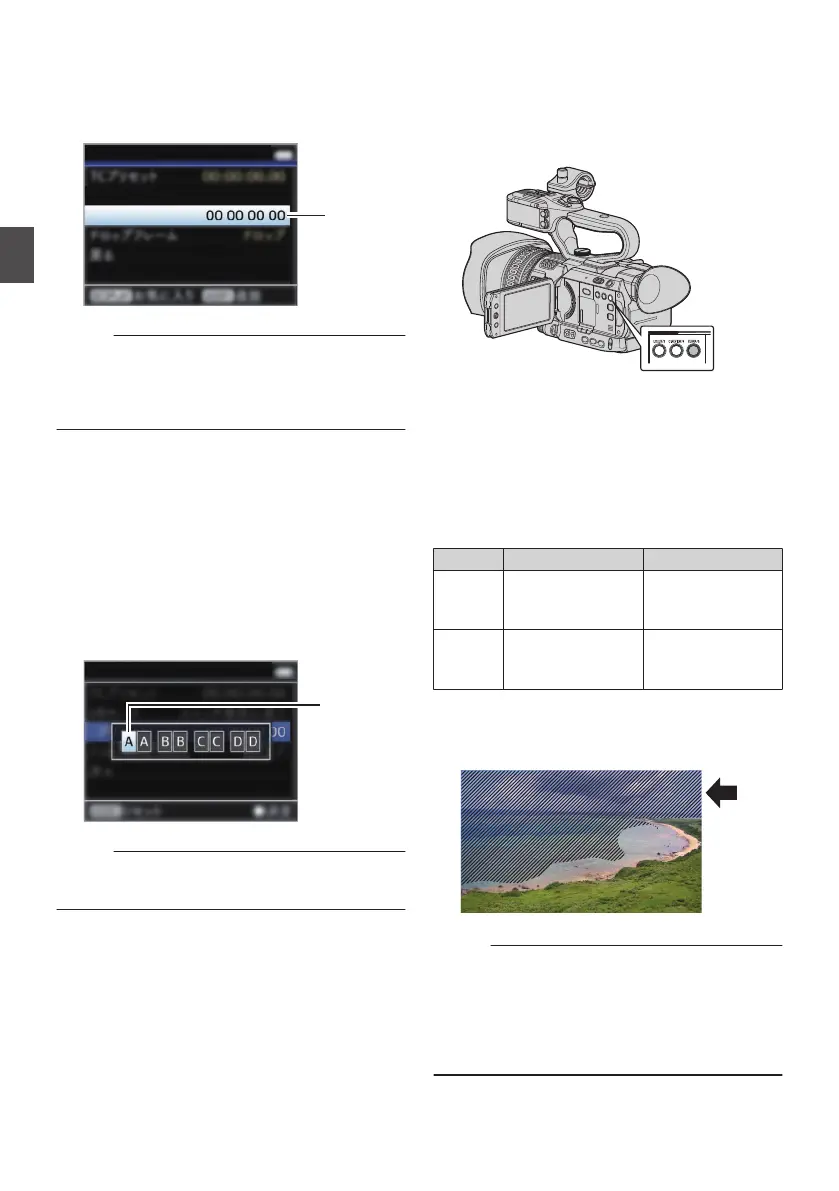

1
Set [Main Menu] B [
TC/UB] B [UB Mode] to
“Preset”, and press the Set button (R).
(A P
103 [ UB Mode ] )
The [UB Mode] setting screen appears.
.
Memo :
0
When [TC/UB] B [TC Generator] is set to
“Regen”,
the parameter is displayed as “Regen”
and cannot be selected.
(A P
103 [ TC Generator ] )
2
Select [Main Menu] B [TC/UB] B “Preset
”
and press the Set button (R).
The [Preset] setting screen appears.
3
Use the cross-shaped button (HI)
to place
the cursor at the item to set, then use the
cross-shaped button (JK) to change the
values.
Numbers between 0 and 9 or alphabets
between A and F can be specified for the user’s
bit.
.
Memo :
0
Press the [C.REVIEW/4] button to reset each digit
to “0”. The cursor moves to the left.
4
Check the values and press the Set button
(R).
0
The
user’s bit is set and the screen returns to
[TC/UB].
0
To cancel the setting, press the
[CANCEL]
button.
5
Press the [MENU] button.
Returns to the normal screen.
Setting Zebra Pattern
When the luminance level range for displaying
zebra patterns is specified, diagonal lines (zebra
pattern) are displayed at areas with the specified
luminance levels during shooting.
.
1
Set the zebra display pattern.
Select the display pattern in [LCD/VF] B
[Shooting Assist] B [Zebra].
2
Specify the brightness (luminance) level
range for displaying zebra pattern.
Specify the upper and lower limits of the
luminance level in
[LCD/VF] B [Shooting
Assist] B [Zebra] B [Top] and [Bottom].
Item Settings Options
Top Upper luminance
limit for displaying
[Zebra]
5% - 100%, Over
(in
5 % increments)
Bottom Lower luminance
limit for displaying
[Zebra]
0% - 100% (in 5 %
increments)
3
Display the zebra pattern.
Press the [ZEBRA/5]
button to display the zebra
pattern in the specified range.
.
Memo :
0
“Zebra”
is assigned to the [ZEBRA/5] button in
factory default.
0
“Zebra”
can also be assigned to other user
buttons.
(A P
39 [Assignment of Functions to User
Buttons] )
72
Setting the User’s Bit
Shooting
To Next Page
