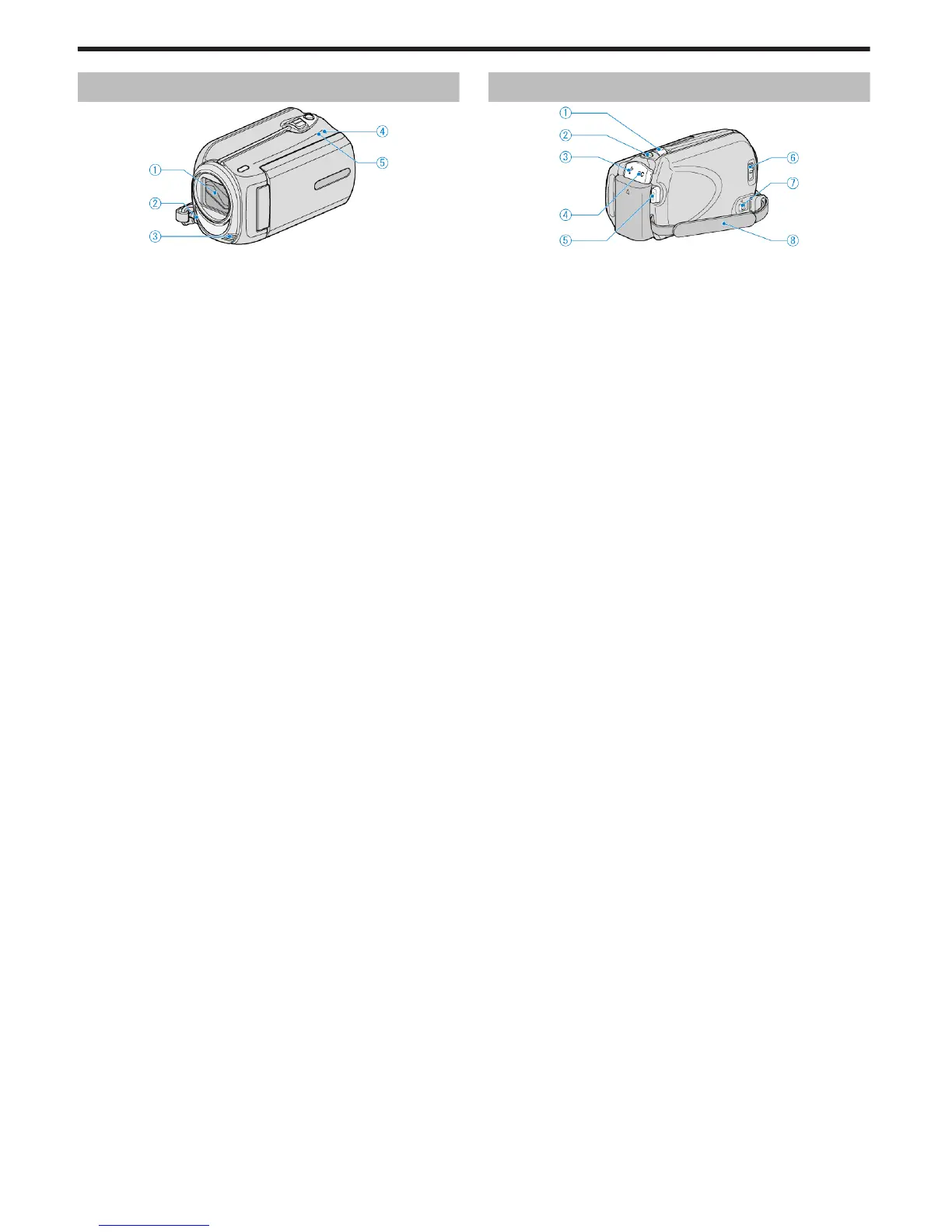

Front
.
1
Lens/Lens Cover
●
Do not touch the lens and lens cover.
2
Light
●
Turn on the light when shooting in dark places.
"LIGHT" （A P.84）
3
Stereo Microphone
●
Do not cover the microphone with your fingers during video recording.
4
POWER/CHARGE Lamp
●
Lights up: Power "ON"
●
Blinks: Charging in progress
●
Goes out: Charging finished
5
ACCESS Lamp
●
Recording or playback is in progress when the lamp lights up or blinks.
Do not remove the battery pack, AC adapter, or SD card.
Rear
.
1
Zoom/Volume Lever
●
During shooting: Adjusts the shooting range.
●
During playback (index screen): Changes the number of images to dis-
play.
●
During video playback: Adjusts the volume.
2
SNAPSHOT (Still image recording) Button
●
Takes a still image.
3
USB Terminal
●
Connects to PC using a USB cable.
4
DC Terminal
●
Connects to an AC adapter to charge the battery.
5
START/STOP (Video recording) Button
●
Starts/stops video recording.
6
Lens Cover Switch
●
Opens and closes the lens cover.
7
Grip Belt Release Lever
●
Allows the grip belt to be removed and used as a hand strap.
8
Grip Belt
●
Pass your hand through the grip belt to hold this unit firmly.
"Grip Adjustment" （A P.13）
Names of Parts
108
