JVC HR-S5000 User Manual

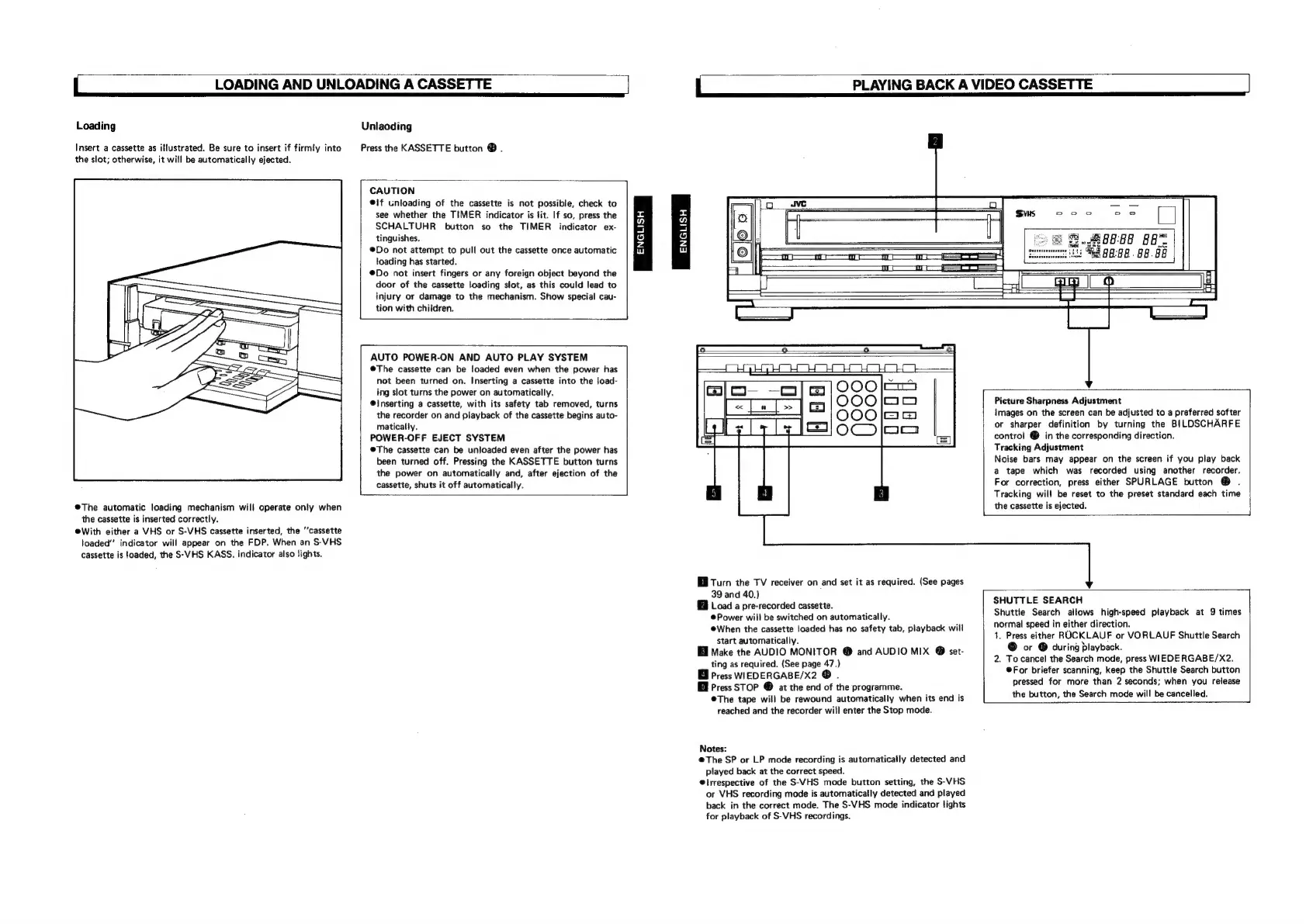

| LOADING AND UNLOADING A CASSETTE
Loading
Insert a cassette as illustrated. Be sure to insert if firmly into
the slot; otherwise, it will be automatically ejected.
@The automatic loading mechanism will operate only when
the cassette is inserted correctly.
eWith either a VHS or S-VHS cassette inserted, the ‘cassette
loaded’ indicator will appear on the FDP. When an S-VHS
cassette is loaded, the S-VHS KASS. indicator also lights.
Unlaoding
Press the KASSETTE button @ .
CAUTION
if Unloading of the cassette is not possible, check to
see whether the TIMER indicator is fit. If so, press the
SCHALTUHR button so the TIMER indicator ex-
tinguishes.
®Do not attempt to pull out the cassette once automatic
loading has started.
@Do not insert fingers or any foreign object beyond the
door of the cassette loading slot, as this could lead to
injury or damage to the mechanism. Show special cau-
tion with children.
AUTO POWER-ON AND AUTO PLAY SYSTEM
@The cassette can be !oaded even when the power has
not been turned on. Inserting a cassette into the load-
ing slot turns the power on automatically.
@inserting a cassette, with its safety tab removed, turns
the recorder on and playback of the cassette begins auto-
matically.
POWER-OFF EJECT SYSTEM
The cassette can be unloaded even after the power has
been turned off. Pressing the KASSETTE button turns
the power on automatically and, after ejection of the
cassette, shuts it off automatically.
ENGLISH
ENGLISH
| PLAYING BACK A VIDEO CASSETTE
Jvc
2] po
J
ov
20088
887
© —— ee he O8:88. 88.88
il mt mT
HB Turn the TV receiver on and set it as required. (See pages
39 and 40.)
BB Load a pre-recorded cassette.
®@Power will be switched on automatically.
@When the cassette loaded has no safety tab, playback will
start automatically.
EB Make the AUDIO MONITOR @ and AUDIO MIX @ set-
ting as required. (See page 47.)
Ei Press WIEDERGABE/X2 ® .
El Press STOP @ at the end of the programme.
@The tape will be rewound automatically when its end is
reached and the recorder will enter the Stop mode.
Notes:
@The SP or LP mode recording is automatically detected and
played back at the correct speed.
@trrespective of the S-VHS mode button setting, the S-VHS
or VHS recording mode is automatically detected and played
back in the correct mode. The S-VHS mode indicator lights
for playback of S-VHS recordings.
Picture Sharpness Adjustment
Images on the screen can be adjusted to a preferred softer
or sharper definition by turning the BILDSCHARFE
control @ in the corresponding direction.
Tracking Adjustment
Noise bars may appear on the screen if you play back
a tape which was recorded using another recorder.
For correction, press either SPURLAGE button @ .
Tracking will be reset to the preset standard each time
the cassette is ejected.
—__J
SHUTTLE SEARCH
Shuttle Search allows high-speed playback at 9 times
normal speed in either direction.
1. Press either RUCKLAUF or VORLAUF Shuttle Search
@ or @ during playback.
2. To cancel the Search mode, press WIEDE RGABE/X2.
For briefer scanning, keep the Shuttle Search button
pressed for more than 2 seconds; when you release
the button, the Search mode will be cancelled.

JVC HR-S5000 Specifications

Power

power requirement	220 V, 50/60 Hz
power consumption	44 W

Operating Environment

operating temperature	5°C to 40°C
storage temperature	-20°C to 60°C
operating humidity	25% to 80%
storage humidity	35% to 80%

Video Specifications

video signal system	PAL colour and separated Y/C signals, 625 lines
horizontal resolution (S-VHS)	More than 400 lines
horizontal resolution (VHS)	250 lines

Audio Specifications

frequency response	20 Hz — 20, 000 Hz
dynamic range	More than 90 dB
wow and flutter	Less than 0.005 % WRMS

TV Tuner/RF Section

channel storage capacity	48 channels
aerial input VHF frequency range	47 — 89 MHz, 104 — 300 MHz, 302 — 470 MHz
aerial input UHF frequency range	470 — 862 MHz

Weight and Dimensions

width	435 mm
height	105 mm
depth	380 mm
weight	7.4 kg
