JVC HR-S5000 User Manual

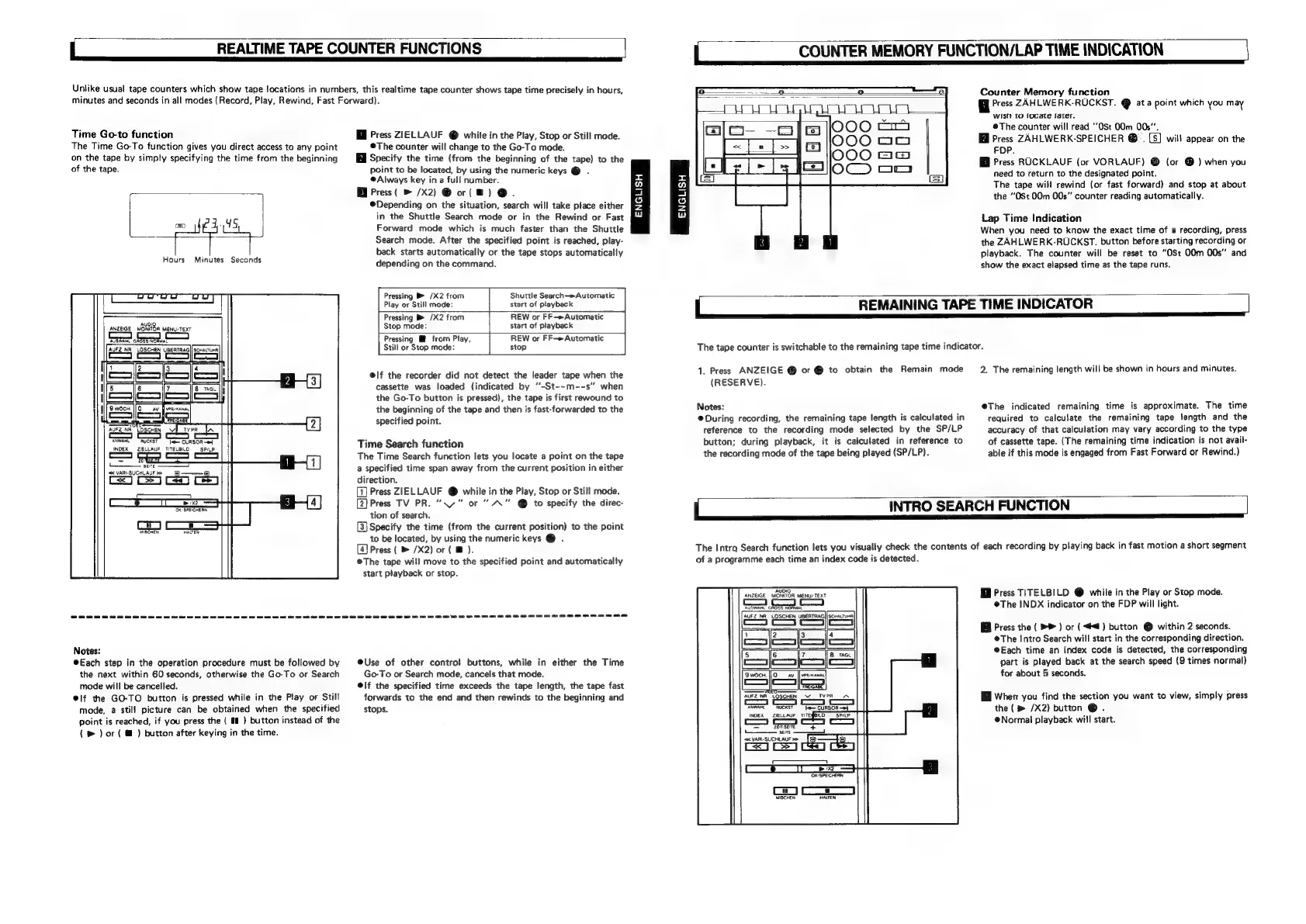

i REALTIME TAPE COUNTER FUNCTIONS
Unlike usual tape counters which show tape locations in numbers, this realtime tape counter shows tape time precisely in hours,
minutes and seconds in all modes (Record, Play, Rewind, Fast Forward).
Time Go-to function
The Time Go-To function gives you direct access to any point
on the tape by simply specifying the time from the beginning
of the tape.
Hours Minutes Seconds
Press ZIELLAUF @ while in the Play, Stop or Still mode.
©The counter will change to the Go-To mode.
Specify the time {from the beginning of the tape) to the
point to be located, by using the numeric keys @ .
@Always key ina full number.
El Press ( > /X2) @ or (@) @.
®@Depending on the situation, search will take place either
in the Shuttle Search mode or in the Rewind or Fast
Forward mode which is much faster than the Shuttle
Search mode. After the specified point is reached, play-
back starts automatically or the tape stops automatically
depending on the command.
Pressing B /X2 from
Play or Still mode:
Shuttle Search—»Automatic
start of playback
ENGLISH
ENGLISH
| 3 COUNTER MEMORY FUNCTION/LAP TIME INDICATION |
Counter Memory function
Press ZAHLWERK-RUCKST. @ ata point which you may
wish to focate fater.
The counter will read “Ost 00m 00s”.
Press ZAHLWERK-SPEICHER @ . [S] will appear on the
FOP.
BB Press RUCKLAUF (or VORLAUF) @ (or @ ) when you
need to return to the designated point.
The tape will rewind (or fast forward) and stop at about
the “OSt 00m 00s” counter reading automatically.
Lap Time Indication
When you need to know the exact time of a recording, press
the ZAHLWERK-RUCKST. button before starting recording or
playback. The counter will be reset to “OSt 00m 00s” and
show the exact elapsed time as the tape runs.
|
REMAINING
TAPE
TIME
INDICATOR
AUDIO
ANZEIGE MONITOR MENU/TEXT
TUSHAR. GROSS NORMAL
AUFZNA. LOSCHEN UBERTRAG
ca cS oo
AUEZ NA UC
RNWAHL” RUCKST Jab CURSOR >}
INDEX ZIELLAUF TITELBILO —_SP/LP
Pressing B /X2 from
REW or FF—»Automatic
Stop mode: start of playback
Pressing M from Play, REW or FF-» Automatic
Still or Stop mode: stop
elf the recorder did not detect the leader tape when the
cassette was loaded {indicated by ‘’-St--m--s’’ when
the Go-To button is pressed), the tape is first rewound to
the beginning of the tape and then is fast-forwarded to the
specified point.
Time Search function
The Time Search function lets you locate a point on the tape
a specified time span away from the current position in either
direction.
[1] Press ZIELLAUF @ while in the Play, Stop or Stil! mode.
[2] Press TV PR. “\/" or “A” @ to specify the direc-
tion of search.
Specify the time (from the current position) to the point
to be located, by using the numeric keys @ .
[4] Press ( B /X2) or ( @ ).
@The tape will move to the specified point and automatically
start playback or stop.
Notes:
®@Each step in the operation procedure must be followed by
the next within 60 seconds, otherwise the Go-To or Search
mode will be cancelled.
elf the GO-TO button is pressed while in the Play or Still
mode, a stil! picture can be obtained when the specified
point is reached, if you press the ( §f } button instead of the
( » ) or ( @ ) button after keying in the time.
@Use of other contro! buttons, while in either the Time
Go-To or Search mode, cancels that mode.
@If the specified time exceeds the tape length, the tape fast
forwards to the end and then rewinds to the beginning and
stops.
The tape counter is switchable to the remaining tape time indicator.
1. Press ANZEIGE @ or @ to obtain the Remain mode
(RESERVE).
Notes:
@During recording, the remaining tape length is calculated in
reference to the recording mode selected by the SP/LP
button; during playback, it is calculated in reference to
the recording mode of the tape being played (SP/LP).
2. The remaining length will be shown in hours and minutes.
@The indicated remaining time is approximate. The time
required to calculate the remaining tape tength and the
accuracy of that calculation may vary according to the type
of cassette tape. (The remaining time indication is not avail-
able if this mode is engaged from Fast Forward or Rewind.)
| INTRO SEARCH FUNCTION
The
Intra
Search
function
lets
you
visually
check
the
contents
of
each
recording
by
playing
back
in
fast
motion
a
short
segment
of a programme each time an index code is detected.
AUDIO.
ANZEIGE MONITOR MENU) TEXT
RUSWAPL_ GROSS NORMAL
AUFZ_NR LOSCHEN U@ERTAAG||scHacTuHA
4
— —| —
—\—
2 ¥3
7
QO ow
SRWARL | RUCKST
Fe— CURSOR:
INDEX ZIELLAUF TITERBUD — SPALP.
= ZENSETE
SEITE
@< VARI-SUCHLAUF >>
MISCHEN.
Press TITELBILD @ while in the Play or Stop mode.
@The INDX indicator on the FDP will light.
EB Press the ( > ) or (44) button @ within 2 seconds.
@The Intro Search will start in the corresponding direction.
@Each time an index code is detected, the corresponding
part is played back at the search speed (9 times normal)
for about 5 seconds.
Ell Wher you find the section you want to view, simply press
the ( m» /X2) button @ .
@Normal playback will start.

JVC HR-S5000 Specifications

Power

power requirement	220 V, 50/60 Hz
power consumption	44 W

Operating Environment

operating temperature	5°C to 40°C
storage temperature	-20°C to 60°C
operating humidity	25% to 80%
storage humidity	35% to 80%

Video Specifications

video signal system	PAL colour and separated Y/C signals, 625 lines
horizontal resolution (S-VHS)	More than 400 lines
horizontal resolution (VHS)	250 lines

Audio Specifications

frequency response	20 Hz — 20, 000 Hz
dynamic range	More than 90 dB
wow and flutter	Less than 0.005 % WRMS

TV Tuner/RF Section

channel storage capacity	48 channels
aerial input VHF frequency range	47 — 89 MHz, 104 — 300 MHz, 302 — 470 MHz
aerial input UHF frequency range	470 — 862 MHz

Weight and Dimensions

width	435 mm
height	105 mm
depth	380 mm
weight	7.4 kg
