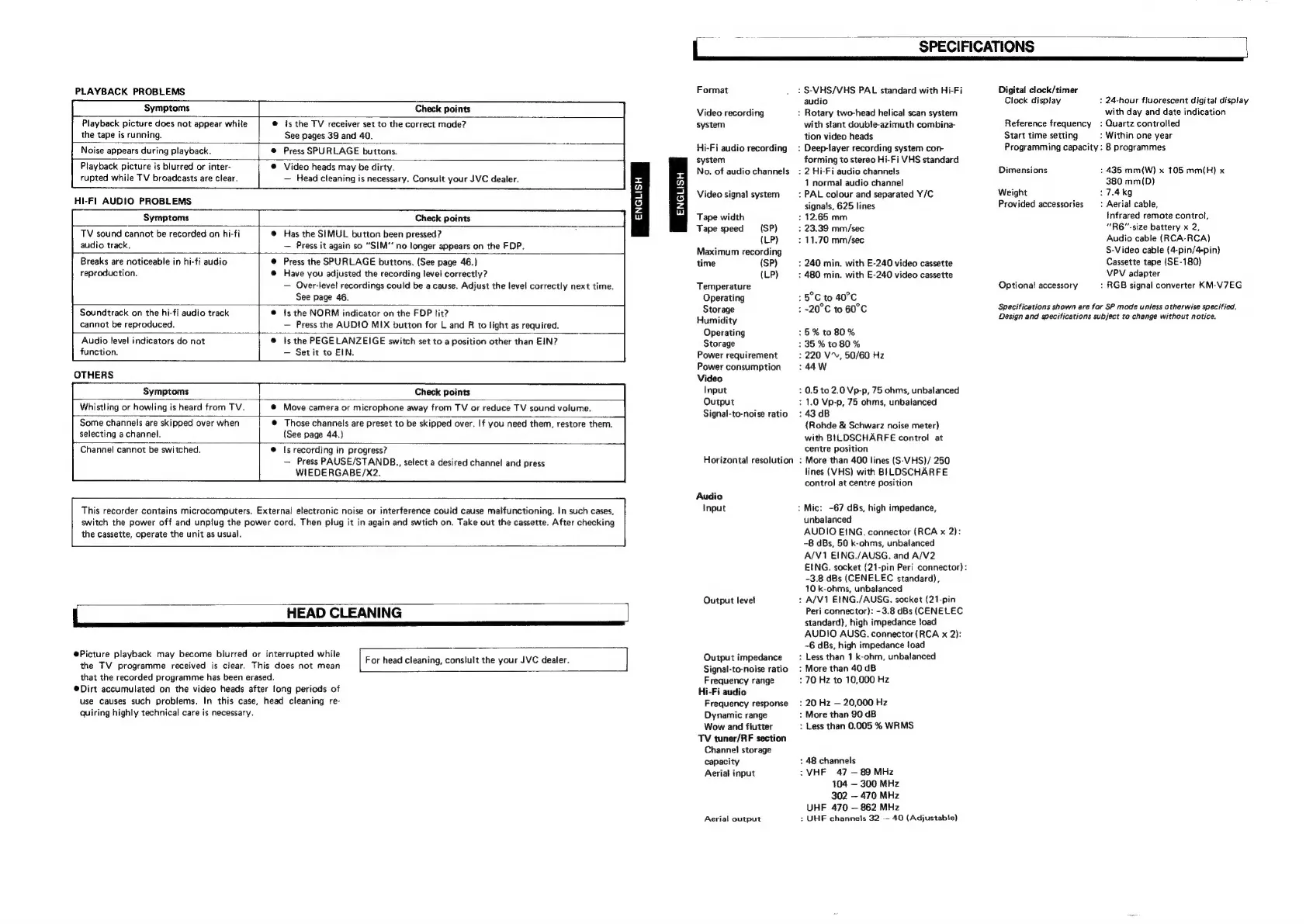

JVC HR-S5000 User Manual

PLAYBACK PROBLEMS
Symptoms Check points
@ isthe TV receiver set to the correct mode?
See pages 39 and 40.
@ Press SPURLAGE buttons.
@ Video heads may be dirty.
— Head cleaning is necessary. Consult your JVC dealer.
Playback picture does not appear while
the tape is running.
Noise appears during playback.
Playback picture is blurred or inter-
rupted while TV broadcasts are clear.
HI-Fl AUDIO PROBLEMS
Symptoms Check points
@ Has the SIMUL button been pressed?
— Press it again so “SIM” no longer appears on the FDP.
@ Press the SPURLAGE buttons. (See page 46.)
@ Have you adjusted the recording level correctly?
— Over-level recordings could be a cause. Adjust the level correctly next time.
See page 46.
@ is the NORM indicator on the FDP lit?
— Press the AUDIO MIX button for L and R to light as required.
@ Is the PEGELANZEIGE switch set to a position other than EIN?
— Set it to EIN.
Check points
@ Move camera or microphone away from TV or reduce TV sound volume.
@ Those channels are preset to be skipped over. If you need them, restore them.
(See page 44.)
@ Is recording in progress?
— Press PAUSE/STANDB,, select a desired channel and press
WIEDERGABE/X2.
TV sound cannot be recorded on hi-fi
audio track.
Breaks are noticeable in hi-fi audio
reproduction.
Soundtrack on the hi-fi audio track
cannot be reproduced.
Audio level indicators do not
function.
OTHERS
Symptoms
Whistling or howling is heard from TV.
Some channels are skipped over when
selecting a channel.
Channel cannot be switched.
This recorder contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases,
switch the power off and unplug the power cord. Then plug it in again and swtich on. Take out the cassette. After checking
the cassette, operate the unit as usual.
I ; HEAD CLEANING
@Picture playback may become biurred or interrupted while
the TV programme received is clear. This does not mean
that the recorded programme has been erased.
@Dirt accumulated on the video heads after long periods of
use causes such problems. In this case, head cleaning re-
quiring highly technical care is necessary.
For head cleaning, constult the your JVC dealer. ]
ENGLISH
ENGLISH
Format
Video recording
system
Hi-Fi audio recording
system
No. of audio channels
Video signal system
Tape width
Tape speed (SP)
(LP)
Maximum recording
time (SP)
(LP)
Temperature
Operating
Storage
Humidity
Operating
Storage
Power requirement
Power consumption
Video
Input
Output
Signal-to-noise ratio
Horizontal resolution
Audio
Input
Output levet
Output impedance
Signal-to-noise ratio
Frequency range
Hi-Fi audio
Frequency response
Dynamic range
Wow and flutter
TV tuner/RF section
Channel storage
capacity
Aerial input
Aerial output
SPECIFICATIONS
: S-VHS/VHS PAL standard with Hi-Fi
audio
: Rotary two-head helical scan system
with slant double-azimuth combina
tion video heads
: Deep-layer recording system con-
forming to stereo Hi-Fi VHS standard
: 2 Hi-Fi audio channels
1 normal audio channel
: PAL colour and separated Y/C
signals, 625 lines
: 12.65 mm
> 23.39 mm/sec
: 11.70 mm/sec
: 240 min. with E-240 video cassette
: 480 min. with E-240 video cassette
:5°C to 40°C
: -20°C to 60°C
25% to 80%
: 35 % to 80 %
: 220 Vv, 50/60 Hz
:44W
: 0.5 to 2.0 Vp-p, 75 ohms, unbalanced
: 1.0 Vp-p, 75 ohms, unbalanced
: 43 dB
{Rohde & Schwarz noise meter}
with BI1LDSCHARFE control at
centre position
: More than 400 lines (S-VHS)/ 250
lines (VHS) with BILDSCHARFE
control at centre position
: Mic: -67 dBs, high impedance,
unbalanced
AUDIO EING. connector {RCA x 2):
-8 dBs, 50 k-ohms, unbalanced
A/V1 EING./AUSG. and A/V2
EtNG. socket (21-pin Peri connector):
-3.8 dBs (CENELEC standard),
10 k-ohms, unbalanced
: A/V1 EING./AUSG. socket (21-pin
Peri connector): - 3.8 dBs (CENELEC
standard), high impedance toad
AUDIO AUSG. connector (RCA x 2):
-6 dBs, high impedance load
: Less than 1 k-ohm, unbalanced
: More than 40 dB
: 70 Hz to 10,000 Hz
: 20 Hz — 20,000 Hz
: More than 90 dB
: Less than 0.005 % WRMS
: 48 channels
: VHF 47 —89 MHz
104 — 300 MHz
302 — 470 MHz
UHF 470 — 862 MHz
: UHF channels 32 — 40 (Adjustable)
Digital clock/timer
Clock display
Reference frequency
Start time setting
Programming capacity :
Dimensions
Weight
Provided accessories
Optional accessory
Specifications shown are for
: 24-hour fluorescent digital display
with day and date indication
: Quartz controlled
: Within one year
8 programmes
> 435 mm(W) x 105 mm(H) x
380 mm(D)
:7.4kg
: Aerial cable,
Infrared remote control,
“R6"-size battery x 2,
Audio cable (RCA-RCA)
S-Video cable (4-pin/4-pin)
Cassette tape (SE-180)
VPV adapter
: RGB signal converter KM-V7EG
SP mode unless otherwise specified.
Design and specifications subject to change without notice.

JVC HR-S5000 Specifications

Power

power requirement	220 V, 50/60 Hz
power consumption	44 W

Operating Environment

operating temperature	5°C to 40°C
storage temperature	-20°C to 60°C
operating humidity	25% to 80%
storage humidity	35% to 80%

Video Specifications

video signal system	PAL colour and separated Y/C signals, 625 lines
horizontal resolution (S-VHS)	More than 400 lines
horizontal resolution (VHS)	250 lines

Audio Specifications

frequency response	20 Hz — 20, 000 Hz
dynamic range	More than 90 dB
wow and flutter	Less than 0.005 % WRMS

TV Tuner/RF Section

channel storage capacity	48 channels
aerial input VHF frequency range	47 — 89 MHz, 104 — 300 MHz, 302 — 470 MHz
aerial input UHF frequency range	470 — 862 MHz

Weight and Dimensions

width	435 mm
height	105 mm
depth	380 mm
weight	7.4 kg
