JVC HR-S5000 User Manual

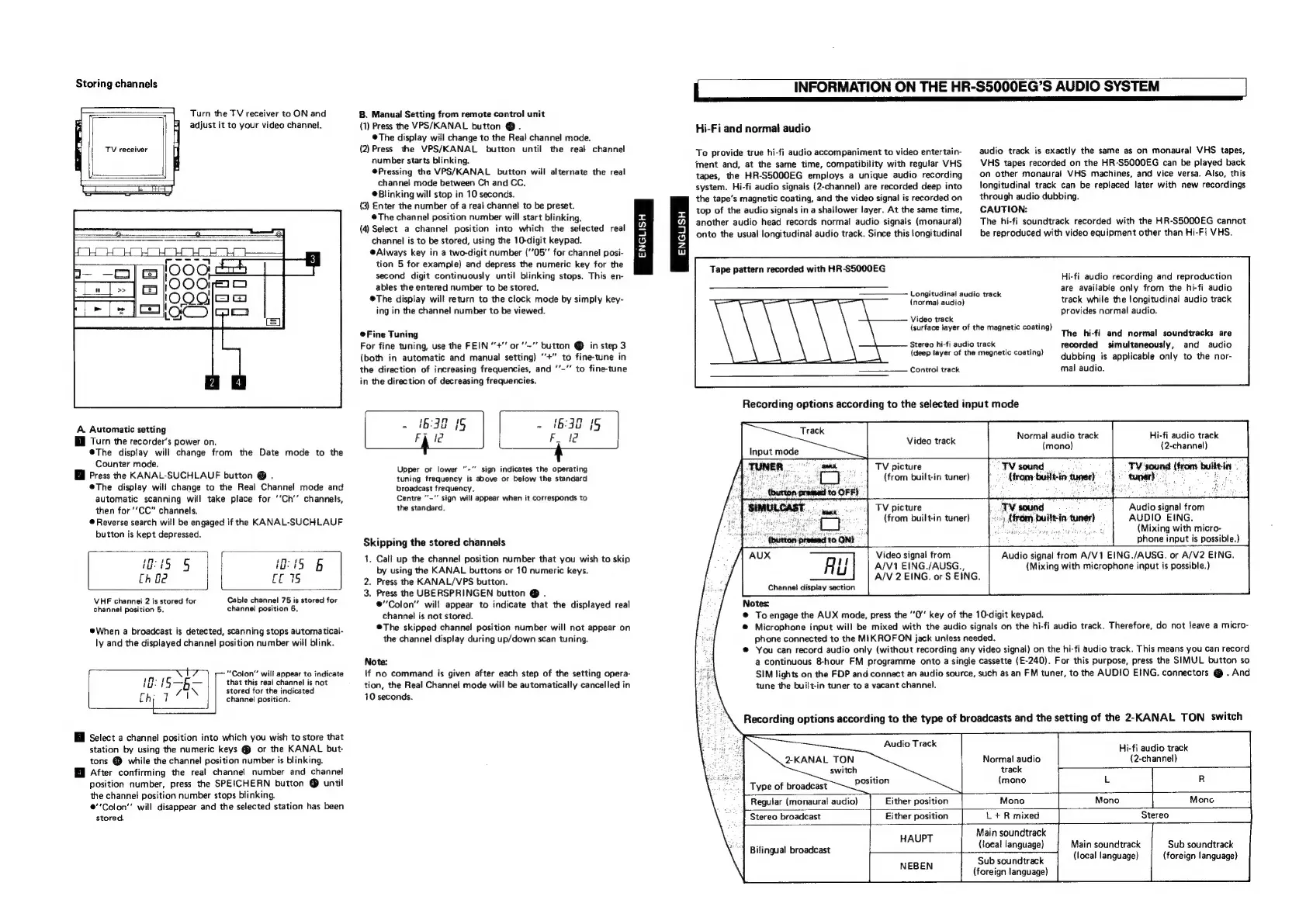

Storing channels
Turn the TV receiver to ON and
adjust it to your video channel.
TV receiver
fetete:
pOOO Hn
iOO°d|am
lO) paca
faa
A. Automatic setting
EB Turn the recorder’s power on.
®The display will change from the Date mode to the
Counter mode.
Gl Press the KANAL-SUCHLAUF button @ .
®@The display will change to the Real Channel mode and
automatic scanning will take place for ‘’Ch’’ channels,
then for ‘’CC” channels.
@ Reverse search will be engaged if the KANAL-SUCHLAUF
button is kept depressed.
Cable channel 75 is stored for
channel position 6,
VHF channel 2 is stored for
channel position 5.
®When a broadcast is detected, scanning stops automatical-
ly and the displayed channel position number will blink.
“Colon” will appear to indicate
that this real channel is not
stored for the indicated
channel position.
Ef select a channel position into which you wish to store that
station by using the numeric keys @ or the KANAL but-
tons €} while the channel position number is blinking.
After confirming the real channel number and channel
position number, press the SPEICHERN button @ until
the channel position number stops blinking.
®''Colon’’ will disappear and the selected station has been
stored.
B. Manual Setting from remote control unit
{1) Press the VPS/KANAL button @.
©The display will change to the Real channel mode.
(2)Press the VPS/KANAL button until the reat channel
number starts blinking.
Pressing the VPS/KANAL button will alternate the real
channel mode between Ch and CC.
Blinking will stop in 10 seconds.
(3) Enter the number of a real channel! to be preset.
©The channel position number will start blinking,
(4) Select a channel position into which the selected real
channel is to be stored, using the 10-digit keypad.
e@Always key in a two-digit number (’’05"' for channel posi-
tion 5 for example) and depress the numeric key for the
second digit continuously until blinking stops. This en-
ables the entered number to be stored.
®@The display wil! return to the clock mode by simply key-
ing in the channel number to be viewed.
@Fine Tuning
For fine tuning, use the FEIN “+” or ‘’-”’ button @ in step 3
(both in automatic and manual setting) ‘+’ to fine-tune in
the direction of increasing frequencies, and '’-”’ to fine-tune
in the direction of decreasing frequencies.
Upper or lower sign indicates the operating
tuning frequency is above or below the standard
broadcast frequency.
Centre "’'-" sign will appear when it corresponds to
the standard.
Skipping the stored channels
1. Call up the channel position number that you wish to skip
by using the KANAL buttons or 10 numeric keys.
2. Press the KANAL/VPS button.
3. Press the UBERSPRINGEN button @ .
®’’Colon’” will appear to indicate that the displayed real
channel is not stored.
®The skipped channel position number will not appear on
the channel display during up/down scan tuning.
Note:
'f no command is given after each step of the setting opera-
tion, the Real Channel mode wiil be automatically cancelled in
10 seconds.
ENGLISH
ENGUSH
| INFORMATION ON THE HR-S5000EG’S AUDIO SYSTEM
Hi-Fi and normal audio
To provide true hi-fi audio accompaniment to video entertain-
iment and, at the same time, compatibility with regular VHS
tapes, the HR-SSOO00EG employs a unique audio recording
system. Hi-fi audio signals (2-channel) are recorded deep into
the tape’s magnetic coating, and the video signal is recorded on
top of the audio signals in a shallower layer. At the same time,
another audio head records normal audio signals (monaural)
onto the usual longitudinal audio track. Since this fongitudinal
Tape pattern recorded with HR-SSQOOEG
Longitudinal audio track
(normal audio)
Video track
audio track is exactly the same as on monaural VHS tapes,
VHS tapes recorded on the HR-SSOOOEG can be played back
on other monaural VHS machines, and vice versa. Also, this
longitudinal track can be replaced later with new recordings
through audio dubbing.
CAUTION:
The hi-fi soundtrack recorded with the HR-SSOQ0EG cannot
be reproduced with video equipment other than Hi-Fi VHS.
Hi-fi audio recording and reproduction
are available only from the hi-fi audio
track while the longitudinal audio track
provides normal audio.
(surface layer of the magnetic coating)
Stereo hi-fi audio track
(deep layer of the megnetic coating)
Control track
The hi-fi and normal soundtracks are
recorded simultaneously, and audio
dubbing is applicable only to the nor-
mal audio.
Recording options according to the selected input mode
Video track
Input mode
A. TUNER
aie
TV picture
TV picture
(from built-in tuner)
(from built-in tuner)
Hi-fi audio track
{2-channel)
Normal audio track
(mono)
“TV sound
| (from built-in tuner)
Audio signal from
AUDIO EING.
(Mixing with micro-
phone input is possible.)
~<),fr6m builtin tuner)
seit te
Video signal from
A/V1 EING./AUSG.,
A/V 2 EING. or S EING.
Channel display section
Notes:
Audio signal from A/V 1 EING./AUSG. or A/V2 EING.
{Mixing with microphone input is possible.)
To engage the AUX mode, press the ‘0’ key of the 10-digit keypad.
Microphone input will be mixed with the audio signals on the hi-fi audio track. Therefore, do not leave a micro-
phone connected to the MIKROFON jack unless needed.
You can record audio only (without recording any video signal) on the hi-fi audio track. This means you can record
a continuous 8-hour FM programme onto a single cassette (£-240). For this purpose, press the SIMUL button so
SIM lights on the FDP and connect an audio source, such as an FM tuner, to the AUDIO EING. connectors @ . And
tune the built-in tuner to a vacant channel.
Recording options according to the type of broadcasts and the setting of the 2-KANAL TON switch
Audio Track
2-KANAL TON
switch
Type of broadcast position
Hi-fi audio track
Normal audio (2-channel)
track
(mono
Regular (monaural audio) Either position
Mono |
] Stereo broadcast Either position
L +R mixed
Stereo
] HAUPT
Bilingual broadcast
Main soundtrack
(local language) Main soundtrack Sub soundtrack
NEBEN
(local language) (foreign language}
Sub soundtrack
(foreign language)

JVC HR-S5000 Specifications

Power

power requirement	220 V, 50/60 Hz
power consumption	44 W

Operating Environment

operating temperature	5°C to 40°C
storage temperature	-20°C to 60°C
operating humidity	25% to 80%
storage humidity	35% to 80%

Video Specifications

video signal system	PAL colour and separated Y/C signals, 625 lines
horizontal resolution (S-VHS)	More than 400 lines
horizontal resolution (VHS)	250 lines

Audio Specifications

frequency response	20 Hz — 20, 000 Hz
dynamic range	More than 90 dB
wow and flutter	Less than 0.005 % WRMS

TV Tuner/RF Section

channel storage capacity	48 channels
aerial input VHF frequency range	47 — 89 MHz, 104 — 300 MHz, 302 — 470 MHz
aerial input UHF frequency range	470 — 862 MHz

Weight and Dimensions

width	435 mm
height	105 mm
depth	380 mm
weight	7.4 kg
