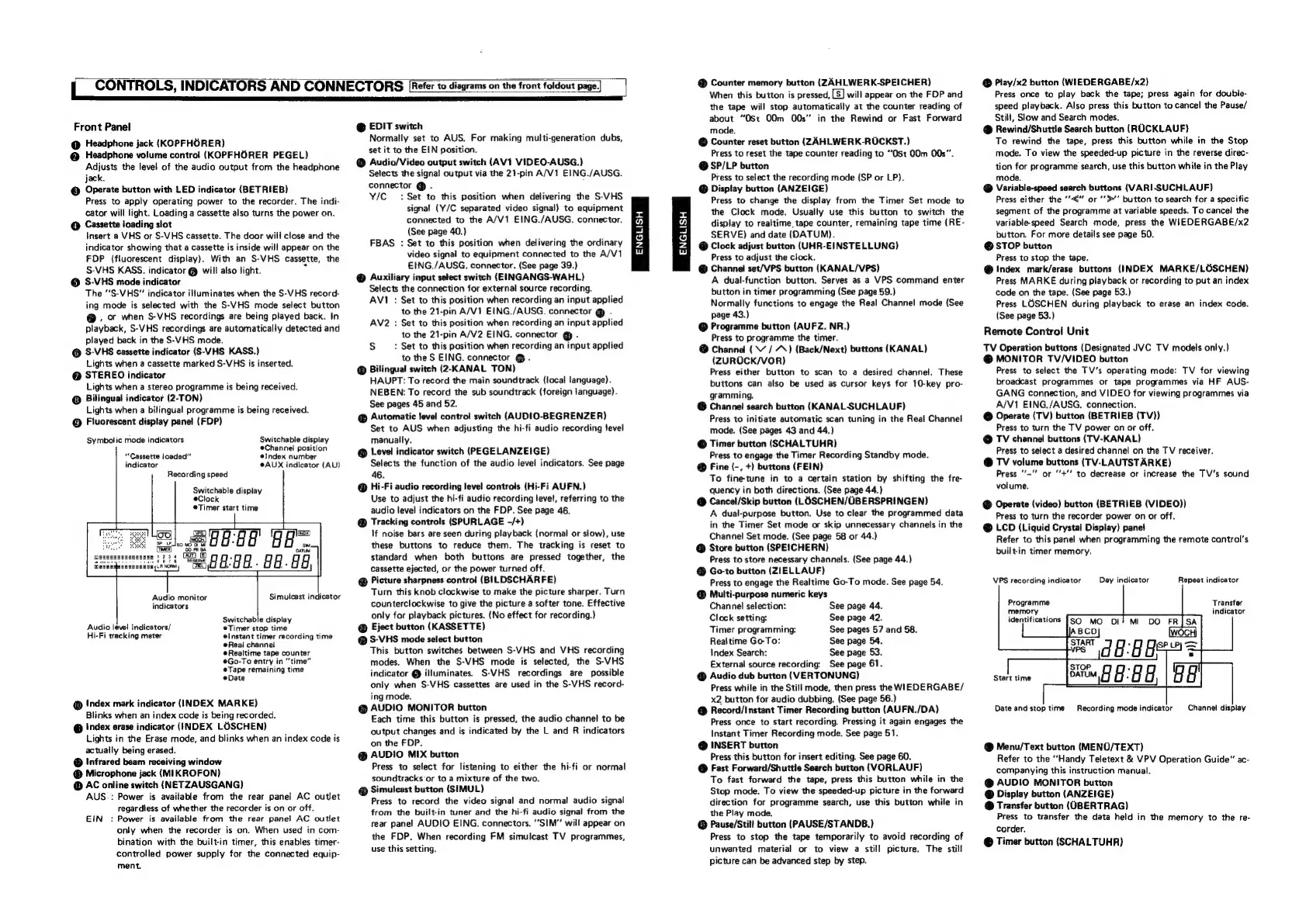

CONTROLS,
INDICATORS
AND
CONNECTORS
[Refer
to
diagrams
on
the
front
foldout
page]
Front
Panel
@
Headphone
jack
(KOPFHORER)
@
Headphone
volume
control
(KOPFHORER
PEGEL)
Adjusts
the
level
of
the
audio
output
from
the
headphone
jack.
©
Operate
button
with
LED
indicator
({(BETRIEB)
Press
to
apply
operating
power
to
the
recorder.
The
indi-
cator
will
light.
Loading
a
cassette
also
turns
the
power
on.
@
Cassette
loading
slot
Insert
a
VHS
or
S-VHS
cassette.
The
door
will
close
and
the
indicator
showing
that
a
cassette
is
inside
will
appear
on
the
FDP
(fluorescent
display}.
With
an
S-VHS
cassette,
the
S-VHS
KASS.
indicator
@
will
also
light.
=
©
S-VHS
mode
indicator
The
“’S-VHS"
indicator
illuminates
when
the
S-VHS
record-
ing
mode
is
selected
with
the
S-VHS
mode
select
button
@.
or
when
S-VHS
recordings
are
being
played
back.
in
playback,
S-VHS
recordings
are
automatically
detected
and
played
back
in
the
S-VHS
mode.
@
S-VHS
cassette
indicator
(S-VHS
KASS.)
Lights
when
a
cassette
marked
S-VHS
is
inserted.
@
STEREO
indicator
Lights
when
a
stereo
programme
is
being
received.
@
Bilingual
indicator
(2-TON)
Lights
when
a
bilingual
programme
is
being
received.
@
Fluorescent
display
panel
(FDP)
Symbolic
mode
indicators
Switchable
display
Channel
position
e!ndex
number
®@AUX
indicator
(AU)
“Cassette
loaded”
indicator
Recording
speed
Switchable
display
Clock
eTimer
start
time
Simulcast
indicator
Audio
monitor
indicators
Switchable
display
eTimer
stop
time
elnstant
timer
recording
time
Real
channel
@Realtime
tape
counter
Go-To
entry
in
“time”
Tape
remaining
time
Date
Audio
level
indicators/
Hi-Fi
tracking
meter
@
'ndex
mark
indicator
(INDEX
MARKE)
Blinks
when
an
index
code
is
being
recorded.
@
!ndex
erase
indicator
(INDEX
LOSCHEN)
Lights
in
the
Erase
mode,
and
blinks
when
an
index
code
is
actually
being
erased.
@
Infrared
beam
receiving
window
Microphone
jack
(MIKROFON)
@
AC
online
switch
(NETZAUSGANG)
AUS
:
Power
is
available
from
the
rear
panel
AC
outlet
regardless
of
whether
the
recorder
is
on
or
off.
EIN
:
Power
is
available
from
the
rear
panel
AC
outlet
only
when
the
recorder
is
on.
When
used
in
com-
bination
with
the
builtin
timer,
this
enables
timer-
controlled
power
supply
for
the
connected
equip-
ment.
@
EDIT
switch
Normally
set
to
AUS.
For
making
multi-generation
dubs,
set
it
to
the
E1N
position.
@
Audio/Video
output
switch
(AV1
VIDEO-AUSG.)
Selects
the
signal
output
via
the
21-pin
A/V1
EING./AUSG.
connector
@
-
:
Y/C
:
Set
to
this
position
when
delivering
the
S-VHS
signal
(Y/C
separated
video
signal}
to
equipment
connected
to
the
A/V1
EING./AUSG.
connector.
(See
page
40.)
FBAS
:
Set
to
this
position
when
delivering
the
ordinary
video
signal
to
equipment
connected
to
the
A/V1
EING./AUSG.
connector.
(See
page
39.)
@
Auxiliary
input
select
switch
(EINGANGS-WAHL)
Selects
the
connection
for
external
source
recording.
AV1
:
Set
to
this
position
when
recording
an
input
applied
to
the
21-pin
A/V1
EING./AUSG.
connector
@
.
:
Set
to
this
position
when
recording
an
input
applied
to
the
21-pin
A/V2
EING.
connector
@
.
Ss
:
Set
to
this
position
when
recording
an
input
applied
to
the
S
EING.
connector
@
.
Bilingual
switch
(2-KANAL
TON)
HAUPT:
To
record
the
main
soundtrack
(local
language).
NEBEN:
To
record
the
sub
soundtrack
(foreign
language).
See
pages
45
and
52,
Automatic
tevel
contro!
switch
(AUDIO-BEGRENZER)
Set
to
AUS
when
adjusting
the
hi-fi
audio
recording
tevel
manually.
@
Level
indicator
switch
(PEGELANZEIGE)
Selects
the
function
of
the
audio
level
indicators.
See
page
46.
@
Hi-Fi
audio
recording
level
controls
(Hi-Fi
AUFN.)
Use
to
adjust
the
hi-fi
audio
recording
level,
referring
to
the
audio
level
indicators
on
the
FDP.
See
page
46.
@
Tracking
controls
(SPURLAGE
-/+)
If
noise
bars
are
seen
during
playback
(normal
or
slow),
use
these
buttons
to
reduce
them.
The
tracking
is
reset
to
standard
when
both
buttons
are
pressed
together,
the
cassette
ejected,
or
the
power
turned
off.
@
sharpness
contro!
(BILDSCHARFE)
Turn
this
knob
clockwise
to
make
the
sharper.
Turn
counterclockwise
to
give
the
a
softer
tone.
Effective
only
for
playback
pictures.
(No
effect
for
recording.)
@
Eject
button
(KASSETTE)
@
S-VHS
mode
select
button
This
button
switches
between
S-VHS
and
VHS
recording
modes.
When
the
S-VHS
mode
is
selected,
the
S-VHS
indicator
@
illuminates.
S-VHS
recordings
are
possible
only
when
S-VHS
cassettes
are
used
in
the
S-VHS
record-
ing
mode.
@
AUDIO
MONITOR
button
Each
time
this
button
is
pressed,
the
audio
channel
to
be
output
changes
and
is
indicated
by
the
L
and
R
indicators
on
the
FDP.
@
AUDIO
MIX
button
Press
to
select
for
listening
to
either
the
hi-fi
or
normal
soundtracks
or
to
a
mixture
of
the
two.
@
Simulcast
button
(SIMUL)
Press
to
record
the
video
signal
and
norma!
audio
signa!
from
the
built-in
tuner
and
the
hi-fi
audio
signal
from
the
rear
panel
AUDIO
EING.
connectors.
’’SIM”
will
appear
on
the
FDP.
When
recording
FM
simulcast
TV
programmes,
use
this
setting.
AV2
ENGLISH
ENGLISH
@
Counter
memory
button
(ZAHLWERK-SPEICHER)
When
this
button
is
pressed,
[S]
will
appear
on
the
FDP
and
the
tape
will
stop
automatically
at
the
counter
reading
of
about
“OSt
00m
00s’’
in
the
Rewind
or
Fast
Forward
mode.
@
Counter
reset
button
(ZAHLWERK-RUCKST.)
Press
to
reset
the
tape
counter
reading
to
“Ost
00m
00s”.
@
SP/LP
button
Press
to
select
the
recording
mode
{SP
or
LP).
@
Display
button
(ANZEIGE)
Press
to
change
the
display
from
the
Timer
Set
mode
to
the
Clock
mode.
Usually
use
this
button
to
switch
the
display
to
realtime,
tape
counter,
remaining
tape
time
(RE-
SERVE)
and
date
(DATUM).
@
Clock
adjust
button
(UHR-EINSTELLUNG)
Press
to
adjust
the
clock.
@
Channel!
set/VPS
button
(KANAL/VPS)
A
dual-function
button.
Serves
as
a
VPS
command
enter
button
in
timer
programming
(See
page
59.)
Normally
functions
to
engage
the
Real
Channel
mode
(See
page
43.)
@
Programme
button
(AUFZ.
NR.)
Press
to
programme
the
timer.
@
Channel
(
/
“\)
(Back/Next)
buttons
(KANAL)
(ZUROCK/VOR)
Press
either
button
to
scan
to
a
desired
channel.
These
buttons
can
also
be
used
as
cursor
keys
for
10-key
pro-
gramming.
@
Channe!
search
button
(KANAL-SUCHLAUF)
Press
to
initiate
automatic
scan
tuning
in
the
Real
Channel
mode.
(See
pages
43
and
44.)
@
Timer
button
(SCHALTUHR)
Press
to
engage
the
Timer
Recording
Standby
mode.
@
Fine
(-,
+)
buttons
(FEIN)
To
fine-tune
in
to
a
certain station
by
shifting
the
fre-
quency
in
both
directions.
(See
page
44.)
@
Cancel/Skip
button
(LOSCHEN/OBERSPRINGEN)
A
dual-purpose
button.
Use
to
clear
the
programmed
data
in
the
Timer
Set
mode
or
skip
unnecessary
channels
in
the
Channel
Set
mode.
(See
page
58
or
44.)
@
Store
button
(SPEICHERN)
Press
to
store
necessary
channels.
(See
page
44.)
@
Go-to
button
(ZIELLAUF)
Press
to
engage
the
Realtime
Go-To
mode.
See
page
54.
Multi-purpose
numeric
keys
Channel
selection:
See
page
44.
Clock
setting:
See
page
42.
Timer
programming:
See
pages
57
and
58.
Realtime
Go-To:
See
page
54.
index
Search:
See
page
53.
External
source
recording:
See
page
61.
@
Audio
dub
button
(VERTONUNG)
Press
while
in
the
Still
mode,
then
press
the
WIEDERGABE/
x2
button
for
audio
dubbing.
(See
page
56.)
@
Record/Instant
Timer
Recording
button
(AUFN./DA)
Press
once
to
start
recording,
Pressing
it
again
engages
the
Instant
Timer
Recording
mode.
See
page
51.
@
INSERT
button
Press
this
button
for
insert
editing.
See
page
60.
@
Fast
Forward/Shuttle
Search
button
(VORLAUF)
To
fast
forward
the
tape,
press
this
button
while
in
the
Stop
mode.
To
view
the
speeded-up
in
the
forward
direction
for
programme
search,
use
this
button
while
in
the
Play
mode.
@
Pause/Stiti
button
(PAUSE/STANDB.)
Press
to
stop
the
tape
temporarily
to
avoid
recording
of
unwanted
material
or
to
view
a
still
picture.
The
still
can
be
advanced
step
by
step.
@
Play/x2
button
(WIEDERGABE/x2)
Press
once
to
play
back
the
tape;
press
again
for
doubie-
speed
playback.
Also
press
this
button
to
cancel
the
Pause/
Still,
Slow
and
Search
modes.
@
Rewind/Shuttle
Search
button
(RUCKLAUF)
To
rewind
the
tape,
press
this
button
while
in
the
Stop
mode.
To
view
the
speeded-up
in
the
reverse
direc-
tion
for
programme
search,
use
this
button
while
in
the
Play
mode.
@
Variable-speed
search
buttons
(VARI-SUCHLAUF)
Press
either
the
‘’<‘
or
’>’’
button
to
search
for
a
specific
segment
of
the
programme
at
variable
speeds.
To
cancel
the
variable-speed
Search
mode,
press
the
WIEDERGABE/x2
button.
For
more
details
see
page
50.
@
STOP
button
Press
to
stop
the
tape.
@
Index
mark/erase
buttons
(INDEX
MARKE/LOSCHEN)
Press
MARKE
during
playback
or
recording
to
put
an
index
code
on
the
tape.
(See
page
53.)
Press
LOSCHEN
during
playback
to
erase
an
index
code.
(See
page
53.)
Remote
Control
Unit
TV
Operation
buttons
(Designated
JVC
TV
models
only.)
@
MONITOR
TV/VIDEO
button
Press
to
select
the
TV’s
operating
mode:
TV
for
viewing
broadcast
programmes
or
tape
programmes
via
HF
AUS-
GANG
connection,
and
VIDEO
for
viewing
programmes
via
A/V1
EING./AUSG.
connection.
@
Operate
(TV)
button
(BETRIEB
(TV))
Press
to
turn
the
TV
power
on
or
off.
@
TV
channel
buttons
(TV-KANAL)
Press
to
select
a
desired
channel
on
the
TV
receiver.
@
TV
volume
buttons
(TV-LAUTSTARKE)
Press
'’~""
or
‘+’
to
decrease
or
increase
the
TV’s
sound
volume.
@
Operate
(video)
button
(BETRIEB
(VIDEO))
Press
to
turn
the
recorder
power
on
or
off.
@
LCD
(Liquid
Crystal
Display)
panet
Refer
to
this
panel
when
programming
the
remote
cantrol’s
built-in
timer
memory.
Day
indicator
VPS
recording
indicator
Repeat
indicator
Programme
memory
identifications
Transfer
indicator
Start
time
Date
and
stop
time
Recording
mode
indicator
Channel
display
@
Menu/Text
button
(MENUO/TEXT)
Refer
to
the
‘Handy
Teletext
&
VPV
Operation
Guide”
ac-
companying
this
instruction
manual.
@
AUDIO
MONITOR
button
@
Display
button
(ANZEIGE)
@
Transfer
button
(OBERTRAG)
Press
to
transfer
the
data
held
in
the
memory
to
the
re-
Corder.
@
Timer
button
(SCHALTUHR)

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the JVC HR-S5000 and is the answer not in the manual?

JVC HR-S5000 Specifications

Power IconPower
power requirement220 V, 50/60 Hz
power consumption44 W
Operating Environment IconOperating Environment
operating temperature5°C to 40°C
storage temperature-20°C to 60°C
operating humidity25% to 80%
storage humidity35% to 80%
Video Specifications IconVideo Specifications
video signal systemPAL colour and separated Y/C signals, 625 lines
horizontal resolution (S-VHS)More than 400 lines
horizontal resolution (VHS)250 lines
Audio Specifications IconAudio Specifications
frequency response20 Hz — 20, 000 Hz
dynamic rangeMore than 90 dB
wow and flutterLess than 0.005 % WRMS
TV Tuner/RF Section IconTV Tuner/RF Section
channel storage capacity48 channels
aerial input VHF frequency range47 — 89 MHz, 104 — 300 MHz, 302 — 470 MHz
aerial input UHF frequency range470 — 862 MHz
Weight and Dimensions IconWeight and Dimensions
width435 mm
height105 mm
depth380 mm
weight7.4 kg

Related product manuals
