Component Names and Basic OperationsComponent Names and Basic Operations

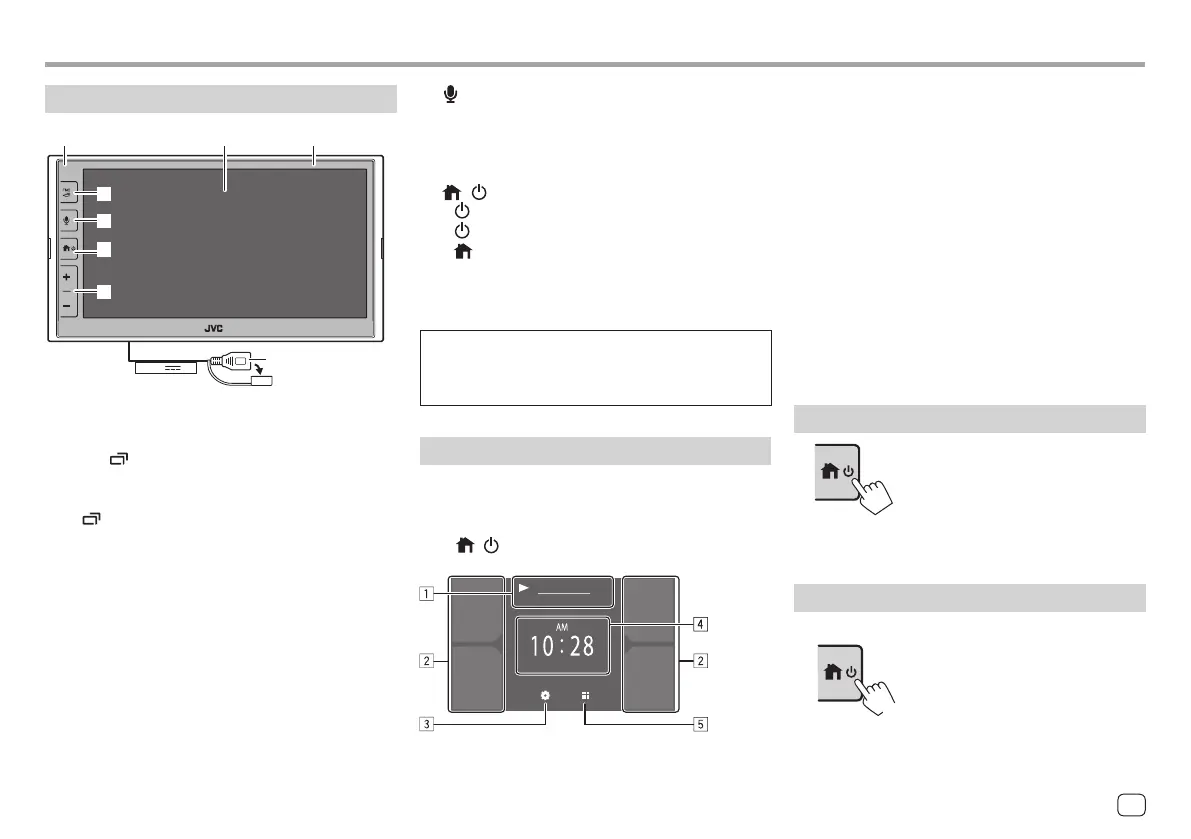

Monitor panel
1 32
4
5
6
7
8
(USB1)5V 1.5A
1 Remote sensor
2 Screen (touch panel)
3 Monitor panel
4 FNC -
button
• FNC (Press): Pops up the function menu (page
12)
• (Hold): Changes the screen from the playback
source to the others.
– While Apple CarPlay or Android Auto is
connected, switches to the current background
playback source screen and vice versa.
– While no device for Apple CarPlay or Android
Auto is connected, switches to the current
background playback source screen and the
other setting-related screen, home screen, or
source selection screen and vice versa.
5
button: (Press) Activates the voice recognition.
– When no device for Apple CarPlay, Android
Auto, and Bluetooth phone is connected,
pressing and holding this button displays
Bluetooth pairing waiting dialog (page 7).
6
/ button
• (Press): Turns on the power.
• (Hold): Turns off the power.
• (Press): Displays the Home screen (see the
following) while the power is on.
7 Volume +/– buttons
8 USB terminal from the rear panel
The buttons on the monitor illuminate and change
the color periodically with the unit turned on.
• To change the color, see page 47.
Home screen
• You can customize the Home screen (pages 47
to 48)
• To display the Home screen from other screens, press
the / button.
Sat. Jan. 01 2022
Apple CarPlay
Where you are now in this <
Touching the operation keys performs the following
actions:
1 The current playback source information.
Displays the current playing source control screen.
• Touching [ < ] scrolls the text if not all of the text
is shown.
2 Selects the playback source.
• To change the sources, see page 48.
3 Displays the <Settings> screen.
4 Displays the clock time and/or artwork screen.
• To change the information, see page 48.
• When you touch the clock time indication, you
can move to the <Clock> screen, see page 5.
5 Displays all selectable playback sources and
options.
Turning on the power
• When you turn on this unit for
the first time, you must wait
while the system acquires GPS
signals from satellites. This
process could take up to several
minutes.
Turning off the power
On the monitor panel:
(Hold)
3ENGLISH
