JVC KW-V21BT User Manual

ENGLISH 45
CONNECTION/INSTALLATIONCONNECTION/INSTALLATION

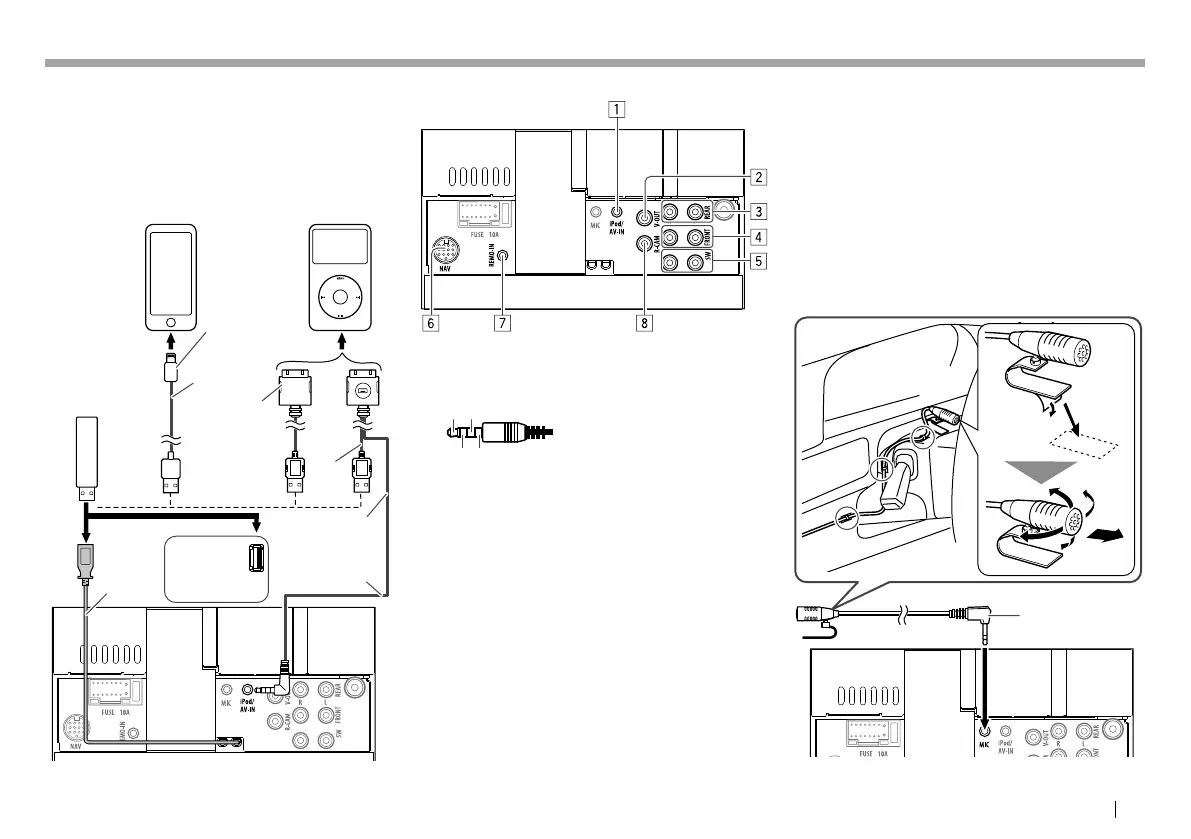

R Connecting a USB device/iPod/iPhone
0.8 m
0.8 m
1.8 m
0.8 m
USB device
(commercially
available)
USB 2.0 cable
(accessory of the
iPod/iPhone)
iPod nano (7th
Generation)/
iPod touch (5th
Generation)/iPhone
5S/iPhone 5C/iPhone 5
(commercially available)
iPod/iPhone except
for iPod nano (7th
Generation)/iPod touch
(5th Generation)/iPhone
5S/iPhone 5C/iPhone 5
(commercially available)
KS-U62
(optional accessory)
KS-U59 (optional
accessory)
KW-V41BT
KW-V21BT
KW-V11
(Front panel)
R Connecting external components
1 iPod/AV-IN
• Connect the following type of 4-pole mini
plug:
1
24
3
1 Left audio
2 Right audio
3 Ground
4 Composite video
2 Video output (Yellow)
3 Rear preout*
1
• Audio left output (White)
• Audio right output (Red)
4 Front preout*
1
• Audio left output (White)
• Audio right output (Red)
5 Subwoofer preout (monaural output)*
1
• Subwoofer left output (White)
• Subwoofer right output (Red)
6 NAV input for an external navigation unit*
2
7 Steering wheel remote controller input
• Connect to the vehicle’s steering remote
harness. Contact your JVC dealer for details.
8 Rear view camera input (Yellow)
*
1
When connecting an external amplifier, connect its ground wire to
the chassis of the car; otherwise the unit may be damaged.
*
2
Only for KW-V41BT/KW-V21BT.
R Connecting microphone for Bluetooth
(only for KW-V41BT/KW-V21BT)
Connect the microphone (6) to the MIC terminal.
• To install the microphone, peel off the adhesive
tape, fix on the installation position, then adjust
the direction of the microphone to face the driver.
After installing, fix the microphone cable to the car
with clamps (commercially available).
6
KW-VEntryU.indb45KW-VEntryU.indb45 2014/09/1019:502014/09/1019:50
