(No.YA408)3-9

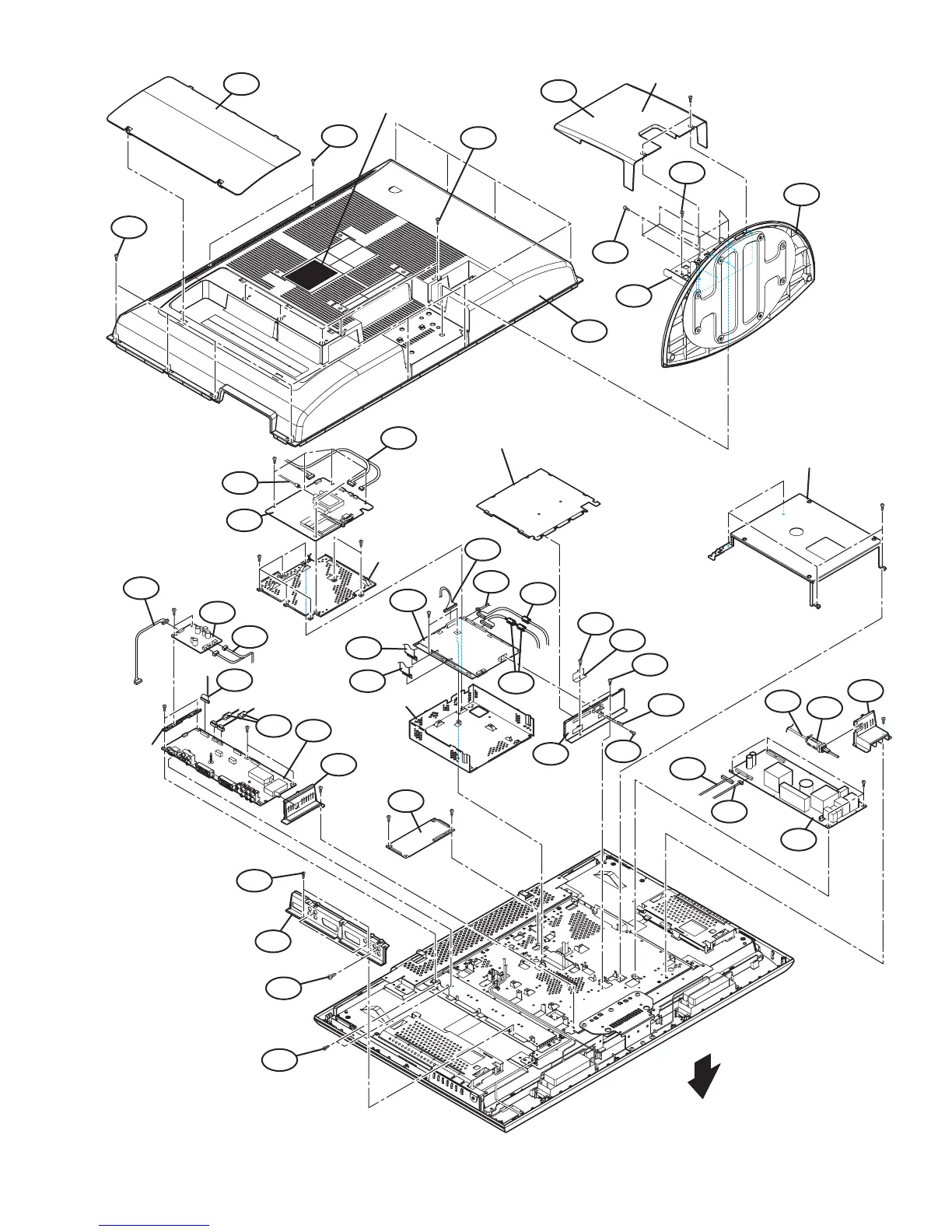

EXPLODED VIEW -3 [37 inch models]
FRONT
BACK BRACKET
D-AMP PWB
BRACKET
STNAD COVER
SHIELD COVER
SHIELD BASE
DIGITAL PWB
BRACKET
129
128
201
135
136
134
127
205
108
101
102A
105
102
103
104
107
109
106
203
204
130
131
RATING LABEL
114
113
126
133
132
202
124
125
122
121
120
119
118
119
115
116
117
110
111
112
123
137
