3-6(No.YA665<Rev.001>)
EXPLODED VIEW PARTS LIST -2

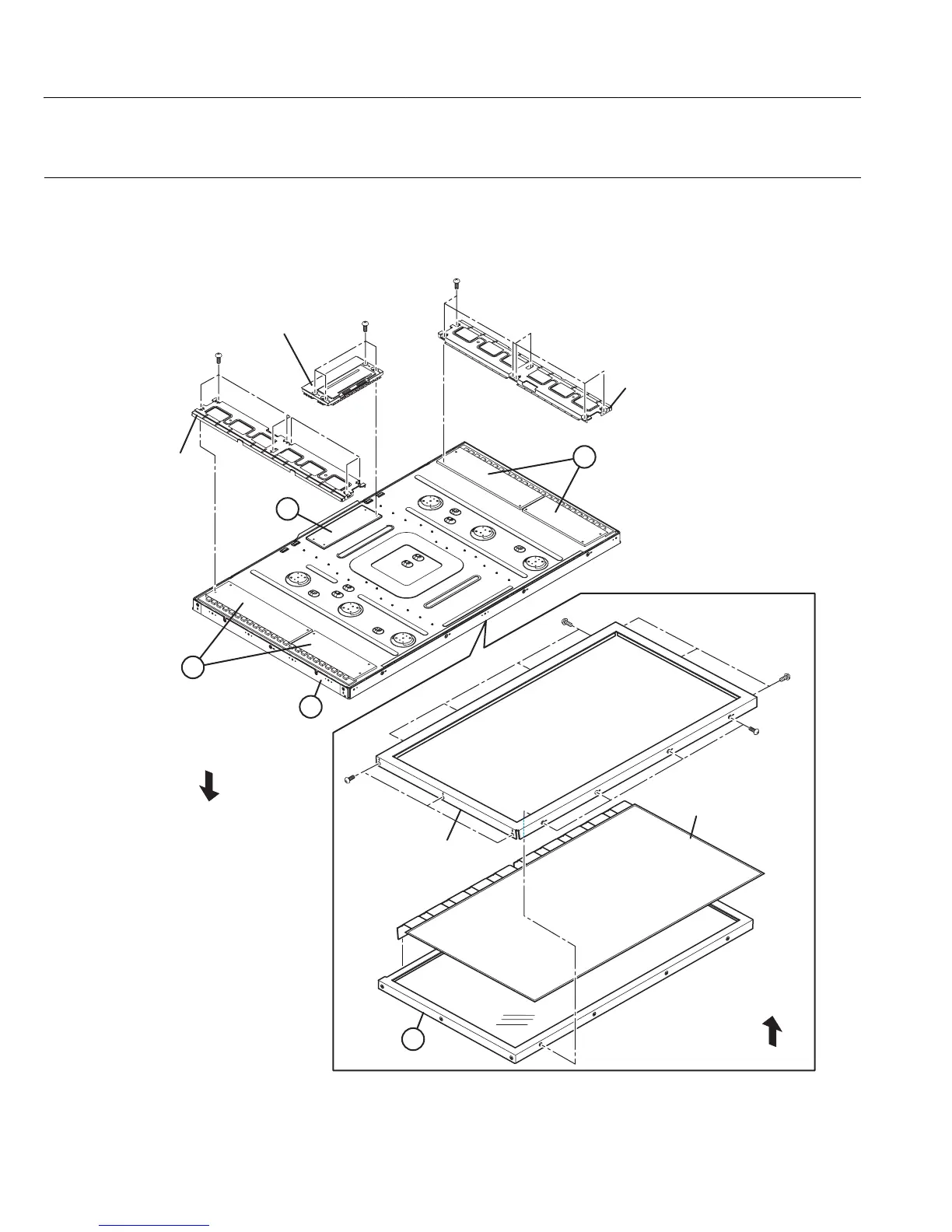

EXPLODED VIEW -2
Ref.No. Part No. Part Name Description Local
3 QLD0539-001-JMT LCD PANEL UNIT LT-52GZ79,LT-52GZ79E,LT-52GZ79S
3 QLD0539-001-JET LCD PANEL UNIT LT-52GZ79BA
3A LJ94-02306G LCD CONTROL PWB
3B QLD0539-INVKIT INVERTER PWB 4pcs in 1set(SERVICE)
3C LJ96-04249A BACK LIGHT UNIT
LCD PANEL
INVERTER PWB COVER
INVERTER PWB
COVER
LCD CONTROL PWB COVER
FRONT
FRONT
PANEL FRAME
3B
3B
3C
3A
3
