3.1.14 Removing the FL board
(See Figs.23 and 24)
• Prior to performing the following procedures, remove the metal
cover and front panel assembly.
(1) From the front side of the front panel assembly, pull the vol-
ume knob out of the front panel assembly. (See Fig.23.)
(2) From the inside of the front panel assembly, remove the six
screws W attaching the FL board. (See Fig.24.)
(3) Release the claws q in the direction of the arrow and take
out the FL board from the front panel assembly. (See
Fig.24.)

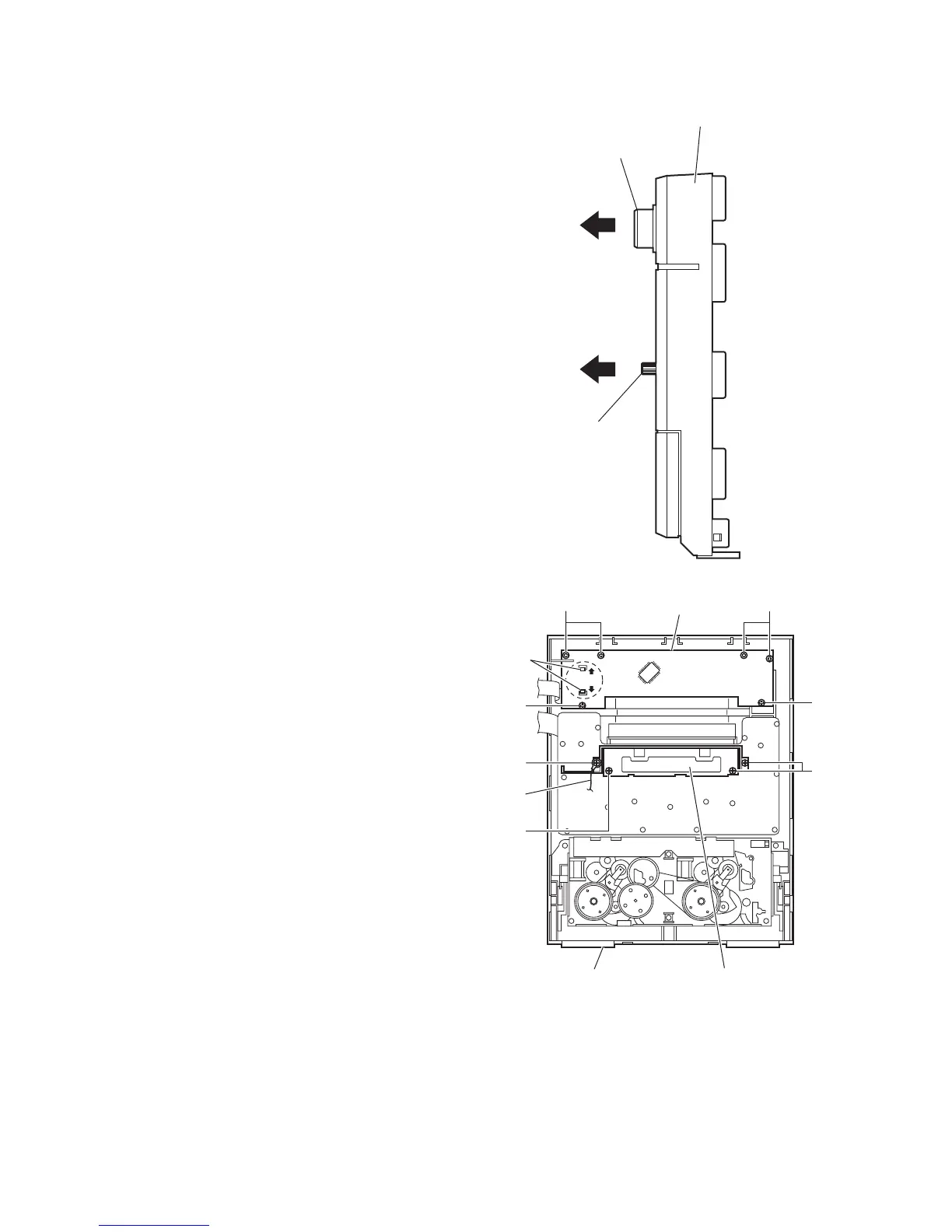

Fig.23
Fig.24
Microphone knob
Volume knob
Front panel assembly
WW
W
X
W
FL board
q
Stay bracketFront panel assembly
X
X'
Earth
wire
