(No.MB263)1-31

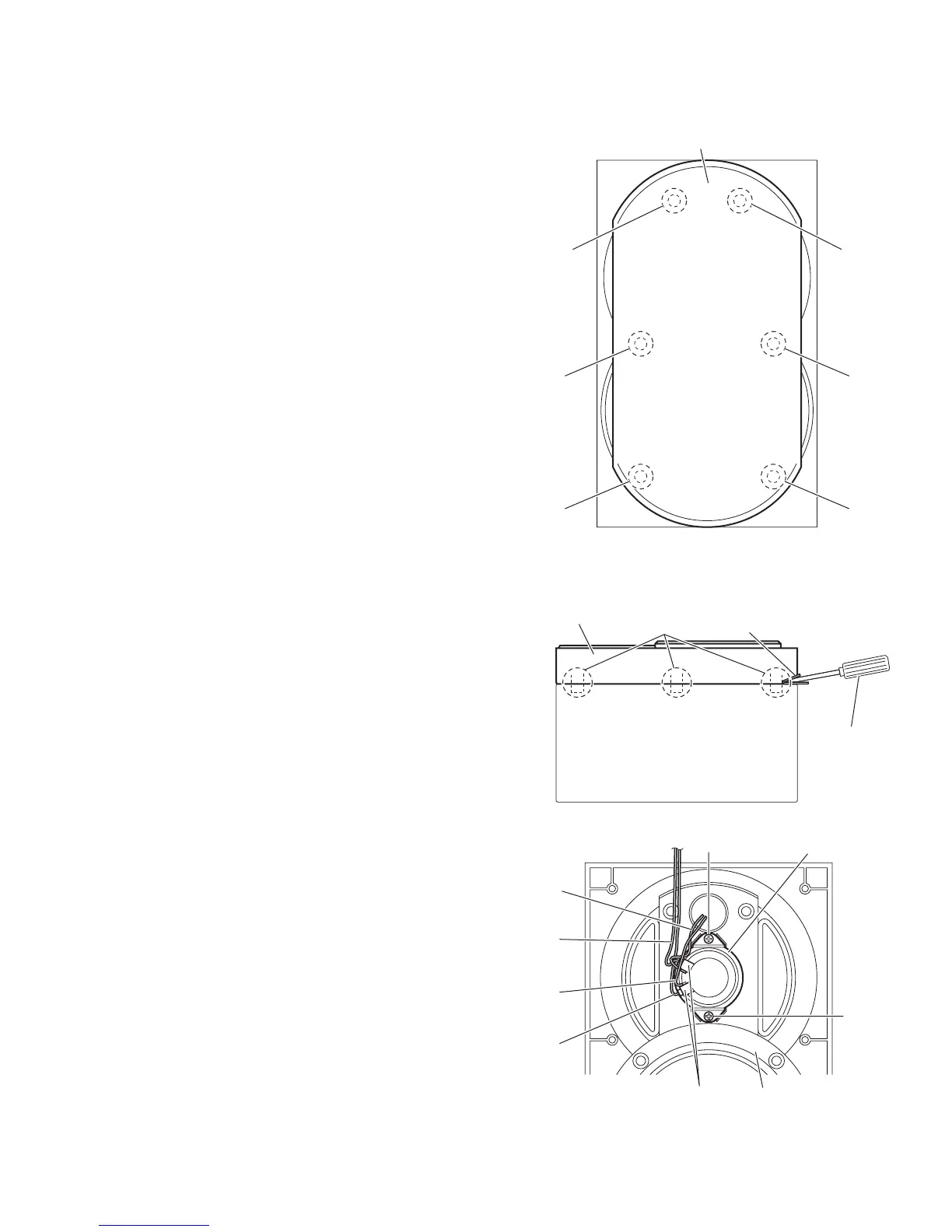

3.5 Speaker section
3.5.1 Removing the net assembly
(See Fig.1)
From the front side of the speaker main body, remove the sec-
tions a of the net assembly toward this side.
Fig.1
3.5.2 Removing the front panel assembly
(See Figs.2 and 3)
• Remove the net assembly as required.
(1) Insert the tip of a flat-bladed screwdriver or similar tool into
the space between the speaker main body and front panel
assembly, and lift the front panel assembly little by little to
remove the sections b. (See Fig.2.)
Note:
To prevent damaging the front panel assembly and
speaker main body, insert cushioning plates etc. into the
space between the speaker main body and front panel
assembly. (See Fig.2.)
(2) From the inside of the front panel assembly, disconnect the
wires (red and black wires) from the terminals of the tweet-
er. (See Fig.3.)
3.5.3 Removing the tweeter
(See Fig.3)
• Prior to performing the following procedures, remove the front
panel assembly .
(1) Disconnect the wires (blue and white wires) from the termi-
nals of the tweeter.
(2) Remove the two screws A attaching the tweeter.
(3) Take out the tweeter from the front panel assembly.
Fig.2
Fig.3
Net assembly
a
a
a
a
aa
b
Front panel assembly
Cushioning
plate, etc.
Flat-bladed
screwdriver,etc.
Wire
(red)
Wire
(white)
Terminals
Wire
(black)
Wire
(blue)
Tweeter
A
A
Front panel assembly
