1-24 (No.MB263)

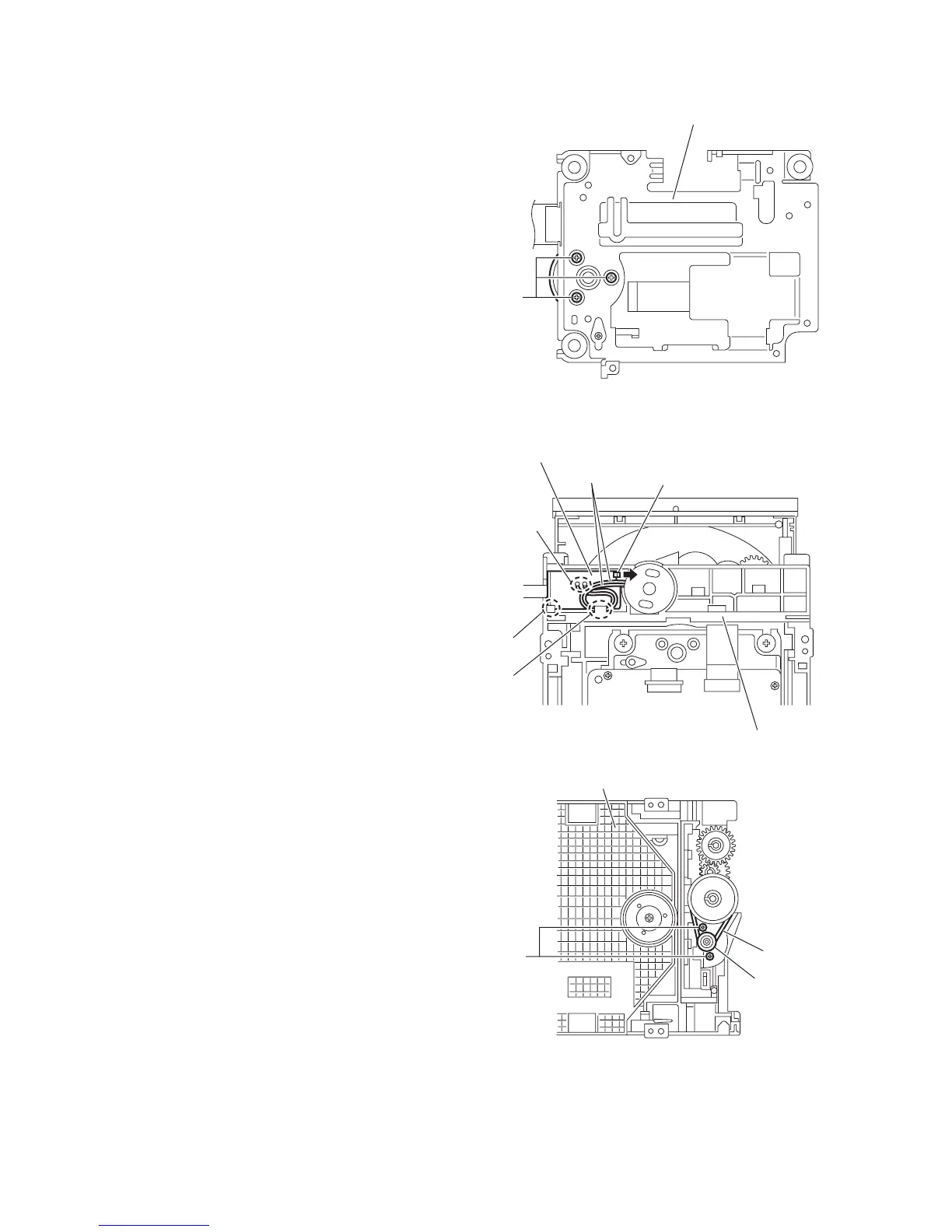

3.2.7 Removing the spindle motor board

(See Figs.11 and 13)

• Remove the traverse mechanism assembly.

• Remove the DVD servo board.

(1) From the top side of the traverse mechanism assembly, re-

move the wires from the soldered section k on the spindle

motor board. (See Fig.11.)

(2) From the bottom side of the traverse mechanism assem-

bly, remove the three screws H attaching the spindle motor

board. (See Fig.13.)

Fig.13

3.2.8 Removing the switch board

(See Fig.14.)

(1) From the bottom side of the DVD mechanism assembly, re-

move the wires from the soldered section n on the switch

board.

(2) Lift the switch board while pressing the claw p of the DVD

mechanism assembly in the direction of the arrow and re-

move it from the section q.

Reference:

• Put the wires on the section r after attaching the switch

board to the DVD mechanism assembly.

• Fix the claw p on the DVD mechanism assembly with bonds

after attaching the switch board.

3.2.9 Removing the motor

(See Figs.14 and 15)

• Remove the tray assembly.

(1) From the bottom side of the DVD mechanism assembly, re-

move the wires from the soldered section n on the switch

board. (See.Fig.14.)

(2) From the top side of the DVD mechanism assembly, re-

move the belt from the motor pulley. (See Fig.15.)

Note:

Take care not to attach grease on the belt.

(3) Remove the two screws J attaching the motor to the DVD

mechanism assembly and take out the motor from the bot-

tom side of the DVD mechanism assembly. (See Fig.15.)

Reference:

Put the wires on the section r after attaching the motor to the

DVD mechanism assembly. (See Fig.14.)

Fig.14

Fig.15

Traverse mechanism assembly

Switch board

Wires

Soldered

section n

Claw p

DVD mechanism assembly

Belt

Motor pulley
