3.4 Subwoofer section
3.4.1 Removing the net assembly
(See Fig.1)
(1) From the front side of the subwoofer main body, remove
the sections a of the net assembly toward this side.

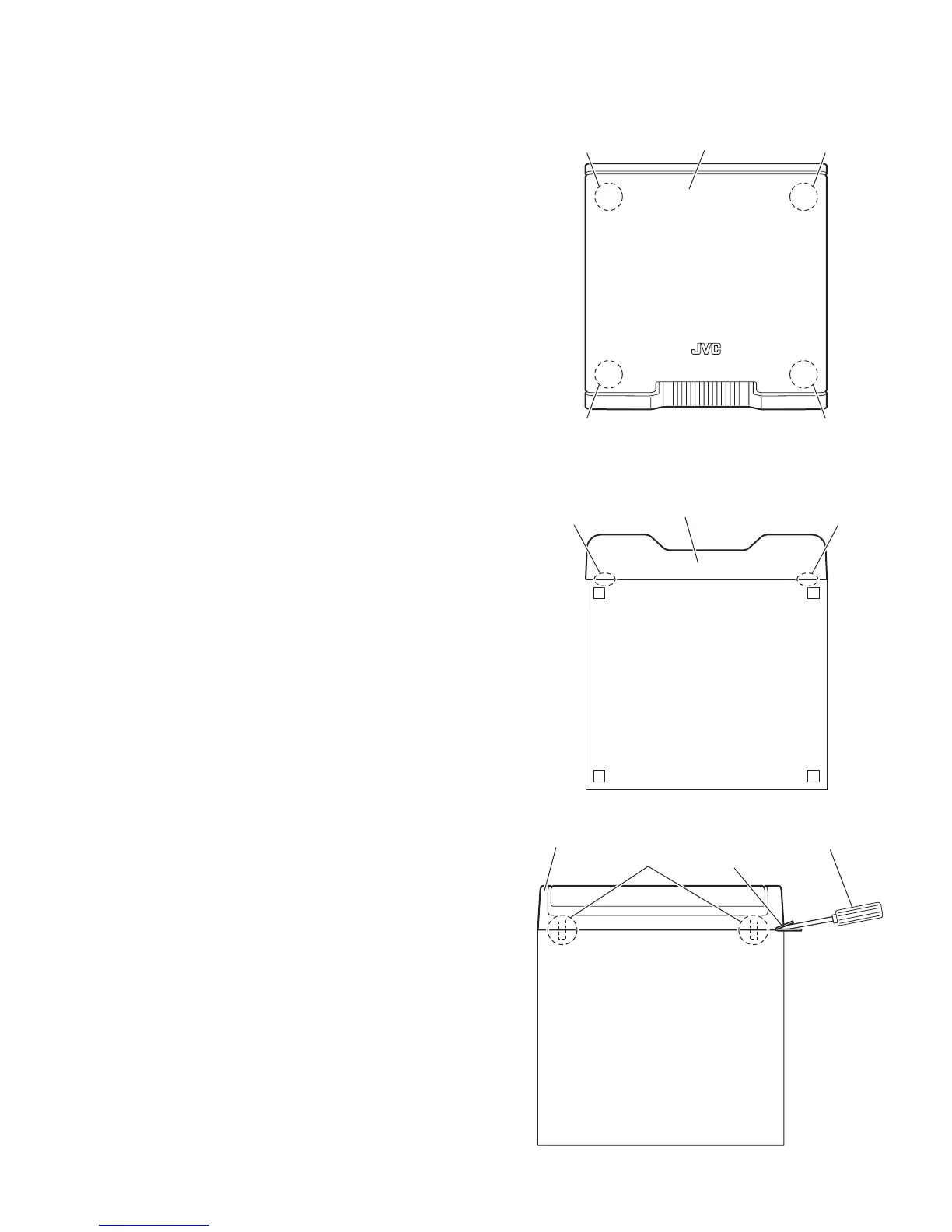

Fig.1
3.4.2 Removing the front panel assembly
(See Figs.2 and 3)
• Remove the net assembly as required.
(1) Insert the tip of a flat-bladed screwdriver or similar tool into
the sections b between the subwoofer main body and front
panel assembly, and lift the front panel assembly little by lit-
tle to remove the sections c. (See Figs.2 and 3.)
Note:
To prevent damaging the front panel assembly and sub-
woofer main body, insert cushioning plates etc. into the
space between the subwoofer main body and front panel
assembly. (See Fig.3.)
(2) Remove the front panel assembly from the subwoofer main
body.
Fig.2
Fig.3
aa
aa
Net assembly
bb
Front panel assembly
c
Front panel assembly
Cushioning
plate, etc.
Flat-bladed
screwdriver, etc.
